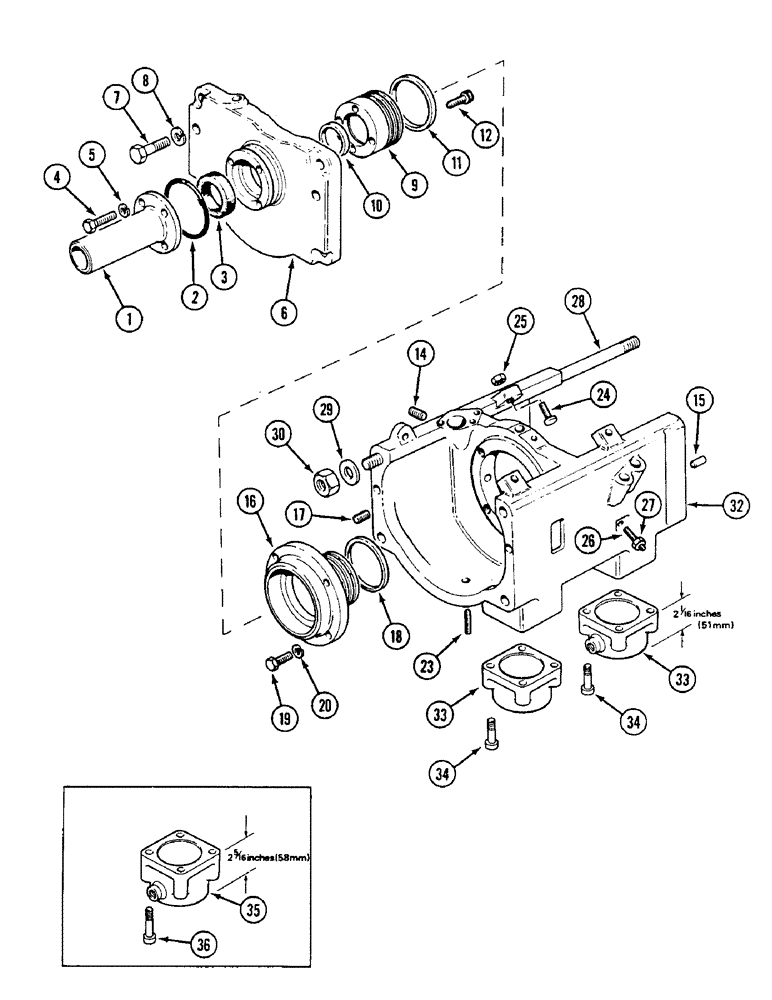

Запчасти Case IH 1494 (6-196) - GEARBOX HOUSING, FRONT, POWER SHIFT (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
K940294
SUPPORT
clutch release bearing
1шт.
2
K623542
O-RING,0.21" Thk x 2.725" ID, -335, Cl 5, 75 Duro
2-3/4 ID x 1/8 inch wide
2шт.
3
K623415
SEAL
oil, 46 x 65 x 10 mm
1шт.
4
413-416
BOLT,Hex, 1/4" - 20 x 1", Gr 5
hex, 1/4 UNC x 1 inch
4шт.
5
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
4шт.
6
K954258
PLATE
end, front
1шт.
7
K943635
STEP BOLT
5/16 UNC x 2 inch
2шт.
8
492-11038
LOCK WASHER,3/8"
2шт.
9
K929301
SUPPORT
SLEEVE support
1шт.
10
K908508
BUSHING
1шт.
11
K917796
RING, PISTON
RING seal
2шт.
12
K606812
SCREW
1/4 inch UNC
4шт.
14
81-3315
SET SCREW,5/16"-18 x 5/16", Slotted
SCREW, 5/16 UNC x 5/16 inch
1шт.
15
K622912
PIN
DOWEL, 3/8 x 7/8 inch
2шт.
16
K929300
HOUSING
1шт.
17
K606200
SCREW
1/4 UNC x 1/4 inch
1шт.
18
K917796
RING, PISTON
RING seal
2шт.
19
413-618
BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5
4шт.
20
492-11038
LOCK WASHER,3/8"
4шт.
23
K929459
SCREW
locating, 5/16 UNF x 1-3/8 inch
2шт.
24
K929460
SCREW,5/16" - 24 x 1 3/8"
locating, 5/16 UNF x 1-3/8 inch
4шт.
25
K617051
NUT
lock, 5/16 inch UNF, order 129-162
4шт.
26
K929458
SCREW
locating, 3/8 UNF x 1-3/4 inch
1шт.
27
425-156
JAM NUT,Jam, 3/8"-24, G5
hex, jam, 3/8 inch UNF
1шт.
28
K608410
STUD
1/2 UNC x 17-5/8 inch
4шт.
29
K19484
LOCK WASHER
WASHER lock, 1/2 inch, order 492-11050
4шт.
30
K607004
NUT
hex, 1/2 inch UNC, order 425-108
4шт.
32
K262065
BUSHING
SPACER, two wheel drive, Replaces: K952310, Includes: Ref. 33 & 34
1шт.
32
K262049
HOUSING
SPACER, MFD, Replaces: K957444, Includes: Ref. 33 & 34
1шт.
33
K262064
BRAKE
CYLINDER AND PISTON brake band, P.I.N. 11192387 and after
2шт.
34
K606841
SCREW
BOLT, 5/16 UNC x 1-3/4 inch, P.I.N. 11192387 and after
8шт.
35
K965766
BRAKE
CYLINDER AND PISTON brake band, prior to P.I.N. 11192387
2шт.
36
K606843
SCREW
BOLT, 5/16 UNC x 2 inch, prior to P.I.N. 11136848
8шт.
Выбрано товаров: 34
