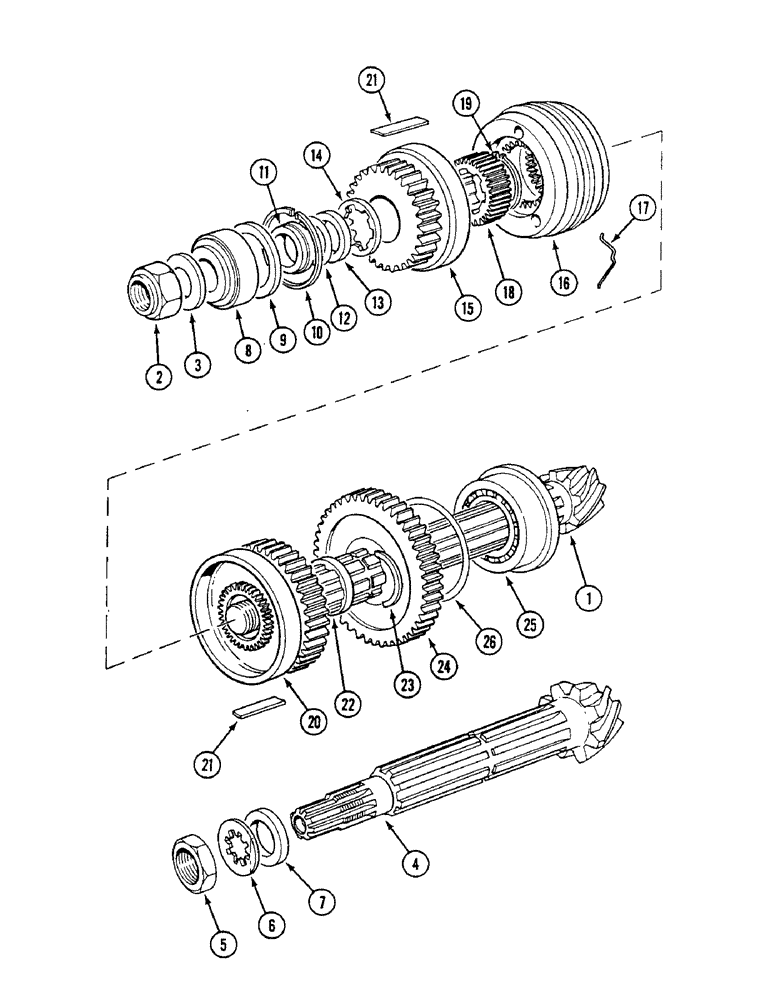

Запчасти Case IH 1494 (6-194) - BEVEL PINION SHAFT, SYNCHROMESH TRACTORS (06) - POWER TRAIN

1

K964873

GEAR-SET

PINION AND SPIRAL GEAR bevel, 7-43 teeth, two wheel drive

1шт.

2

K623317

LOCK NUT

1-1/8 inch BSF, left-hand thread, two wheel drive

1шт.

3

K14687

WASHER

1-1/8 inch, 29 mm, special, two wheel drive

1шт.

4

K965895

BEVEL GEAR

PINION AND SPIRAL GEAR bevel, 7-43 teeth, MFD

1шт.

5

K921817

NUT

1-3/8 Witworth, special, MFD

1шт.

6

K626438

WASHER

tab, pinion, MFD

1шт.

7

K921819

WASHER

1-3/8 inch, 35 mm, special, MFD

1шт.

8

K620061

BEARING, ROLLER

BEARING roller, North America, order A16794 and A16795

1шт.

9

K627253

BUSHING

SPACER bearing

1шт.

10

K17023

CIRCLIP

RING snap, 3 inch

1шт.

11

K917844

BUSHING

SPACER bearing

1шт.

12

K917845

SHIM,35.32mm ID x 50.8mm OD x 0.05mm Thk

0.002 inch, 0.05 mm

1шт.

12

K917846

SHIM

0.005 inch, 0.13 mm

1шт.

12

K917847

SHIM

0.010 inch, 0.25 mm

1шт.

12

K917848

SHIM

0.030 inch, 0.76 mm

1шт.

13

K940969

BUSHING

SPACER, bearing

1шт.

14

K940975

DISC

WASHER, special

1шт.

15

K942816

GEAR

high, 28 teeth

1шт.

16

K207796

GEAR

AND CONES sliding, Replaces: K928223, Includes: Ref. 17

1шт.

17

K926266

SPRING

gear

6шт.

18

K206501

GEAR

dog clutch

2шт.

19

K621865

RING, SNAP

RING snap, 1-3/4 inch 50 mm external, 0.059 thick

1шт.

20

K942817

GEAR

medium, 35 teeth

1шт.

21

K940989

PLATE

PAD bearing

12шт.

22

K948670

WASHER

special

2шт.

23

K945962

PACKING RING

SPLIT RING, halves

2шт.

24

K942461

GEAR

low, 41 teeth

1шт.

25

K620158

TAPERED BEARING

BEARING roller, tapered

1шт.

26

K626983

SHIM,.002" Thk

(0.05 mm) .002" Thk

1шт.

26

K626984

SHIM,.005" Thk

(0.13 mm) .005" Thk

1шт.

26

K626985

SHIM

0.010 inch, 0.25 mm

1шт.

26

K626986

SHIM,.030" Thk

(0.76 mm) .030" Thk

1шт.
