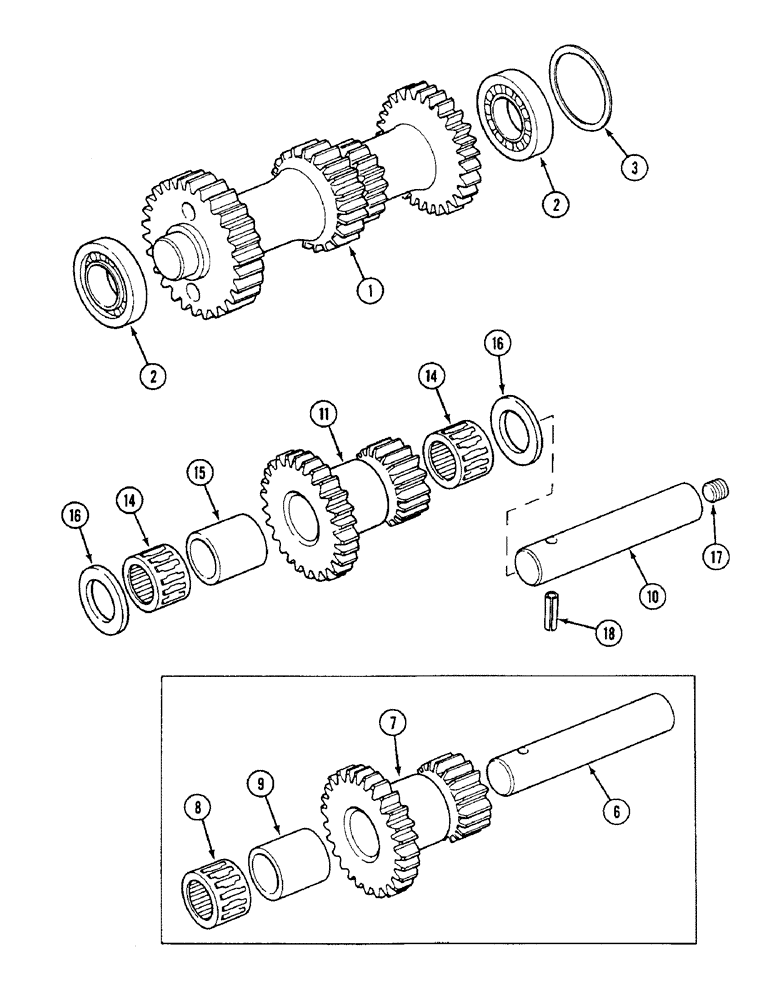

Запчасти Case IH 1494 (6-192) - IDLER SHAFTS AND GEARS, SYNCHROMESH TRACTORS, P.I.N. 11194290 AND AFTER (06) - POWER TRAIN

1

K206938

PINION

SHAFT idler, with integral gears

1шт.

2

K620076

BEARING, ROLLER

BEARING roller

2шт.

3

K914702

SHIM,50.8mm ID x 67.06mm OD x 0.05mm Thk

(0.05 mm) .002" Thk

1шт.

3

K914703

SHIM,.003" Thk

(0.08 mm) .003" Thk

1шт.

3

K914704

SHIM,50.8mm ID x 67.06mm OD x 0.18mm Thk

(0.18 mm) .007" Thk

1шт.

3

K914705

SHIM,50.8mm ID x 67.06mm OD x 0.25mm Thk

(0.25 mm) .010" Thk

1шт.

6

K207628

SHAFT

SPINDLE idler gear, prior to P.I.N. 11194290

1шт.

7

K957514

SHAFT

GEAR idler, prior to P.I.N. 11194290

1шт.

8

K620273

BEARING, NEEDLE,28.57mm ID x 38.1mm OD x 25.02mm W

BEARING roller, needle, 1 inch, 25 mm, prior to P.I.N. 11194290

2шт.

9

K627179

BUSHING

SPACER bearing, 1.93 inch, 49 mm, prior to P.I.N. 11194290

1шт.

10

K207628

SHAFT

SPINDLE idler gear, P.I.N. 11194290 and after

1шт.

11

K957514

SHAFT

GEAR idler, P.I.N. 11194290 and after

1шт.

14

K620276

ROLLER CAGE BEARING

BEARING needle roller, 1.25 inch, 32 mm, P.I.N. 11500626 and after

2шт.

15

K627177

BUSHING

SPACER bearing, 1.43 inch, 36 mm, long, P.I.N. 11500626 and after

1шт.

16

K627478

WASHER

thrust

2шт.

17

K606261

SCREW

PLUG spindle, 7/16 inch UNC

1шт.

18

38-12032

LOCK PIN,5/16" x 2", Slotted

Pin, 5/16" x 2", Slotted

1шт.
