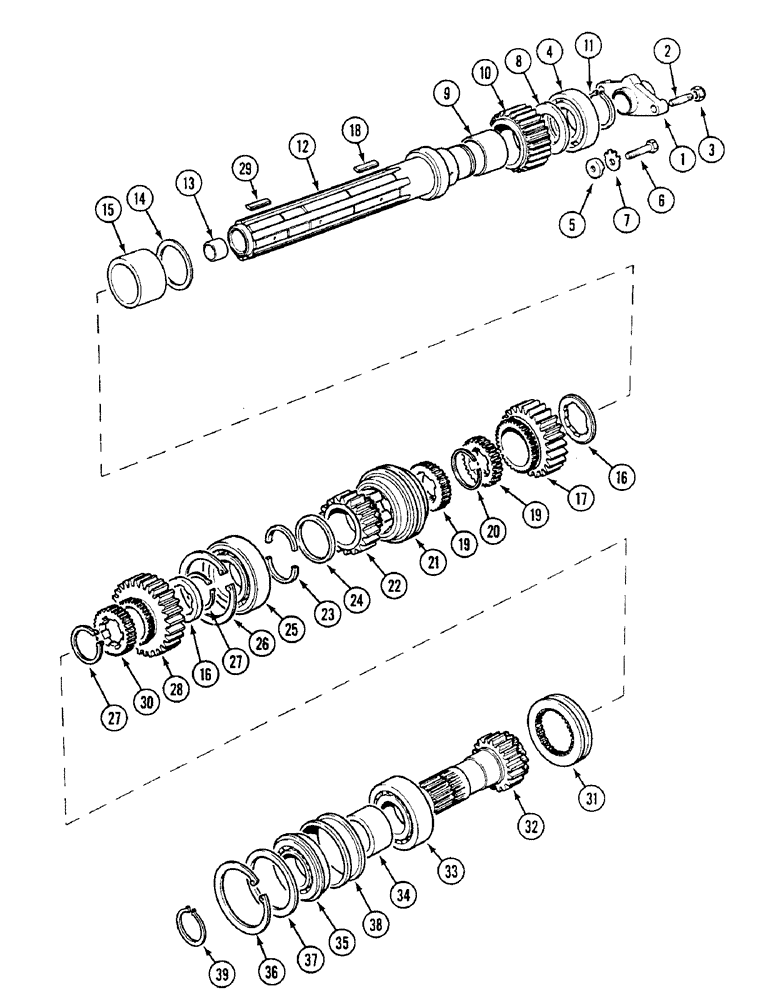

Запчасти Case IH 1494 (6-190) - DRIVESHAFT AND GEARS, SYNCHROMESH TRACTORS, P.I.N. 11194089 AND AFTER (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
K210032
BRACKET
lubrication, bearing
1шт.
2
K608121
STUD
5/16 UNC x 1-7/8 inch
2шт.
3
231-1445
NUT,5/16"-18, GB
NUT - self-locking, 5/16 inch UNC
2шт.
5
K910447
WASHER
retaining
1шт.
6
K600005
BOLT
1/4 UNC x 1-3/8 inch
1шт.
7
K33127
WASHER
tab, , bolt
1шт.
8
K908940
WASHER
thrust
1шт.
9
K621376
BUSHING
gear
1шт.
10
K963566
GEAR
ASSEMBLY reverse, 22 teeth
1шт.
11
100-11175
SNAP RING,#175, Ext
Ring, Snap, #175, Ext
1шт.
12
K200508
SHAFT ASSY.
DRIVESHAFT Synchromesh
1шт.
13
K210031
BUSHING
driveshaft
1шт.
14
K626241
SHIM,.020" Thk
(0.52 mm) .020" Thk
1шт.
15
K627244
BUSHING
SPACER driveshaft
1шт.
16
K940975
DISC
WASHER splined
2шт.
17
K206937
GEAR
high range, 26 teeth
1шт.
18
K940989
PLATE
PAD bearing
12шт.
19
K206501
GEAR
dog clutch
2шт.
20
K621865
RING, SNAP
RING snap, 50 mm external
1шт.
21
K943613
CLUTCH
GEAR sliding, high-low
1шт.
22
K205681
GEAR
low speed, 18 teeth
1шт.
23
K954302
RING
split
2шт.
24
K954303
RING
keeper
1шт.
25
K12311
BEARING, ROLLER, CYL
BEARING roller
1шт.
26
K12236
RING, SNAP
RING snap, 4 inch, 102 mm, internal
1шт.
27
100-11175
SNAP RING,#175, Ext
Ring, Snap, #175, Ext
2шт.
28
K954305
GEAR
28 teeth
1шт.
29
K940989
PLATE
PAD bearing
6шт.
30
K946234
GEAR
CLUTCH dog, fixed
1шт.
31
K943644
SYNCHRO RING
CLUTCH dog, sliding, slow-normal
1шт.
32
K210457
GEAR
drive, 18 teeth
1шт.
33
K12275
BEARING, ROLLER, CYL
BEARING roller
1шт.
34
K627588
SPACER
driving gear
1шт.
35
ST243
BEARING, BALL,45 mm ID x 85 mm OD x 19 mm
BEARING ball
1шт.
36
K621484
RING, SNAP
RING snap, 3-5/8 inch, 92 mm, internal
1шт.
37
K949218
BUSHING
WASHER bearing
1шт.
38
K627304
BUSHING
SPACER bearing
1шт.
39
100-11175
SNAP RING,#175, Ext
Ring, Snap, #175, Ext
1шт.
Выбрано товаров: 39
