Запчасти Case IH 1494 (6-188) - PLANETARY REDUCTION GEARS, SYNCHROMESH TRACTORS WITH CREEPER GEAR (06) - POWER TRAIN

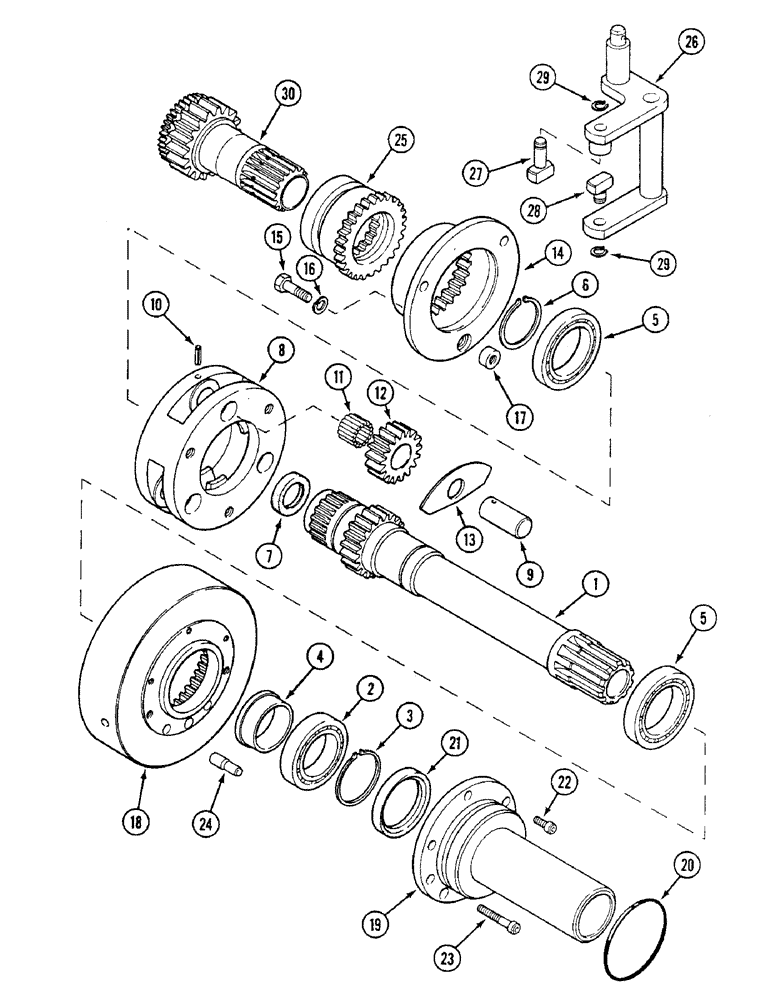

Схема запчастей Case IH 1494 - (6-188) - PLANETARY REDUCTION GEARS, SYNCHROMESH TRACTORS WITH CREEPER GEAR (06) - POWER TRAIN
27
4
8
1
2
26
30
19
16
22
7
25
17
20
14
23
10
24
3
15
5
29
21
9
6
28
5
13
11
12
29
18

Артикул

Название

Примечание

Количество

1

K395003

SHAFT

clutch drive

1шт.

2

K395004

BEARING

ball

1шт.

3

A48041

CIRCLIP,41.5mm ID x 2.5mm Thk

RING snap, 45 mm

1шт.

4

K395079

BUSHING

SPACER driveshaft

1шт.

5

G10418

BEARING, BALL

BEARING ball

2шт.

6

800-1150

SNAP RING,M50, Ext

RING snap

1шт.

7

K395073

SEAL

oil, driveshaft, 28 x 40 x 7 mm

1шт.

8

K395080

CARRIER

planet gears

1шт.

9

K395066

GEAR

SPINDLE planet gear

3шт.

10

K395054

PIN

roll, 4 x 18 mm

3шт.

11

118333A1

10 NEEDLE BRG KIT

ROLLER needle

72шт.

12

K395069

GEAR

planet

3шт.

13

K395068

WASHER

thrust

6шт.

14

K395070

SPLINED COUPLING

FLANGE planet carrier

1шт.

15

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Full Thd Hex, M10 x 30, 8.8

3шт.

16

892-11010

LOCK WASHER,M10

3шт.

17

K965384

RING

DOWEL ring

1шт.

18

K395081

GEAR

annulus

1шт.

19

K210107

SUPPORT

clutch release bearing

1шт.

20

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

21

K623430

OIL SEAL

oil, 45 x 65 x 8 mm

1шт.

22

461-32510

HEX SOC SCREW,1/4"-20 x 5/8"

BOLT hex socket head, 1/4 UNC x 5/8 inch

3шт.

23

K606559

SCREW

BOLT, 5/16 UNC x 1-5/8 inch

2шт.

23

461-33116

HEX SOC SCREW,5/16"-18 x 1"

BOLT socket head, 5/16 x 1 inch

1шт.

24

K657331

PIN

DOWEL main frame

1шт.

25

K395071

GEAR

CLUTCH dog, sliding

1шт.

26

K309661

SELECTOR

FORK selector

1шт.

27

K310163

PIN

trunnion

1шт.

28

K310164

PIN

trunnion

1шт.

29

800-1110

SNAP RING,M10, Ext

RING, SNAP, M10, Ext

2шт.

30

K210457

GEAR

drive, gearbox

1шт.

Выбрано товаров: 31
