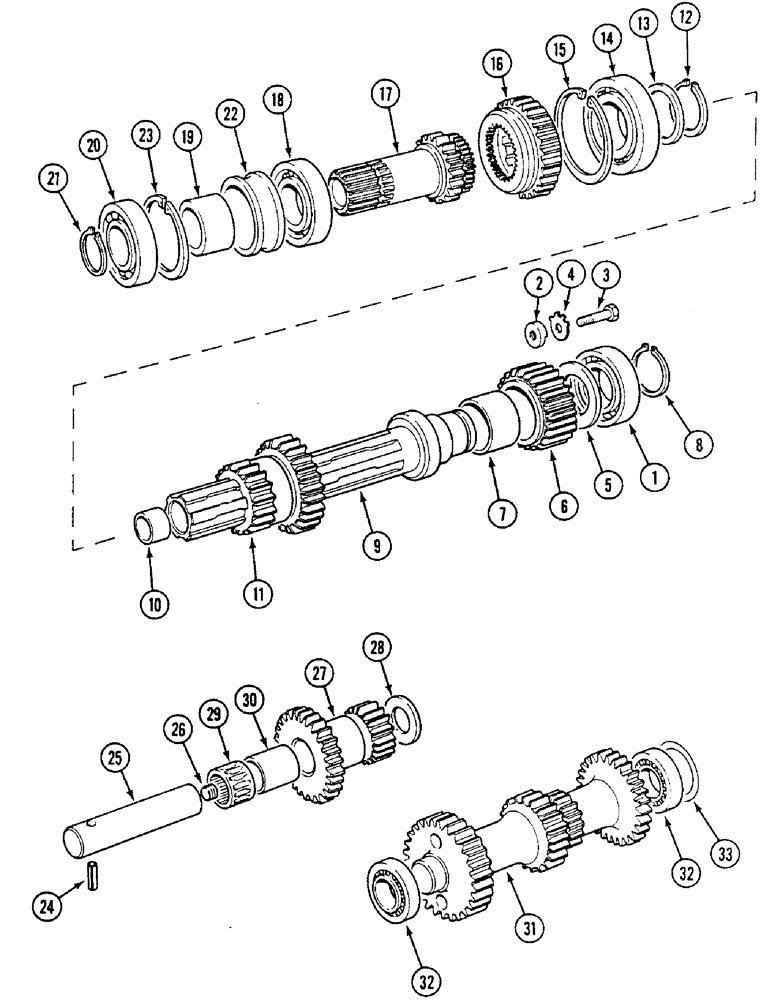

Запчасти Case IH 1494 (6-186) - GEARBOX DRIVESHAFT AND LAYSHAFTS, SYNCHROMESH TRACTORS, PRIOR TO P.I.N. 11194089 (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
2
K910447
WASHER
retaining
1шт.
3
K600005
BOLT
1/4 UNC x 1-3/8 inch
1шт.
4
K33127
WASHER
tab
1шт.
5
K908940
WASHER
thrust
1шт.
6
K963566
GEAR
reverse, Includes: Ref. 7
1шт.
7
K621376
BUSHING
1шт.
8
100-11175
SNAP RING,#175, Ext
Ring, Snap, #175, Ext
1шт.
9
K205737
SHAFT
drive
1шт.
10
K24774
BUSHING
1шт.
11
K205611
GEAR
PINION, range, 18-26 teeth
1шт.
12
K621865
RING, SNAP
RING snap, 50 mm external
1шт.
13
K942829
BUSHING
SPACER
1шт.
14
K12311
BEARING, ROLLER, CYL
BEARING roller
1шт.
15
K12236
RING, SNAP
RING snap, 4 inch, 102 mm Internal
1шт.
16
K942464
GEAR
driven, 28 teeth
1шт.
17
K942462
GEAR
driven, 18 teeth
1шт.
18
K12275
BEARING, ROLLER, CYL
BEARING roller
1шт.
19
K627588
SPACER
1шт.
21
100-11175
SNAP RING,#175, Ext
Ring, Snap, #175, Ext
1шт.
22
K627302
BUSHING
SPACER
1шт.
23
K11481
RING, SNAP
RING snap, 85 mm
2шт.
24
38-12032
LOCK PIN,5/16" x 2", Slotted
Pin, 5/16" x 2", Slotted
1шт.
25
K207628
SHAFT
SPINDLE idler gear
1шт.
26
K606261
SCREW
PLUG spindle, 7/16 inch UNC
1шт.
27
K942463
SHAFT
LAYSHAFT auxiliary reduction
1шт.
28
K627478
WASHER
thrust
2шт.
29
K620273
BEARING, NEEDLE,28.57mm ID x 38.1mm OD x 25.02mm W
BEARING roller, needle
2шт.
30
K627179
BUSHING
SPACER
1шт.
31
K942460
SHAFT
LAYSHAFT, with integral gears
1шт.
32
K620076
BEARING, ROLLER
BEARING roller, North America, order B12408 and B1240
2шт.
33
K914702
SHIM,50.8mm ID x 67.06mm OD x 0.05mm Thk
(0.05 mm) .002" Thk
1шт.
33
K914703
SHIM,.003" Thk
(0.08 mm) .003" Thk
1шт.
33
K914704
SHIM,50.8mm ID x 67.06mm OD x 0.18mm Thk
(0.18 mm) .007" Thk
1шт.
33
K914705
SHIM,50.8mm ID x 67.06mm OD x 0.25mm Thk
(0.25 mm) .010" Thk
1шт.
Выбрано товаров: 36
