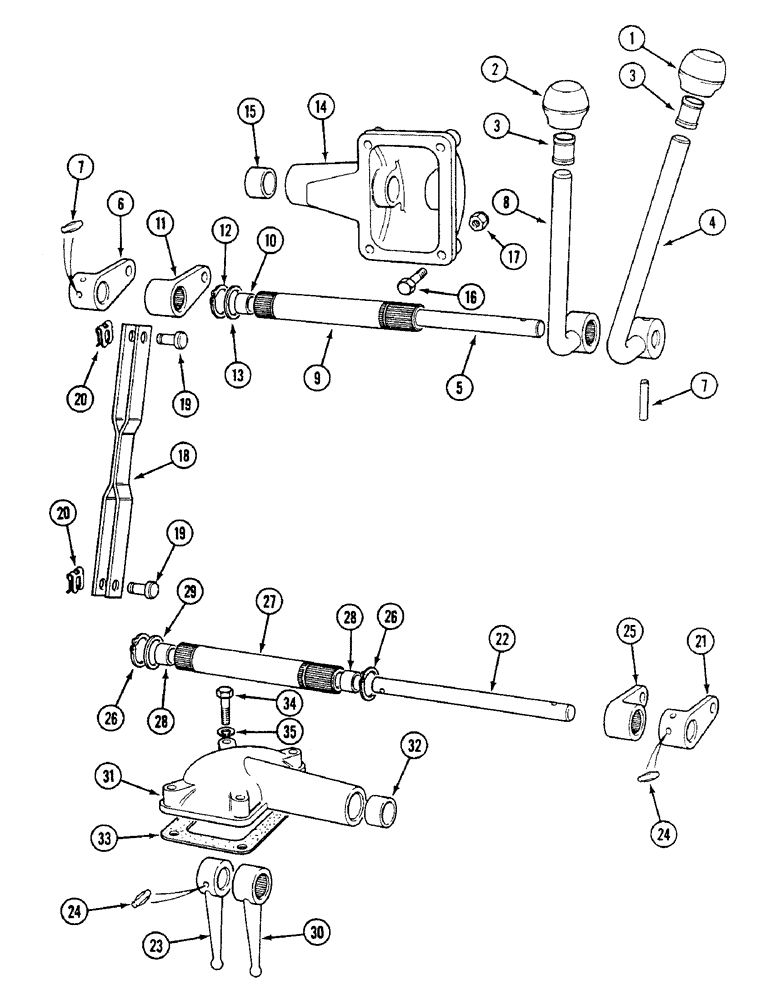

Запчасти Case IH 1494 (6-182) - RANGE SHIFT LEVERS, SYNCHROMESH TRACTORS WITH CAB (06) - POWER TRAIN

1

K206712

KNOB

lever, high-low

1шт.

2

K207408

KNOB

lever, slow-normal

1шт.

3

K628472

RING

retaining

2шт.

4

K204886

LEVER

hand, high-low

1шт.

5

K204893

SHAFT

SPINDLE lever

1шт.

6

K204881

LEVER

spindle

1шт.

7

K623726

PIN

groove, 1/4 x 1-1/2 inch

2шт.

8

K204889

LEVER

hand, slow-normal

1шт.

9

K204892

SHAFT

hand lever

1шт.

10

K621303

BUSHING

shaft

2шт.

11

K204880

LEVER

actuating

1шт.

12

K11128

CIRCLIP

RING snap, 1 inch, 25 mm, external

2шт.

13

K950002

BUSHING

WASHER, 1 inch, 25 mm

1шт.

14

K950000

HOUSING

lever

1шт.

15

K628750

BUSHING

housing

1шт.

16

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

4шт.

17

131-39

NUT,1"-14

NUT thin hex, self locking, 1-14 inch

4шт.

18

K305574

ROD

connecting

2шт.

19

K625934

PIN

clevis, 3/8 x 3/4 inch

4шт.

20

K625041

CLIP

retaining

4шт.

21

K204881

LEVER

spindle

1шт.

22

K204893

SHAFT

SPINDLE lever

1шт.

23

K206371

BRACKET

LEVER selector, slow-normal

1шт.

24

38-31624

ROLL PIN,1/4" x 1 1/2", Coiled

PIN, ROLL, 1/4" x 1 1/2", Coiled

2шт.

25

K204880

LEVER

selector shaft

1шт.

26

K11128

CIRCLIP

RING snap, 1 inch, 25 mm, external

2шт.

27

K204892

SHAFT

hand lever

1шт.

28

K621303

BUSHING

, Serial Range: shaft-tube

2шт.

29

K950002

BUSHING

WASHER, 1 inch, 25 mm

1шт.

30

K206370

BRACKET

LEVER selector

1шт.

31

K950000

HOUSING

HOUSIN lever

1шт.

32

K628750

BUSHING

housing

1шт.

33

K950543

GASKET,0.2mm Thk

housing

2шт.

34

K600205

BOLT

5/16 UNC x 1-1/2 inch

4шт.

35

K19481

SPRING WASHER

WASHER lock, 5/16 inch

4шт.
