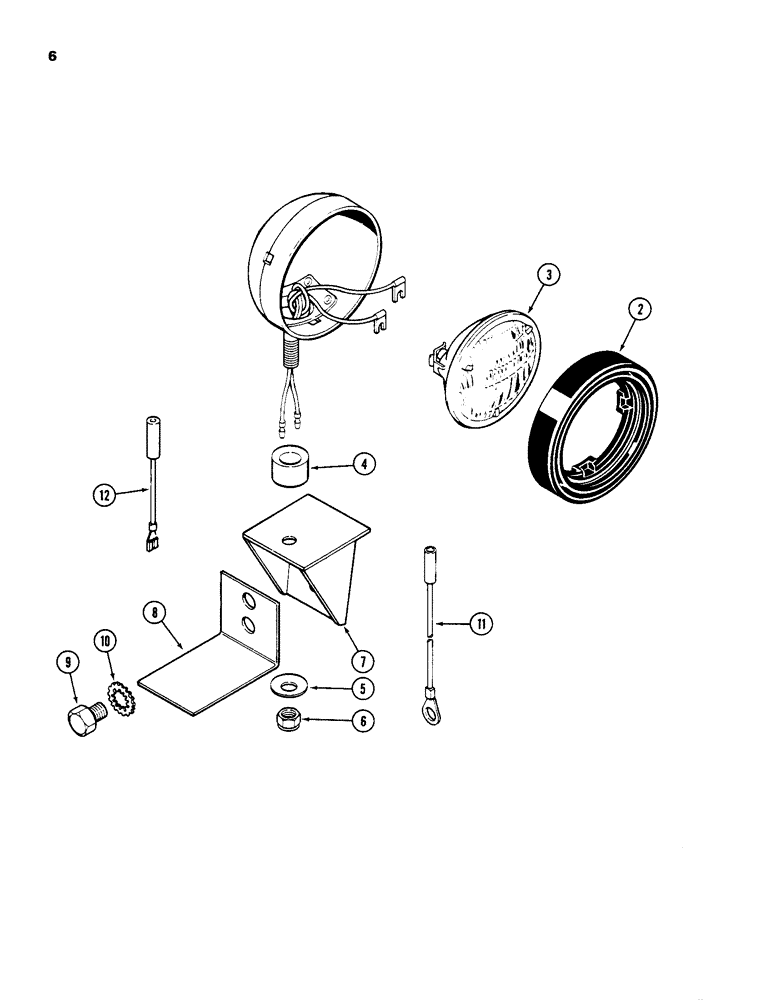

Запчасти Case IH 1490 (06) - FRONT FLOOD LAMP ATTACHMENT, 1490 AND 1690 TRACTORS WITH CAB (04) - ELECTRICAL SYSTEMS

A161898

X

ATTACHMENT front flood lamp, Includes Ref. 2 - 12

1шт.

A145495

LAMP

ASSEMBLY, Includes Ref. 2, 3 and 4

2шт.

2

A25213

RETAINER

bulb

1шт.

3

A47179

BULB

sealed beam, no. H7606

1шт.

4

D37048

BUSHING

pivot

1шт.

5

D37049

WASHER

mounting

2шт.

6

129-125

NUT,1/2"-20, G5

2шт.

7

A149102

BRACKET

mounting

2шт.

8

A149792

GUARD

SHIELD flood lamp

2шт.

9

113-433

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

2шт.

10

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

2шт.

11

A147344

ELECTRICAL WIRE

WIRE ground

2шт.

12

A160351

ELECTRICAL WIRE

WIRE adapter

2шт.
