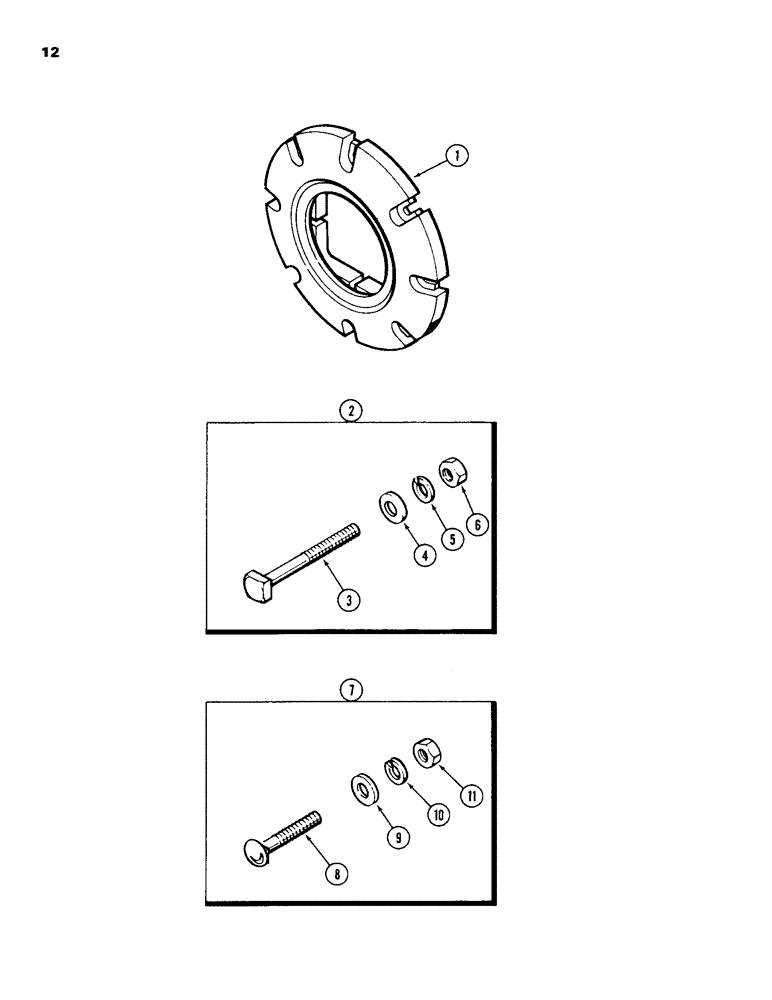

Запчасти Case IH 1490 (12) - REAR WHEEL WEIGHTS (06) - POWER TRAIN

1

A33178

WEIGHT

outside of wheel, 140 lb (63.5 kg)

1шт.

2

A67485

PACKAGE hardware, first outside weight, set of 2, machinery item, Includes Ref. 3 - 6

1шт.

3

117-509

BOLT,Sq Hd, 5/8" - 11 x 6-1/4", Gr 5

5/8 x 6-1/4" NC, square head, grade 5

8шт.

4

95-10

WASHER,5/8"

1-3/4 x 11/16 x 9/64"

8шт.

5

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

6

25-1010

NUT,5/8"-11, G5

8шт.

7

A62577

PACKAGE

hardware, each add on weight, set of 2, machinery item, Includes Ref. 8 - 11

1шт.

8

411-1064

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 4", Gr 2

BOLT, 5/8 x 4" NC, round head, square neck, grade 2

8шт.

9

95-10

WASHER,5/8"

1-3/4 x 11/16 x 9/64

8шт.

10

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

11

25-1010

NUT,5/8"-11, G5

8шт.
