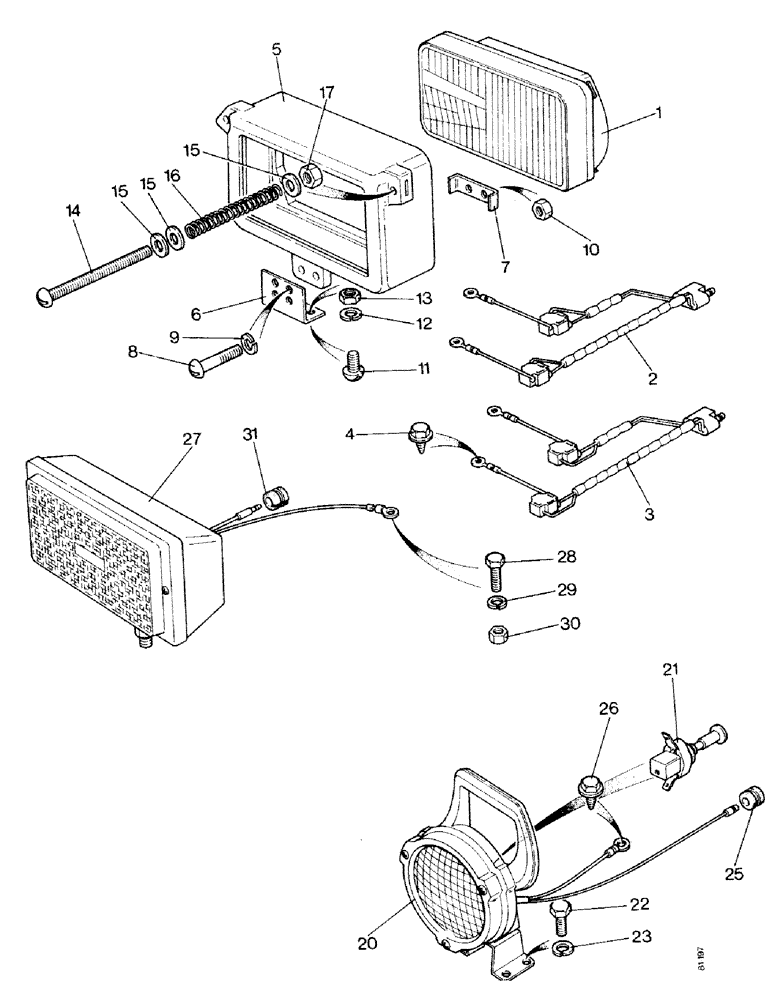

Запчасти Case IH 1490 (S10-1) - HEADLAMPS AND REAR FLOODLAMPS, LOW PROFILE, HIGH PLATFORM (06) - ELECTRICAL SYSTEMS

1

K300280

BEAM

HEADLAMP - sealed beam, vertical dip

2шт.

2

K300731

HARNESS

- headlamps

1шт.

3

K300749

HARNESS

- sealed beam headlamps

1шт.

4

K624532

SCREW

- no. 14 x 1/2", self-tapping

2шт.

5

K300758

BRACKET

HOUSING - inboard headlamps

2шт.

6

K300762

BRACKET

SUPPORT BRACKET

2шт.

7

K300763

CLAMP

2шт.

8

K652466

SCREW

- M5 x 25

4шт.

9

K651846

WASHER, LOCK

WASHER - lock, 5 mm

4шт.

10

K651525

NUT

- M5

4шт.

11

K652464

SCREW

- M5 x 16

4шт.

12

K651846

WASHER, LOCK

WASHER - lock, 5 mm

4шт.

13

K651525

NUT

- M5

4шт.

14

K605643

SCREW,Pan, #10 - 24 x 2 1/2"

ADJUSTING SCREW - no. 10 UNC x 2-1/2"

4шт.

15

K651776

WASHER

- 5 mm

12шт.

16

K625093

SPRING

4шт.

17

K607478

NUT

- no. 10 UNF

4шт.

20

K301230

LAMP

REAR FLOODLAMP (Low Profile), Includes: Ref. 21

1шт.

21

K260380

SWITCH

- rear flood lamp (Low Profile)

1шт.

22

K650641

SCREW

BOLT - M8 x 16 (Low Profile)

4шт.

23

K651848

WASHER

- lock, 8 mm (Low Profile)

4шт.

25

K627705

GROMMET

- fender (Low Profile)

1шт.

26

K624532

SCREW

- self-tapping, no. 14 x 1/2", earth lead (Low Profile)

1шт.

27

K302373

LAMP, WORK

FLOODLAMP (High Platform)

2шт.

28

K613146

SCREW

- 1/4 UNF x 1/2" (High Platform)

2шт.

29

K626341

SPRING WASHER

WASHER - lock, 1/4" (High Platform)

2шт.

30

K616980

NUT

- 1/4 UNF (High Platform)

2шт.

31

K627773

GROMMET

(High Platform)

2шт.
