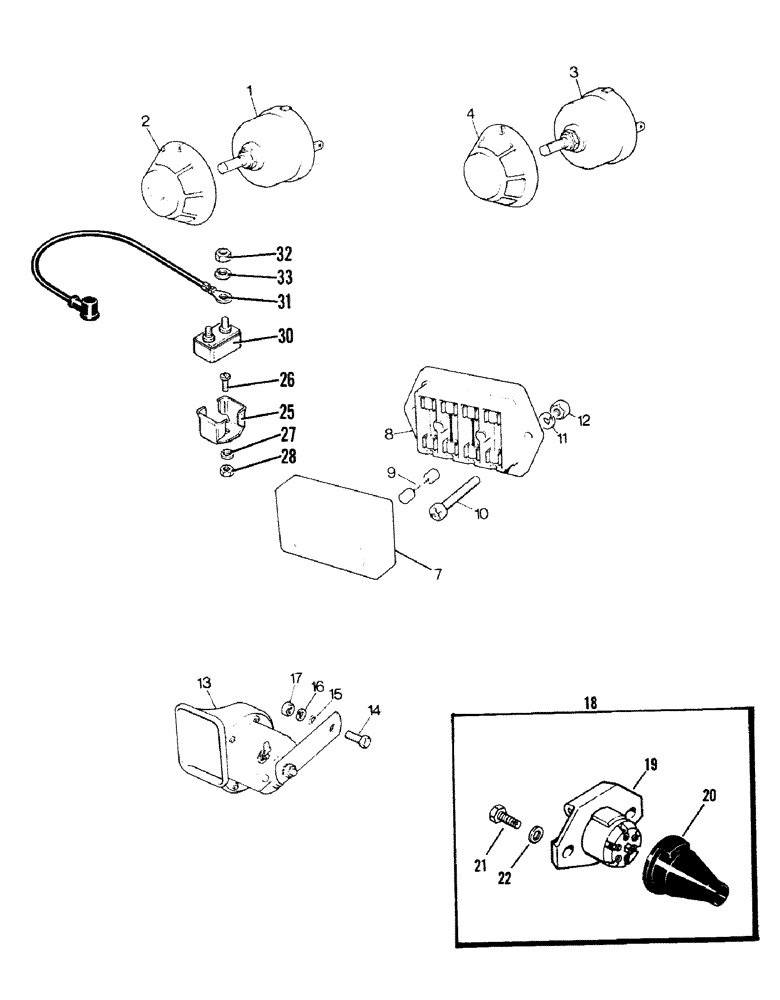

Запчасти Case IH 1490 (S09-1) - SWITCHES, FUSE BOX, HORN, AND TRAILER SOCKET, LOW PROFILE, HIGH PLATFORM (06) - ELECTRICAL SYSTEMS

1

K300657

SWITCH

- lights and horn (Lucas 54349813)

1шт.

2

K300792

KNOB

- lights and horn switch

1шт.

3

K302399

SWITCH

- rear floodlamps (High Platform), Includes: Ref. 4

1шт.

4

K302400

KNOB

- floodlamp switch (High Platform)

1шт.

7

K261009

COVER

- fuse box

1шт.

8

K950625

BOX, FUSE

FUSE BOX - electrical

1шт.

9

K947431

FUSE

- 35 amp

3шт.

9

K904459

FUSE

- 25 amp

2шт.

9

K951395

FUSE

- 15 amp

1шт.

10

K614945

SCREW

- no. 10 UNF x 5/8"

2шт.

11

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

12

K617080

NUT

- no. 10 UNF

2шт.

13

K950098

HORN

- sounding

1шт.

14

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

SETSCREW - 1/4 UNC x 5/8"

1шт.

15

193-60

LOCK WASHER,Int Tooth, 1/4"

WASHER, LOCK, Int Tooth, 1/4"

1шт.

16

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

17

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

18

A67470

KIT

- auxiliary outlet, Includes: Ref. 19 - 22

1шт.

19

A145795

CONNECTOR, ELEC

CONNECTOR - 7 point (Female)

1шт.

20

A145796

COVER

- rubber, connector

1шт.

21

187-1030

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 3/4"

BOLT - 5/16 x 3/4" hex self tap

2шт.

22

195-521

WASHER,5/16", SAE

- 11/32 x 11/16 x 1/16" (8.73 x 17.462 x 1.588 mm)

2шт.

25

K304457

CLIP

- circuit breaker, Start Serial: 111185693

1шт.

26

K652463

SCREW

- M5 x 12

1шт.

27

K651846

WASHER, LOCK

WASHER - lock, 5 mm

1шт.

28

825-1105

NUT,M5, Cl 8

- M5 hex

1шт.

30

K304903

CIRCUIT-BREAKER

BREAKER - circuit, 30 amperes (High Platform), Start Serial: 111185693

1шт.

K304903, 30 AMP circuit breaker is installed on the low profile tractors. The 40 AMP circuit breaker is installed on the cab and high platform model.

1шт.

30

K304904

BREAKER

- circuit, 40 amperes (High Platform), Start Serial: 111185693

1шт.

31

K304900

ELECTRICAL WIRE

WIRE - lead, starter to circuit breaker (Low Profile), Start Serial: 111185693

1шт.

31

K304806

ELECTRICAL WIRE

WIRE - lead, starter to circuit breaker (High Platform), Start Serial: 111185693

1шт.

32

K617080

NUT

- #10 NF hex

1шт.

33

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.
