(S07-1) - K957340 STARTER, LUCAS 2M113

Запчасти Case IH 1490 (S07-1) - K957340 STARTER, LUCAS 2M113 (06) - ELECTRICAL SYSTEMS

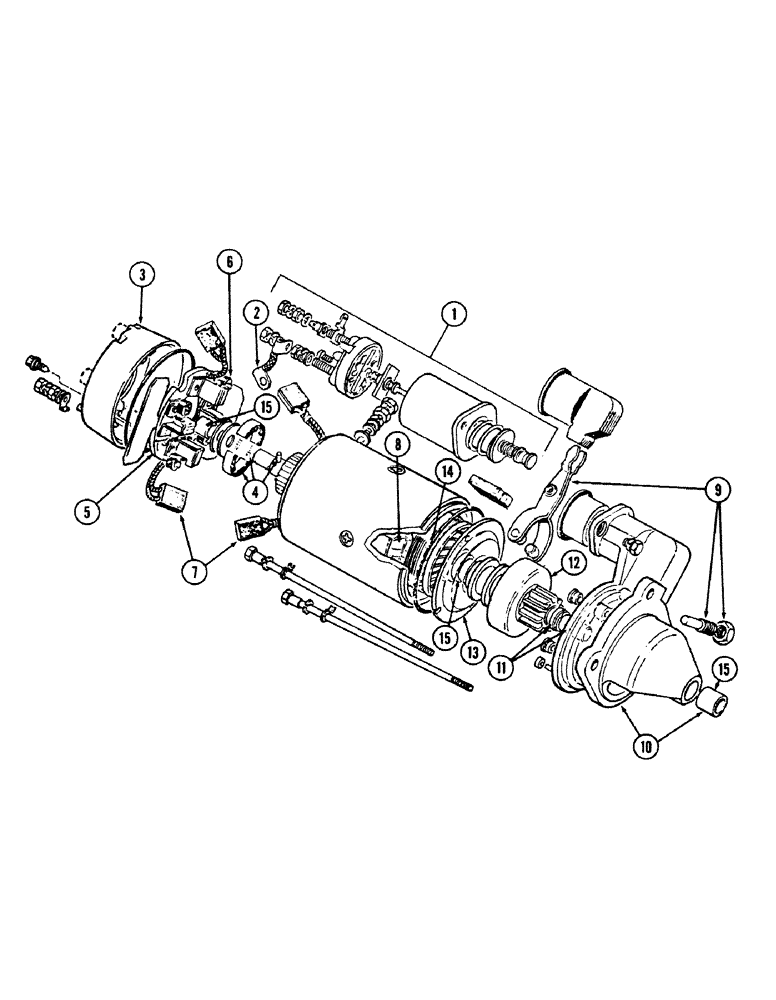

Схема запчастей Case IH 1490 - (S07-1) - K957340 STARTER, LUCAS 2M113 (06) - ELECTRICAL SYSTEMS
14
11
7
3
15
15
9
8
1
6
12
13
4
5
15
10
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A48240

SOLENOID

1шт.

2

A48241

LINK

- solenoid

1шт.

3

A48236

BRACKET

ASSEMBLY - commutator end

1шт.

4

K963857

BRAKE

KIT

1шт.

NSS

NOT SOLD SEPARAT

SHOE - brake

2шт.

NSS

NOT SOLD SEPARAT

SPRING - brake

2шт.

NSS

NOT SOLD SEPARAT

PIN - brake

1шт.

5

A48237

PLATE

ASSEMBLY - brush mounting, Includes: Ref. 6

1шт.

6

K963798

SPRING

S - brush (Set of 4)

1шт.

7

K962799

BRUSH, COMMUTATOR

KIT - brush (Set of 4)

1шт.

8

A48238

COIL

FIELD COIL ASSEMBLY

1шт.

9

H662718

KIT

- solenoid link

1шт.

NSS

NOT SOLD SEPARAT

LINK - solenoid

1шт.

NSS

NOT SOLD SEPARAT

PIN - pivot

1шт.

NSS

NOT SOLD SEPARAT

NUT - lock, pivot pin

1шт.

10

NSS

NOT SOLD SEPARAT

BRACKET ASSEMBLY - drive end

1шт.

11

A48239

KIT

- retention

1шт.

NSS

NOT SOLD SEPARAT

JUMP RING

1шт.

NSS

NOT SOLD SEPARAT

THRUST COLLAR

1шт.

12

K964242

DRIVE

ASSEMBLY

1шт.

13

A48242

BRACKET

ASSEMBLY - intermediate

1шт.

14

K964185

ARMATURE

ASSEMBLY

1шт.

15

K963791

KIT

BUSHING KIT (Set of 3)

1шт.

NSS

NOT SOLD SEPARAT

BUSHING - drive end

1шт.

NSS

NOT SOLD SEPARAT

BUSHING - intermediate

1шт.

NSS

NOT SOLD SEPARAT

BUSHING - commutator

1шт.

A48243

KIT

- hardware (Includes all Refs. illustrated but not listed or identified)

1шт.
