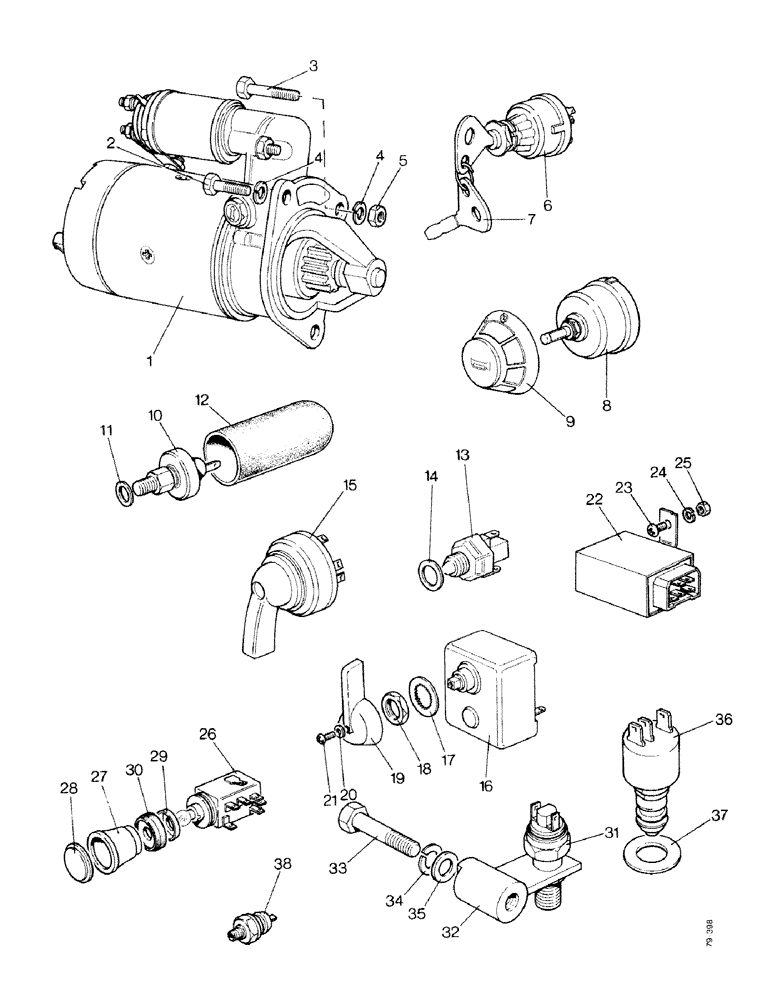

Запчасти Case IH 1490 (S06-1) - STARTER AND SWITCHES, LOW PROFILE, HIGH PLATFORM (06) - ELECTRICAL SYSTEMS

1

K957340

STARTER MOTOR

STARTER - (Lucas 27413A) (Replaces K89772) (See Figure S07-1)

1шт.

1

K919752

STARTING MOTOR

STARTER - (Lucas 26379A), for use in low temperature (See Figure S08-1)

1шт.

87297386

REMAN-STARTER

Remanufactured STARTER - For N.A. Only

1шт.

87297387

CORE-STARTER

Return number - For N.A. only

1шт.

2

K600476

BOLT

BOLT - 3/8 UNC x 1-3/4", Serial Range: starter-engine

2шт.

3

K600563

BOLT

BOLT - 3/8 UNC x 2-1/4", Serial Range: starter-engine

1шт.

4

K19482

SPRING WASHER

WASHER - lock, 3/8", Serial Range: starter-engine

3шт.

5

280136

NUT,3/8"-16, G8

NUT, , Starter to engine 3/8"-16, G8

1шт.

6

K203992

IGNITION SWITCH

SWITCH - starter, (Lucas 54033688)

1шт.

7

K920929

KEY

KEY - starter switch, pair

1шт.

8

K300657

SWITCH

SWITCH - lamps and horn (Lucas 54349813)

1шт.

9

K300792

KNOB

KNOB - lamps and horn switch

1шт.

10

K903851

PRESSURE SWITCH

SWITCH - oil pressure (AC-Delco 7994092)

1шт.

11

K626521

SEALING WASHER

FIBER WASHER - 3/8" (9.525 mm)

1шт.

12

K947518

COVER

COVER - oil pressure switch

1шт.

13

K200652

NEUTRAL START SWITCH

SWITCH - starter safety, (Lucas 33855)

1шт.

14

K626895

SHIM,.002" Thk

SHIM, (0.0508 mm) .002" Thk

1шт.

14

K626858

SHIM,.005" Thk

SHIM, (0.127 mm) .005" Thk

1шт.

14

K626894

SHIM,.010" Thk

SHIM, (0.254 mm) .010" Thk

1шт.

15

K300781

FLASHER SWITCH

SWITCH - direction indicator (Hella 6RB 001 59503) (Low Profile)

1шт.

16

K300893

SWITCH

SWITCH - direction indicators (High Platform), Includes: Ref. 17 - 21

1шт.

17

NSS

NOT SOLD SEPARAT

WASHER - special (High Platform)

1шт.

18

NSS

NOT SOLD SEPARAT

NUT - special (High Platform)

1шт.

19

NSS

NOT SOLD SEPARAT

KNOB (High Platform)

1шт.

20

NSS

NOT SOLD SEPARAT

WASHER - special (High Platform)

1шт.

21

NSS

NOT SOLD SEPARAT

SCREW (High Platform)

1шт.

22

K948611

FLASHER UNIT

FLASHER UNIT - indicators, (Hella 4DM 002 233 05)

1шт.

23

K603925

SCREW,Pan, 1/4" - 20 x 5/8"

SCREW - 1/4 UNC x 5/8"

1шт.

24

K626341

SPRING WASHER

WASHER - lock, 1/4"

1шт.

25

K607043

NUT

NUT - 1/4 UNC

1шт.

26

K300833

SWITCH

SWITCH - hazard warning, (Hella 6HD 001 578 04) (Low Profile), Includes: Ref. 27 - 30

1шт.

27

K964913

KNOB

KNOB (Low Profile)

1шт.

28

K964914

LENS

LENS (Low Profile)

1шт.

29

K950592

WASHER

WASHER (Low Profile)

1шт.

30

K950593

COVER

RUBBER SEAL (Low Profile)

1шт.

31

K300733

SWITCH

SWITCH - differential lock, early tractors (Low Profile)

1шт.

32

K201986

BRACKET

BRACKET - early tractors (Low Profile)

1шт.

33

K600475

BOLT

BOLT - 3/8 UNC x 1-1/2", early tractors (Low Profile)

1шт.

34

K19482

SPRING WASHER

WASHER - lock, 3/8", early tractors (Low Profile)

1шт.

35

K19472

WASHER

WASHER - lock, 3/8" (9.525 mm) early tractors (Low Profile)

1шт.

36

K929737

SWITCH ASSY

SWITCH - differential lock, early tractors (High Platform)

1шт.

37

K19476

WASHER

WASHER - early tractors (High Platform)

1шт.

38

K201313

SWITCH

SWITCH - vacuum, air cleaner, (Bosch 0344 800 004)

1шт.
