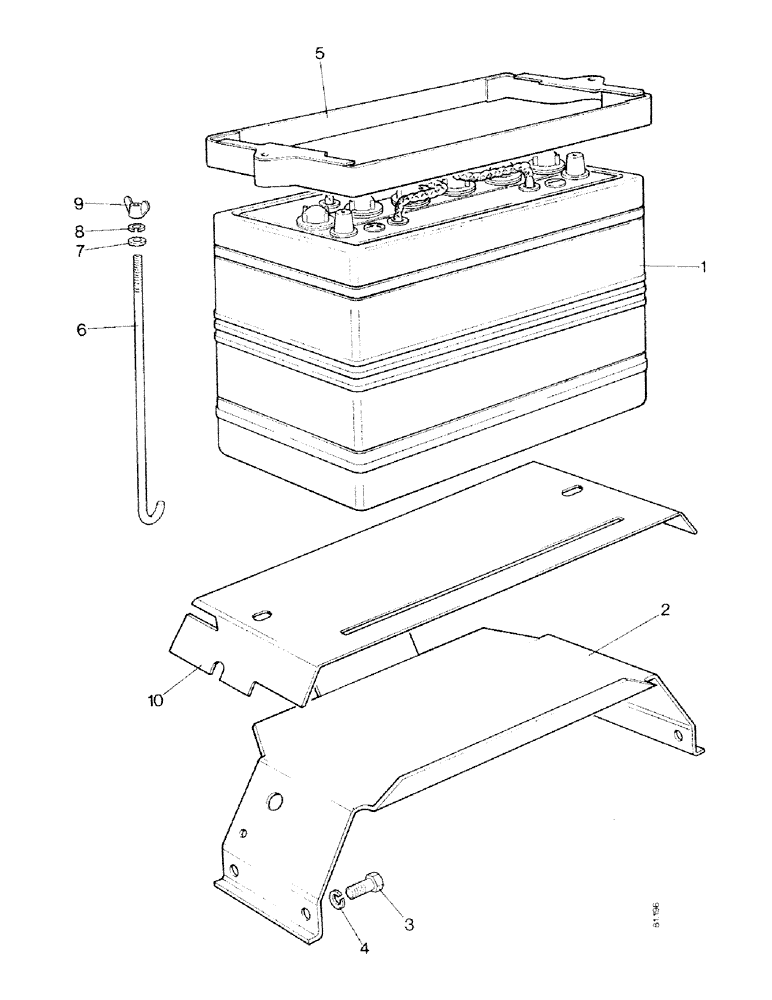

Запчасти Case IH 1490 (S05-1) - BATTERY AND SUPPORT BRACKET (06) - ELECTRICAL SYSTEMS

1

A145205

WET BATTERY

- low maintenance

1шт.

1

A38411

DRY BATTERY

1шт.

2

K300270

BRACKET

SUPPORT BRACKET - battery

1шт.

3

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8

4шт.

4

K651848

WASHER

- lock, 8 mm

4шт.

5

K947080

FRAME

CLAMP - battery top

1шт.

6

K300235

BOLT

STUD - clamp, M6 x 250, standard battery

2шт.

6

K300035

BOLT

STUD - clamp, M6 x 300, heavy duty battery

2шт.

7

K651777

WASHER

- 6 mm

2шт.

8

K651847

WASHER, LOCK

WASHER - lock, 6 mm

2шт.

9

K651744

NUT

WING NUT - M6

2шт.

10

K301071

BAFFLE

SEATING PAD - battery

1шт.
