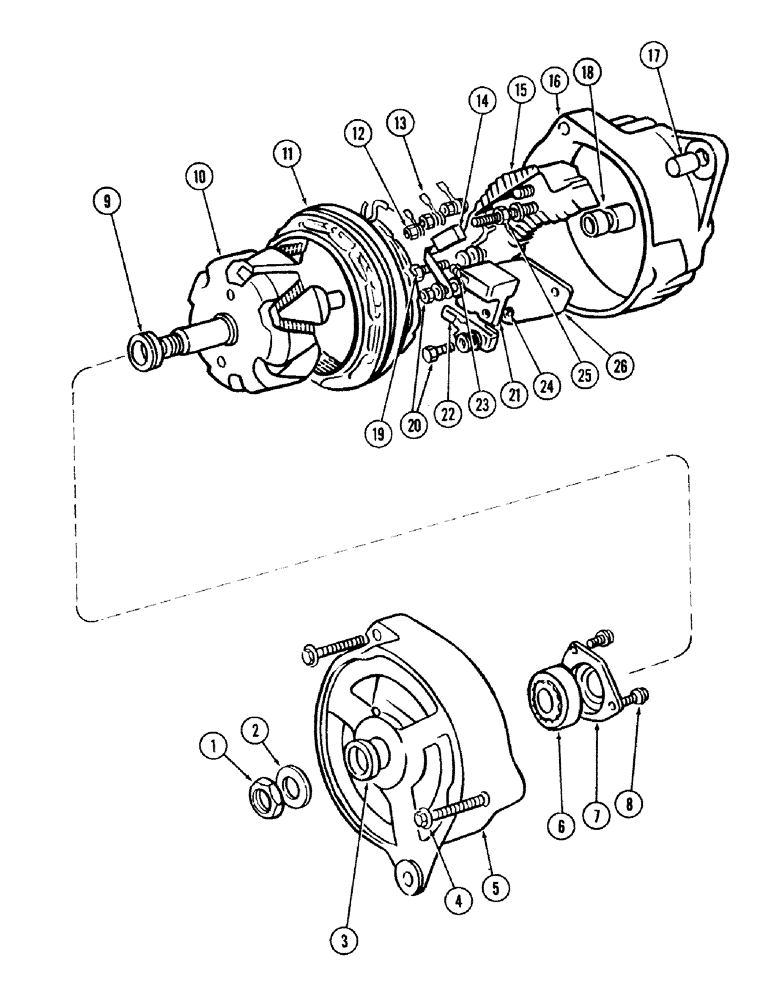

Запчасти Case IH 1490 (S03-1) - K956425 ALTERNATOR, LOW PROFILE, AC DELCO 7982992 (06) - ELECTRICAL SYSTEMS

K956425

ALTERNATOR

ALTERNATOR, Includes: Ref. 1 - 26

1шт.

92293C1

ALTERNATOR

Alternator, 12V, 45 Amp, W/Fan and Pulley

1шт.

92293C1R

REMAN-ALTERNATOR

Reman For New PN 92293C1

1шт.

92293C1C

CORE-ALTERNATOR

Return Number

1шт.

92293C1GV

ALTERNATOR

Value, 12 Volt, 45 Amp, W/Fan and Pulley

1шт.

K956426

ALTERNATOR

Alternator

1шт.

104020A1GV

ALTERNATOR

Value, 12V, 26A

1шт.

104020A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 26 AMP Alternator

1шт.

104020A1C

CORE-ALTERNATOR

Return Number, 12 VOLT, 26 AMP Alternator

1шт.

104020A1RGV

ALTERNATOR

REMANUFACTURED 12 VOLT, 26 AMP ALTERNATOR

1шт.

1

K965050

NUT

NUT - pulley retaining, AC 7982561

1шт.

2

K965051

WASHER

WASHER - lock, AC 1941978

1шт.

3

K965052

COLLAR

COLLAR - outer, AC 7982701

1шт.

4

K650342

BOLT

BOLT - through, AC 7982619

3шт.

K965923

FRAME

FRAME ASSEMBLY - drive end, AC 7982954, Includes: Ref. 5 - 7

1шт.

5

K965056

FRAME

FRAME - drive end, AC 7982668

1шт.

6

K965058

BALL BEARING

BALL BEARING - AC 7982956

1шт.

7

K965059

RETAINER

SPARE PART RETAINER PLATE - AC 1955495

1шт.

8

K965060

SCREW

SCREW - retainer plate, AC 120216

3шт.

9

K965061

COLLAR

COLLAR - inner, AC 7982597

1шт.

10

K965062

ROTOR

ROTOR ASSEMBLY - AC 7982522

1шт.

11

K965064

STATOR

STATOR ASSEMBLY - AC 7982511

1шт.

12

K965063

NUT

NUT - AC 11010122

3шт.

13

K965078

TERMINAL CONNECTOR

TERMINAL - positive, AC 7982880

1шт.

14

K965065

DIODE

DIODE TRIO - AC 3472312

1шт.

15

K965070

CONTACT

RECTIFIER BRIDGE AND INSULATOR - AC 7982716

1шт.

K965081

FRAME

FRAME ASSEMBLY - slip ring end, AC 7982861, Includes: Ref. 16 and 17

1шт.

16

K965082

FRAME

FRAME - slip ring, AC 7982687

1шт.

17

K965083

BUSHING

BUSHING - AC 7982534

1шт.

18

K965084

ROLLER

ROLLER BEARING - AC 7982870

1шт.

19

K965067

SCREW

SCREW - AC 7982563

1шт.

K965068

WASHER

WASHER - AC 862106

2шт.

K965069

WASHER

WASHER - lock, AC 131182

3шт.

20

K965071

SCREW

SCREW - brush holder, AC 1876681, Includes: Ref. 21 - 23

2шт.

K965072

BRUSH HOLDER

HOLDER, BRUSH BRUSH HOLDER ASSEMBLY - AC 7982589

1шт.

21

K965075

HOLDER

BRUSH HOLDER - AC 7982587

1шт.

22

K965073

TERMINAL CONNECTOR

BRUSH - AC 7982543

2шт.

Order K965072

1шт.

23

K965074

SPRING

SPRING - AC 1964117

2шт.

24

K965076

SCREW

SCREW - regulator mounting, AC 7982594

1шт.

25

K965066

SCREW

SCREW - AC 7982711

1шт.

26

K965077

REGULATOR

REGULATOR - AC 7982685

1шт.

K965079

BLOCK

TERMINAL BLOCK

1шт.

K965080

CLIP

CLIP - socket

1шт.
