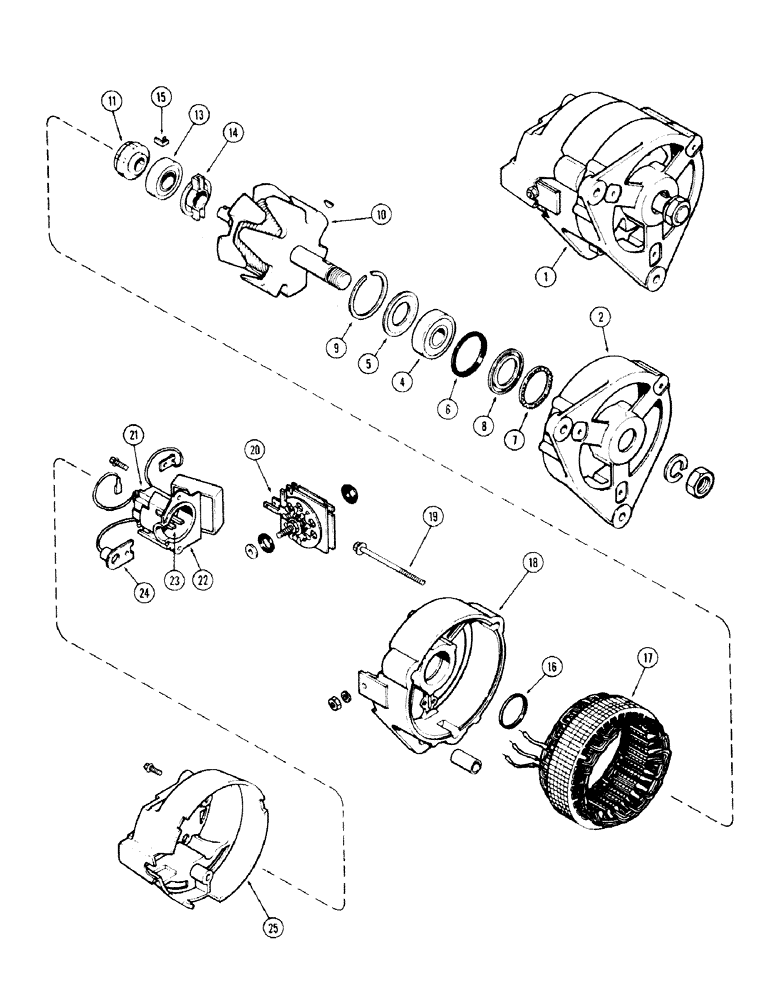

Запчасти Case IH 1490 (S02-1) - K956426 ALTERNATOR, LOW PROFILE, LUCAS NO. 23851 (06) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
K956426
ALTERNATOR
ALTERNATOR ASSEMBLY - (12 volt, 34 amperes), Includes: Ref. 2 - 25
1шт.
1
104020A1GV
ALTERNATOR
Value, 12V, 26A
1шт.
1
104020A1R
REMAN-ALTERNATOR
Remanufactured 12 VOLT, 26 AMP Alternator
1шт.
1
104020A1C
CORE-ALTERNATOR
Return Number, 12 VOLT, 26 AMP Alternator
1шт.
1
104020A1RGV
ALTERNATOR
REMANUFACTURED 12 VOLT, 26 AMP ALTERNATOR
1шт.
1
92293C1
ALTERNATOR
Alternator, 12V, 45 Amp, W/Fan and Pulley
1шт.
1
92293C1R
REMAN-ALTERNATOR
Reman For New PN 92293C1
1шт.
1
92293C1C
CORE-ALTERNATOR
Return Number
1шт.
1
92293C1GV
ALTERNATOR
Value, 12 Volt, 26 Amp
1шт.
2
K965924
FRAME
FRAME ASSEMBLY - drive end, Includes: Ref. 4 - 9
1шт.
K963778
BEARING ASSY
BEARING KIT - drive end
1шт.
4
NSS
NOT SOLD SEPARAT
BEARING
1шт.
5
NSS
NOT SOLD SEPARAT
PLATE - bearing retaining
1шт.
6
NSS
NOT SOLD SEPARAT
RING - pressure
1шт.
7
NSS
NOT SOLD SEPARAT
SEAL - felt
1шт.
8
NSS
NOT SOLD SEPARAT
RETAINER - felt seal
1шт.
9
NSS
NOT SOLD SEPARAT
RING - snap, bearing kit retaining
1шт.
10
A47085
SPARE PART ROTOR ASSEMBLY, Includes: Ref. 11 - 16
1шт.
11
K964178
SLIP RING
RING - slip
1шт.
K963779
KIT
BEARING KIT - slip ring end
1шт.
13
NSS
NOT SOLD SEPARAT
BEARING
1шт.
14
NSS
NOT SOLD SEPARAT
SEAL - dust (Black)
1шт.
15
NSS
NOT SOLD SEPARAT
SEAL - dust (White)
1шт.
16
NSS
NOT SOLD SEPARAT
RING - pressure
1шт.
17
A47093
NO LONGER SERVICED
STATOR
1шт.
18
K964180
BRACKET
FRAME - slip ring end
1шт.
19
K650342
BOLT
BOLT - through
2шт.
20
K962783
RECTIFIER
RECTIFIER ASSEMBLY
1шт.
21
K962774
REGULATOR
REGULATOR ASSEMBLY
1шт.
22
K963772
BOX
SPARE PART HOLDER ASSEMBLY - brush, Includes: Ref. 23
1шт.
23
K964151
BRUSH, COMMUTATOR
BRUSH BRUSH SET
1шт.
24
K964182
PROTECTOR
DIODE - isolation (Surge protection)
1шт.
25
A47083
REAR COVER
COVER - drive end
1шт.
K963927
KIT
HARDWARE KIT - (Includes all Refs. illustrated but not listed or identified)
1шт.
Выбрано товаров: 34
