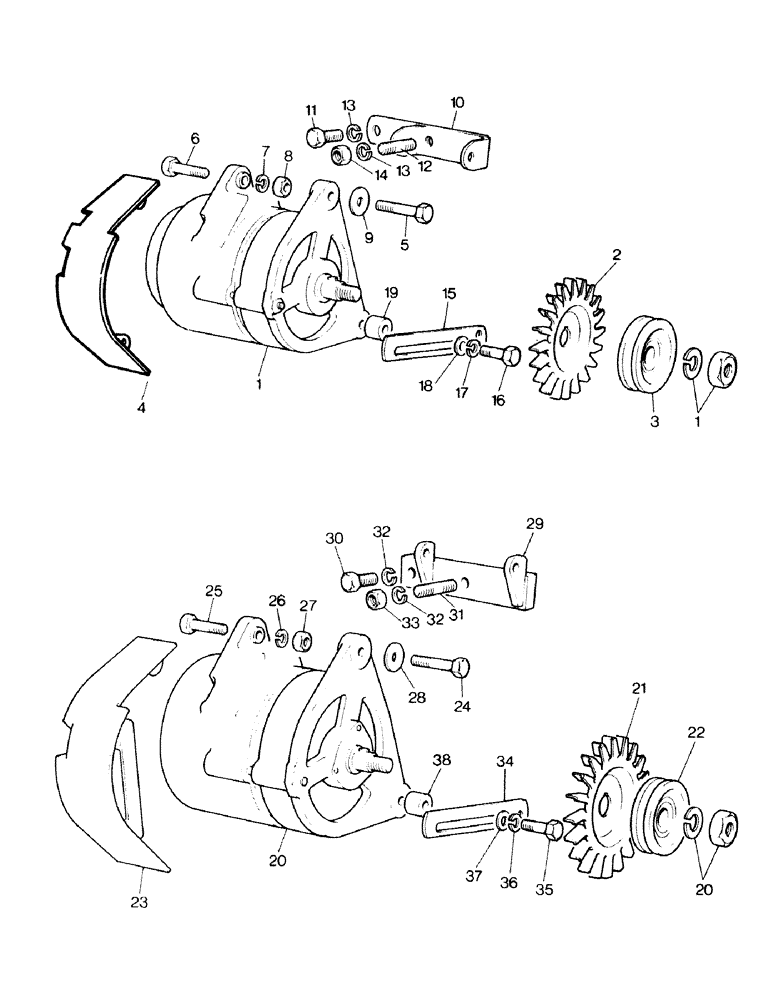

Запчасти Case IH 1490 (S01-1) - ALTERNATOR (06) - ELECTRICAL SYSTEMS

1

K956426

ALTERNATOR

ALTERNATOR - (Lucas 23851) (26 amp, low profile)

1шт.

1

104020A1GV

ALTERNATOR

Value, 12V, 26A

1шт.

1

104020A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 26 AMP Alternator

1шт.

1

104020A1C

CORE-ALTERNATOR

Return Number, 12 VOLT, 26 AMP Alternator

1шт.

1

104020A1RGV

ALTERNATOR

REMANUFACTURED 12 VOLT, 26 AMP ALTERNATOR

1шт.

1

92293C1

ALTERNATOR

Alternator, 12V, 45 Amp, W/Fan and Pulley

1шт.

1

92293C1R

REMAN-ALTERNATOR

Reman For New PN 92293C1

1шт.

1

92293C1C

CORE-ALTERNATOR

Return Number

1шт.

1

92293C1GV

ALTERNATOR

Value, 12 Volt, 26 Amp

1шт.

2

K942129

FAN

FAN - Lucas alternator

1шт.

3

K942045

PULLEY

PULLEY - Lucas alternator

1шт.

4

K950496

FAN

GUARD - Lucas alternator

1шт.

1

K956425

ALTERNATOR

ALTERNATOR - (AC-Delco 7982992), Includes: Ref. 2 and 3

1шт.

2

K953786

FAN

ATTACHMENT - mirror (Machinery item), 4 x 6 convex

1шт.

3

K953787

PULLEY

SPARE PART PULLEY - AC-Delco alternator

1шт.

4

K950496

FAN

GUARD - AC-Delco alternator

1шт.

5

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

BOLT, , Alternator to bracket Hex, 5/16"-18 x 1 1/2", G5

1шт.

6

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

SETSCREW - 5/16 UNC x 1-1/4", alternator to bracket

1шт.

7

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Alternator to bracket 5/16"

2шт.

8

9635082

NUT,5/16" - 18, Gr 5

NUT, , Alternator to bracket 5/16"-18, G5

2шт.

9

K626916

WASHER

WASHER - 5/16 (7.938 mm) special

1шт.

10

K947375

SUPPORT

BRACKET - support

1шт.

11

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, , Bracket to cylinder block Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

12

K608235

STUD

STUD - 3/8 UNC x 1-1/4", bracket to cylinder block

1шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Bracket to cylinder block 3/8"

2шт.

14

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Bracket to cylinder block 3/8"-16, G5

1шт.

15

K950495

ADJUSTER

STRAP - adjuster

1шт.

16

K650342

BOLT

SETSCREW - M8 x 20

1шт.

17

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

18

K626916

WASHER

WASHER - 5/16" (7.938 mm) special

1шт.

19

K627028

BUSHING

SPACER - strap

1шт.

20

K302424

ALTERNATOR

ALTERNATOR - (Lucas 24049) (65 amp, high platform and cab) heavy duty

1шт.

21

K302509

FAN

FAN - heavy duty

1шт.

22

K302510

PULLEY

PULLEY - heavy duty

1шт.

23

K302427

GUARD

GUARD - heavy duty

1шт.

24

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

SETSCREW - 5/16 UNC x 1-1/2"

1шт.

25

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

SETSCREW - 5/16 UNC x 1-1/4"

2шт.

26

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

27

9635082

NUT,5/16" - 18, Gr 5

NUT, 5/16"-18, G5

1шт.

28

K626916

WASHER

WASHER - 5/16" (7.938 mm) special

1шт.

29

K204286

MOUNTING PARTS

BRACKET - support

1шт.

30

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

31

K608207

STUD

SPARE PART STUD - 3/8 UNC x 1-1/2"

2шт.

32

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

33

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

34

K204287

ADJUSTER

STRAP - adjuster

1шт.

35

K650342

BOLT

BOLT - M8 x 20

1шт.

36

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

37

K626916

WASHER

WASHER - 5/16" (7.938 mm) special

1шт.

38

K627336

BUSHING

SPACER - strap

1шт.
