Запчасти Case IH 1490 (E03-1) - GEARS AND SHAFTS FOR FINAL DRIVES, TRACTORS WITH DISC BRAKES (05) - REAR AXLE

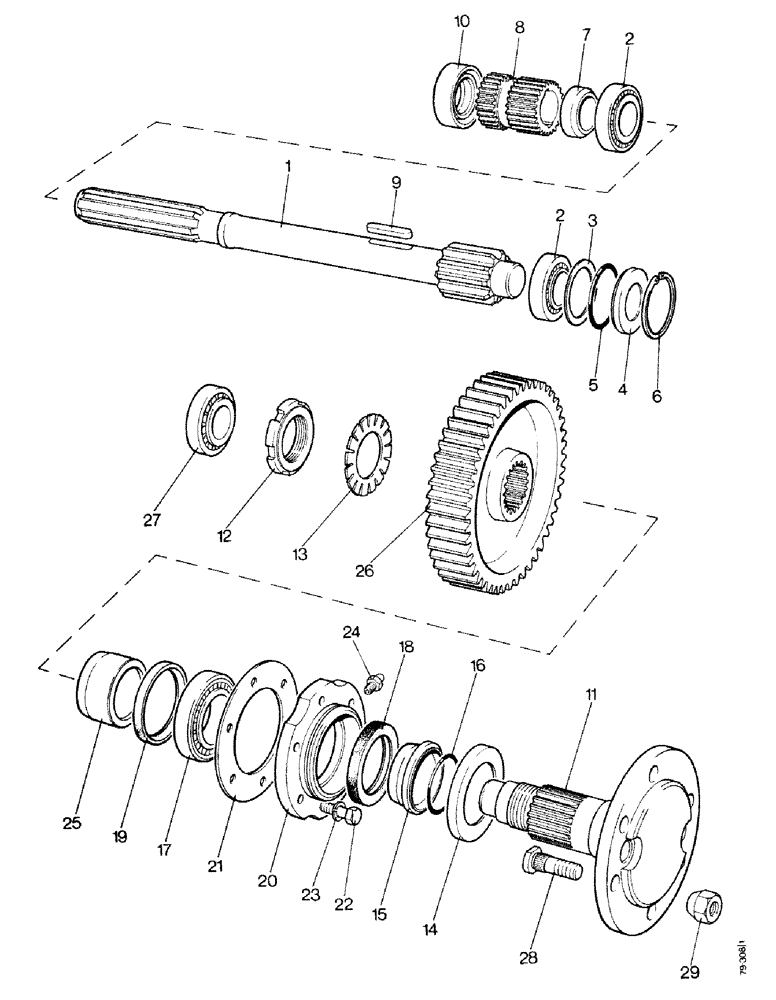

Схема запчастей Case IH 1490 - (E03-1) - GEARS AND SHAFTS FOR FINAL DRIVES, TRACTORS WITH DISC BRAKES (05) - REAR AXLE
13
15
24
26
7
22
16
20
25
14
11
29
2
23
17
18
4
10
3
9
2
8
27
28
21
19
5
6
12
1

Артикул

Название

Примечание

Количество

1

K929253

SHAFT

SPUR PINION SHAFT

2шт.

2

K19186

BEARING, ROLLER

TAPER ROLLER BEARING

4шт.

3

K907514

SHIM,.003" Thk

(0.0762 mm) .003" Thk

1шт.

3

K907515

SHIM,.010" Thk

(0.254 mm) .010" Thk

1шт.

4

K929045

COVER

END COVER

2шт.

5

K623545

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- 3" (76.2 mm) internal diameter

2шт.

6

K13042

RING, SNAP

RING - snap, 3-1/4" (82.55 mm) internal

2шт.

7

K627237

BUSHING

SPACER

2шт.

8

K947582

HUB

- brake discs

2шт.

9

K622324

KEY

- 11/32 x 1/2 x 2-1/2" (8.731 x 12.7 x 63.5 mm)

4шт.

10

K13353

SEAL,44.45mm ID x 80.96mm OD x 12.7mm Thk

OIL SEAL - 1-3/4 x 3-3/16 x 1/2" (44.45 x 80.962 x 12.7 mm)

4шт.

11

K964869

DRIVE

FINAL DRIVESHAFT, Includes Ref. 12 and 13

2шт.

12

K85359

LOCK NUT

RING NUT - 2-3/4", special (69.85 mm)

1шт.

13

K85355

LOCK WASHER

TABWASHER

1шт.

14

K910397

SEAL

DUST SHIELD

2шт.

15

K916497

COLLAR,69.93mm ID x 95.25mm OD x 32.89mm L

SLEEVE

2шт.

16

238-5148

O-RING,0.103" Thk x 2.737" ID, -148, Cl 5, 75 Duro

- 2-7/8" (73.025 mm) internal diameter (Replaces K623595)

2шт.

17

K19185

TAPERED BEARING

TAPER ROLLER BEARING

2шт.

18

K15550

OIL SEAL,80.95mm ID x 108.08mm OD x 15.88mm Thk

OIL SEAL - 3-1/4 x 4-1/4 x 5/8" (82.55 x 107.95 x 15.875 mm)

2шт.

19

K623452

SEAL,90mm ID x 110.28mm OD x 11.99mm Thk

OIL SEAL - 90 x 100 x 12 mm

2шт.

The measurement should be 90 x 110 x 12 mm.

1шт.

20

K944516

HOUSING

- oil seal, right-hand

1шт.

20

K944517

HOUSING

- oil seal, left-hand

1шт.

21

K902772

SHIM,.003" Thk

(0.0762 mm) .003" Thk

1шт.

21

K902773

SHIM,.006" Thk

(0.1524 mm) .006" Thk

1шт.

21

K902774

SHIM,.009" Thk

(0.2286 mm) .009" Thk

1шт.

21

K902775

GASKET

SHIM - 0.015" (0.381 mm)

1шт.

21

K947289

SHIM,56.36mm ID x 83.34mm OD x 0.76mm Thk

- 0.030" (0.762 mm)

1шт.

22

K600602

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 5

- 7/16 UNC x 1-1/2"

12шт.

23

K626344

WASHER, LOCK

WASHER - lock, 7/16"

12шт.

24

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

2шт.

25

K944893

SLEEVE

2шт.

26

K929252

WHEEL

SPUR GEAR - 49 teeth

2шт.

27

K19186

BEARING, ROLLER

TAPER ROLLER BEARING

2шт.

28

K611463

STUD

BOLT - 3/4 UNF x 2-1/2", special

16шт.

29

K617176

NUT

WHEEL NUT - 3/4 UNF

16шт.

Выбрано товаров: 36
