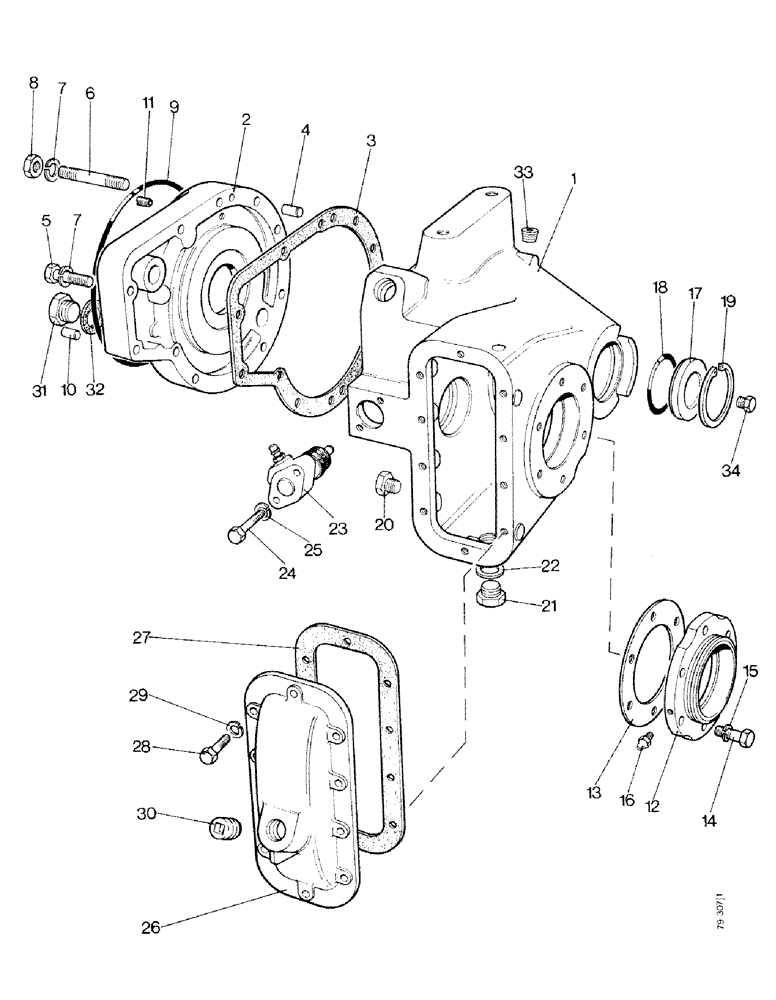

Запчасти Case IH 1490 (E02-1) - CASE AND COVERS FOR FINAL DRIVES, TRACTORS WITH DISC BRAKES (05) - REAR AXLE

1

K954724

HOUSING

CASE - right-hand, standard clearance

1шт.

1

K954723

HOUSING

CASE - left-hand, standard clearance

1шт.

1

K957275

HOUSING

CASE - right-hand, high clearance

1шт.

1

K957274

HOUSING

CASE - left-hand, high clearance

1шт.

2

K954734

HOUSING

BRAKE HOUSING - right-hand, standard clearance

1шт.

2

K954733

HOUSING

BRAKE HOUSING - left-hand, standard clearance

1шт.

2

K957262

HOUSING

BRAKE HOUSING - right-hand, high clearance

1шт.

2

K957261

HOUSING

BRAKE HOUSING - left-hand, high clearance

1шт.

3

K204311

GASKET

2шт.

4

K900105

PIN

DOWEL - 5/8 x 1-7/16" (15.875 x 36.512 mm)

4шт.

5

K608828

BOLT

- 1/2 UNC x 2-1/2"

6шт.

5

K600836

BOLT

- 1/2 UNC x 4"

4шт.

6

K608430

STUD

- 1/2 UNC x 4-1/16", tractors without rollbar

16шт.

6

K608822

BOLT

- 1/2 UNC x 1-3/4", tractors without rollbar

4шт.

6

K608427

STUD

- 1/2 UNC x 2-7/8", tractors with rollbar

2шт.

6

K608430

STUD

- 1/2 UNC x 4-1/16", tractors with rollbar

12шт.

6

K608429

STUD

- 1/2 UNC x 4-5/8", tractors with rollbar

2шт.

7

K626345

LOCK WASHER

WASHER - lock, 1/2

30шт.

8

K607239

NUT

- 1/2 UNC

16шт.

9

K628855

O-RING,3mm Thk x 244mm ID, 75 Duro

- 9-5/8" (244.475 mm) internal diameter

2шт.

10

K900105

PIN

DOWEL - 5/8 x 1-7/16" (15.875 x 36.512 mm)

4шт.

11

K947891

BREATHER

PLUG - 3/8 UNF

2шт.

12

K944516

HOUSING

- oil seal, right-hand

1шт.

12

K944517

HOUSING

- oil seal, left-hand

1шт.

13

K902772

SHIM,.003" Thk

(0.0762 mm) .003" Thk

1шт.

13

K902773

SHIM,.006" Thk

(0.1524 mm) .006" Thk

1шт.

13

K902774

SHIM,.009" Thk

(0.2286 mm) .009" Thk

1шт.

13

K902775

GASKET

SHIM - 0.015" (0.381 mm)

1шт.

13

K947289

SHIM,56.36mm ID x 83.34mm OD x 0.76mm Thk

- 0.030" (0.762 mm)

1шт.

14

K600602

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 5

- 7/16 UNC x 1-1/2"

12шт.

15

K626344

WASHER, LOCK

WASHER - lock, 7/16"

12шт.

16

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

2шт.

17

K929045

COVER

END COVER - standard clearance

2шт.

17

K203967

COVER

END COVER - high clearance

2шт.

18

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

(76.2 mm) internal diameter (Replaces K623545) -234, 70 Duro, 2.984" ID x .139" Thk

2шт.

Ref. 18A - use 238-5335 for 2-3/4" O-ring

1шт.

19

K13042

RING, SNAP

RING - snap, 3-1/4" (82.55 mm) internal

2шт.

20

K628084

PLUG

PLASTIC PLUG - 5/8" (15.875 mm)

6шт.

21

K623849

PLUG

- 1/2 BSP

4шт.

22

K15143

WASHER

SEALING WASHER - 7/8" (22.225 mm)

4шт.

23

K201826

CYLINDER

SLAVE CYLINDER - brakes (Girling 73067050)

2шт.

24

K600365

BOLT

SETSCREW - 5/16 UNC x 1-1/2"

4шт.

25

K19481

SPRING WASHER

WASHER - lock, 5/16"

4шт.

26

K203311

COVER

2шт.

27

K923221

GASKET,0.51mm Thk

2шт.

28

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

SETSCREW - 3/8 UNC x 1-1/8"

20шт.

29

K19482

SPRING WASHER

WASHER - lock, 3/8"

20шт.

30

K12362

PLUG

TAPER PLUG - 1/2 BSP

4шт.

31

K623830

PLUG

FLANGED PLUG - 1" BSP

2шт.

32

K11120

SEALING WASHER

FIBER WASHER

2шт.

33

K14596

PLUG

- 1/2 BSP, high clearance

2шт.

34

K623752

PLUG

- 1/8 BSP, high clearance

2шт.
