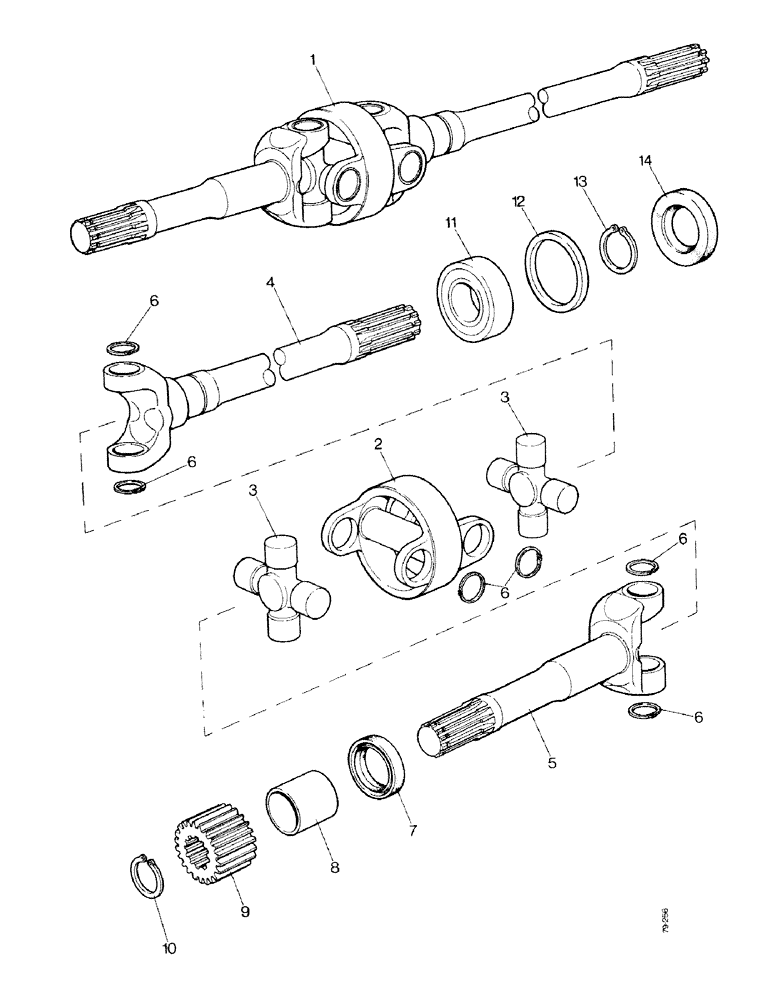

Запчасти Case IH 1490 (G12-1) - HALF-SHAFTS - CARRARO AXLE, MFD MODEL (04) - FRONT AXLE

1

K965328

SHAFT

HALF-SHAFT ASSEMBLY - (Carraro 102176), Includes Ref. 2 - 6

1шт.

2

K965332

HOUSING

JOINT HOUSING - (Carraro 96866) (Replaces K260190)

1шт.

Should use K965332.

1шт.

3

K965331

SPIDER

UNIVERSAL JOINT - (Carraro 96867)

2шт.

4

K965329

DRIVE

HALF-SHAFT - long (Carraro 102406)

1шт.

5

K965330

SHAFT

HALF-SHAFT - short (Carraro 96869)

1шт.

6

K965336

RING, SNAP

RING - snap (Carraro 40181)

8шт.

7

K965325

SEAL

OIL SEAL - (Carraro 25187)

4шт.

8

K965322

BUSHING

- (Carraro 88674)

2шт.

9

K965312

GEAR

- (Carraro 88558)

2шт.

10

K965313

RING, SNAP

RING - snap, 35 mm external (Carraro 24790)

2шт.

11

K965333

BALL BEARING,40mm ID x 80mm OD x 23mm W

BEARING - (Carraro (26024)

2шт.

12

K965337

SEAL

- (Carraro (95951)

2шт.

13

K965334

SNAP RING,M40, Ext

(Carraro 24795) M40, Ext

2шт.

14

K965335

OIL SEAL,40mm ID x 72mm OD x 10mm Thk

OIL SEAL - (Carraro 25193)

2шт.
