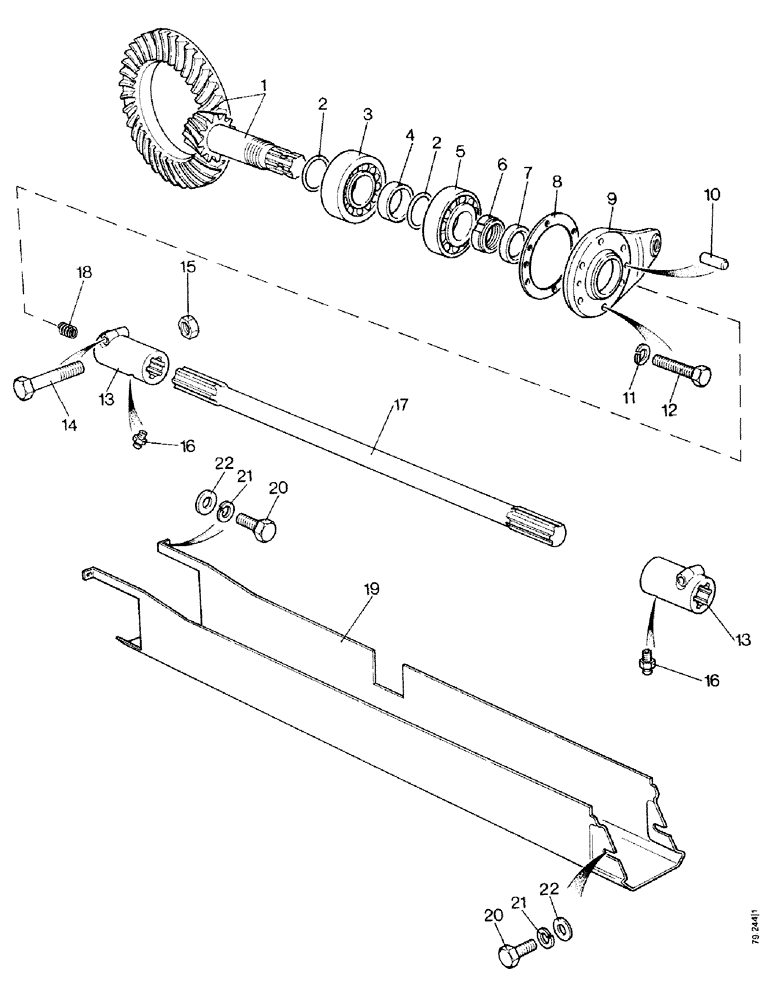

Запчасти Case IH 1490 (G11-1) - DRIVE - CARRARO AXLE, MFD MODEL (04) - FRONT AXLE

1

K965365

WHEEL

SPIRAL GEAR AND PINION (Carraro 65242)

1шт.

2

K965280

SHIM,2.50mm Thk

(Carraro 98427) 2.50mm Thk

1шт.

2

K965281

SHIM,2.55mm Thk

(Carraro 100157) 2.55mm Thk

1шт.

2

K965282

SHIM,2.60mm Thk

(Carraro 98426) 2.60mm Thk

1шт.

2

K965283

SHIM,2.65mm Thk

(Carraro 100158) 2.65mm Thk

1шт.

2

K965284

SHIM,40.1mm ID x 50mm OD x 2.7mm Thk

(Carraro 98425) 2.70mm Thk

1шт.

2

K965285

SHIM,2.75mm Thk

(Carraro 100159) 2.75mm Thk

1шт.

2

K965286

SHIM,2.85mm Thk

(Carraro 98424) 2.80mm Thk

1шт.

2

K965287

SHIM,2.85mm Thk

(Carraro 100160) 2.85mm Thk

1шт.

2

K965288

SHIM,2.90mm Thk

(Carraro 98244) 2.90mm Thk

1шт.

2

K965289

SHIM,2.95mm Thk

(Carraro 100161) 2.95mm Thk

1шт.

2

K965290

SPACER

SHIM - 3.0 mm (Carraro 98239)

1шт.

2

K965291

SHIM,3.05mm Thk

(Carraro 100162) 3.05mm Thk

1шт.

2

K965292

SHIM,3.10mm Thk

(Carraro 98240) 3.10mm Thk

1шт.

2

K965293

SHIM,3.15mm Thk

(Carraro 100163) 3.15mm Thk

1шт.

2

K965294

SHIM,3.20mm Thk

(Carraro 98241) 3.20mm Thk

1шт.

2

K965295

SHIM,3.25mm Thk

(Carraro 100164) 3.25mm Thk

1шт.

2

K965296

SHIM,3.30mm Thk

(Carraro 98242) 3.30mm Thk

1шт.

2

K965297

SHIM,3.35mm Thk

(Carraro 100165) 3.35mm Thk

1шт.

2

K965298

SHIM,3.40mm Thk

(Carraro 98243) 3.40mm Thk

1шт.

3

K965357

BEARING

- (Carraro 27406)

1шт.

4

K965412

BUSHING

SPACER - (Carraro 101548)

1шт.

5

K965358

BEARING

- (Carraro 27337)

1шт.

6

K965362

LOCK NUT

LOCKNUT - M40 (Carraro 23321)

1шт.

7

K965361

OIL SEAL,35mm ID x 55mm OD x 10mm Thk

OIL SEAL - (Carraro 25372)

1шт.

8

K965364

GASKET

- (Carraro 96932)

1шт.

9

K260526

FLANGE

- (Carraro 102509)

1шт.

10

K260163

PIN

DOWEL - (Carraro 79582)

1шт.

11

K965360

LOCK WASHER,M8

WASHER - lock, 8 mm (Carraro 22856)

5шт.

12

K260162

SCREW

SETSCREW - M8 x 40 (Carraro 20790)

5шт.

13

K260761

SPLINED COUPLING

COUPLING SLEEVE - (Carraro 102033/1)

2шт.

14

K965415

BOLT,M10 x 1.25 x 60mm

BOLT - M10 x 60 (Carraro 21105)

2шт.

15

K965414

NUT

- M10 (Carraro 22411)

2шт.

16

5194260

LUBE NIPPLE,M6 x 1, 16mm lg

GREASE FITTING - (Carraro 24210)

2шт.

17

K260760

DRIVE SHAFT

DRIVESHAFT - (Carraro 106606)

1шт.

18

K965410

SPRING

- (Carraro 83787)

1шт.

19

K260758

SHAFT

GUARD - (Carraro 106602)

1шт.

20

K965420

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

SETSCREW - M8 x 20 (Carraro 20778)

4шт.

21

K965360

LOCK WASHER,M8

WASHER - lock, 8 mm (Carraro 22856)

4шт.

22

K965421

WASHER

- 8 mm (Carraro 23109)

4шт.
