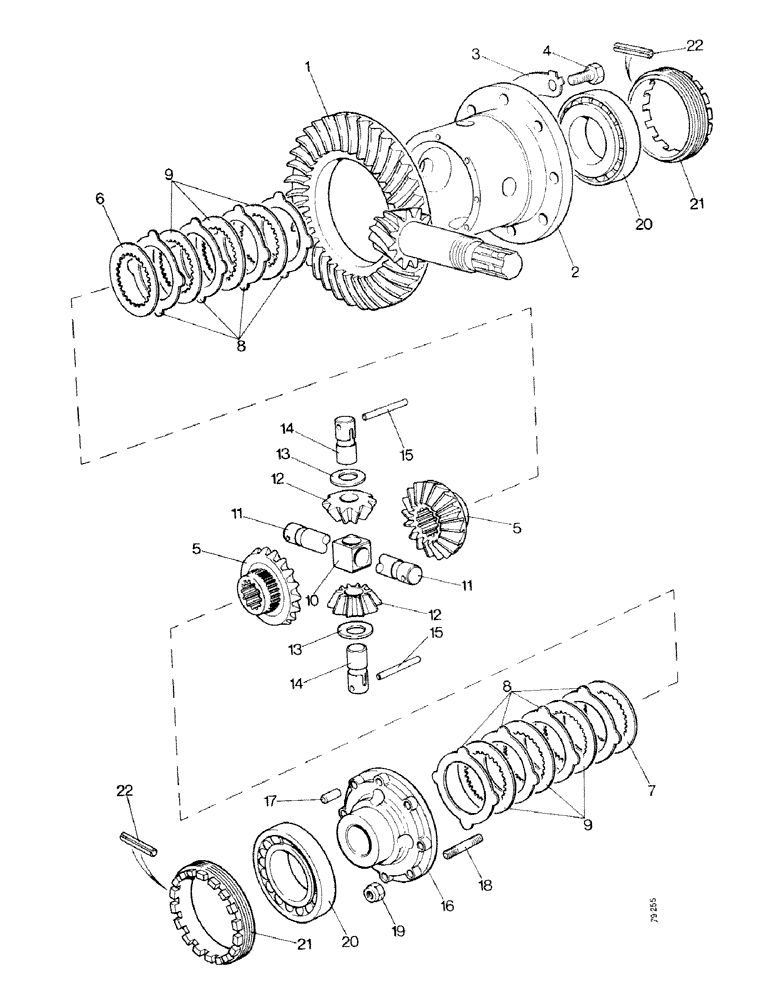

Запчасти Case IH 1490 (G10-1) - DIFFERENTIAL - CARRARO AXLE, MFD MODEL (04) - FRONT AXLE

1

K965365

WHEEL

SPIRAL GEAR AND PINION - (Carraro 65242)

1шт.

2

K260763

HOUSING

DIFFERENTIAL CAGE - (Carraro 106764)

1шт.

3

K965355

PLATE, LOCKING

TABWASHER - (Carraro 71319)

4шт.

4

K965356

BOLT,Hex, M12 x 1.25 x 25, 8.8, Full Thd

SETSCREW - M12 x 25 (Carraro 21134)

8шт.

5

K260182

WHEEL

BEVEL GEAR - (Carraro 104314)

2шт.

6

K260187

PLATE

BACKING PLATE - 2.9 mm (Carraro 105946)

1шт.

7

K260186

PLATE

BACKING PLATE - 2.8 mm (Carraro 104299)

1шт.

8

K260185

PLATE

FRICTION PLATE - outer (Carraro 104300)

8шт.

9

K260184

PLATE

FRICTION PLATE - inner (Carraro 104298)

6шт.

10

K965353

BLOCK

- (Carraro 84171)

1шт.

11

K965352

PIN

- (Carraro 70270)

1шт.

12

K965345

GEAR

BEVEL PINION (Carraro 70272)

4шт.

13

K965350

WASHER

- special (Carraro 99901)

4шт.

14

K965354

PIN

- (Carraro 84167)

2шт.

15

K965349

PIN

DOWEL PIN - (Carraro 70273)

3шт.

16

K260762

PLATE

END PLATE - (Carraro 105947)

1шт.

17

K260177

PIN

DOWEL - (Carraro 72259)

2шт.

18

K260180

STUD

- (Carraro 104407)

6шт.

19

K260181

NUT

- self-locking (Carraro 22412)

6шт.

20

K965339

BEARING

- (Carraro 27307)

2шт.

21

K965338

LOCK

ING RING - (Carraro 88697)

2шт.

22

K965340

SPLIT PIN/SAFETY PIN

PIN - (Carraro 24357)

2шт.
