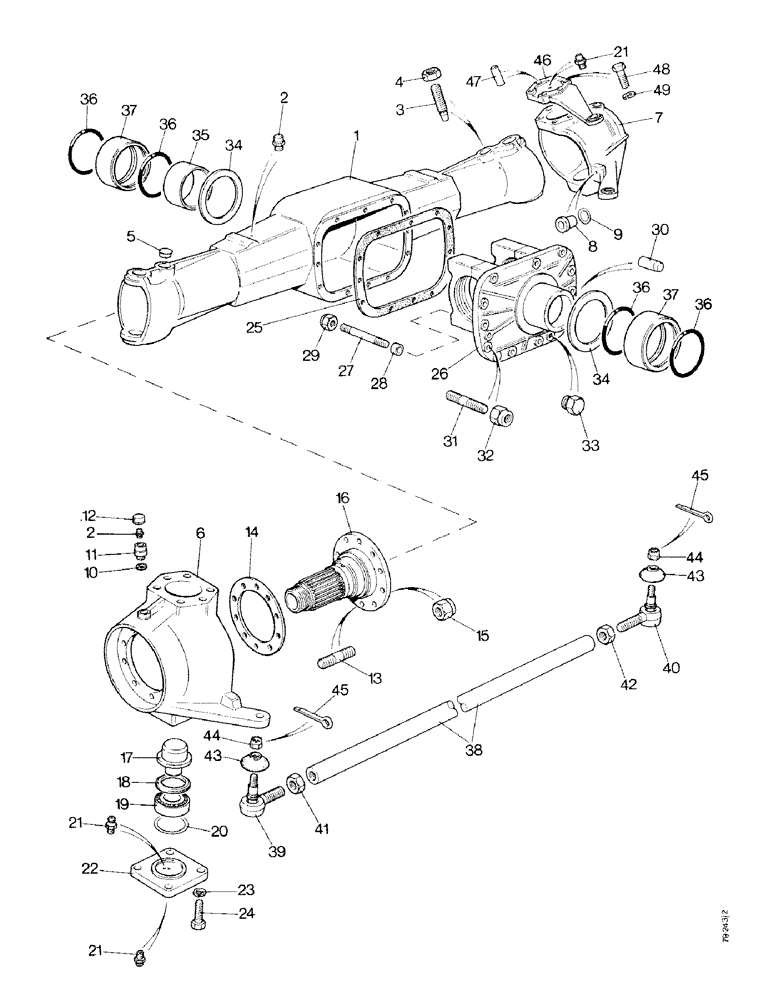

Запчасти Case IH 1490 (G09-1) - FRONT AXLE CASE, S/N 11188155 AND AFTER - CARRARO AXLE, MFD MODEL (04) - FRONT AXLE

1

K965230

AXLE

CASE - (Carraro 102177)

1шт.

2

K965231

BREATHER

- (Carraro 104988)

3шт.

3

K965232

BOLT,M10 x 1.25 x 35mm, Cl 10.9

LOCATING SCREW - M14 (Carraro 95952)

4шт.

4

905238R1

THIN NUT,M14 x 2, Thin

(Carraro 22125) M14 x 2, Thin

4шт.

5

K260135

PLUG

DUST PLUG - (Carraro 107811)

4шт.

6

K965235

HOUSING

- stub axle, left-hand (Carraro 108271)

1шт.

7

K965234

HOUSING

- stub axle, right-hand (Carraro 108270)

1шт.

8

K965260

STOP

- (Carraro 99668)

2шт.

9

K965261

SHIM

- 1.0 mm (Carraro 101035)

1шт.

9

K965262

SHIM

- 0.5 mm (Carraro 101036)

1шт.

10

K260138

WASHER

- (Carraro 23268)

2шт.

11

K260137

BLEEDER

RETAINER - (Carraro 107610)

2шт.

12

K260136

COVER

- (Carraro 30055)

2шт.

13

K965249

STUD

- (Carraro 96840) stub, Serial Range: axle-housing

20шт.

14

K965237

GASKET

- (Carraro 92522) stub, Serial Range: axle-housing

2шт.

15

K965250

NUT

- M14, self-locking (Carraro 22429) stub, Serial Range: axle-housing

20шт.

16

K965236

SHAFT

STUB AXLE - (Carraro 96839)

2шт.

17

K965239

PIN

BEARING PIN - (Carraro 96851)

2шт.

18

K965240

BEARING COVER

SEAL- (Carraro 88987)

2шт.

19

K965241

BEARING

- (Carraro 27402)

2шт.

20

K965243

SHIM,0.1mm Thk

(Carraro 91179) 0.1mm Thk

1шт.

20

K965244

SHIM,0.3mm Thk

(Carraro 91180) 0.3mm Thk

1шт.

20

K265245

SHIM - 0.5 mm (Carraro 91181)

1шт.

21

5194260

LUBE NIPPLE,M6 x 1, 16mm lg

GREASE FITTING - (Carraro 24210)

4шт.

22

K965242

COVER

- (Carraro 88721)

3шт.

23

K965248

WASHER

- lock, 18 mm (Carraro 22863)

12шт.

24

K965247

BOLT,M14 x 35mm

SETSCREW - M18 x 55 (Carraro 20967)

12шт.

25

K965251

GASKET

- (Carraro 101989)

1шт.

26

K965258

DIFFERENTIAL

END PLATE - (Carraro 101426/2)

1шт.

27

K965257

STUD

- (Carraro 95319)

4шт.

28

K965259

RING

DOWEL - (Carraro 72235)

4шт.

29

K965250

NUT

- M14, self-locking (Carraro 22429)

4шт.

30

K965252

PIN

DOWEL - (Carraro 87660)

1шт.

31

K965253

STUD

- M12 x 53 mm (Carraro 96931)

10шт.

32

905834R1

THIN NUT,M12 x 1.25, Thin

self-locking (Carraro 22414) M12 x 1.25, Thin

10шт.

33

K965263

PLUG

- (Carraro 92269)

2шт.

34

K965264

WASHER

THRUST WASHER - (Carraro 83352)

1шт.

35

K965266

BUSHING

SLEEVE - (Carraro 101565/1)

1шт.

36

K965267

O-RING,0.07" Thk x 4.489" ID

SEALING RING - (Carraro 28103)

4шт.

37

K965756

BEARING

BUSHING - (Carraro 104775), is nylon

2шт.

Ref. 37A - K965265 is a Bronze Bushing

1шт.

38

K965268

STEM

TRAACK ROD - (Carraro 102318)

1шт.

39

K965269

BALL JOINT

TRACK ROD END - left-hand (Carraro 98855)

1шт.

40

K965270

BALL JOINT

TRACK ROD END - right-hand (Carraro 98854)

1шт.

41

K965273

LOCK NUT

LOCKNUT - M22, left-hand (Carraro 81292)

1шт.

42

K965272

LOCK NUT

LOCKNUT - M22, right-hand (Carraro 22190)

1шт.

43

K260769

COVER

- rubber (Carraro 41437)

2шт.

44

K965271

NUT

- (Carraro 41431)

2шт.

45

K965374

PIN

- cotter (Carraro 25567)

2шт.

46

K260768

LEVER

STEERING ARM - (Carraro 103287)

1шт.

47

K965275

PIN

DOWEL - (Carraro 93818)

2шт.

48

K260766

BOLT

- M18 (Carraro 21240)

4шт.

49

K965248

WASHER

- lock, 18 mm (Carraro 22863)

4шт.
