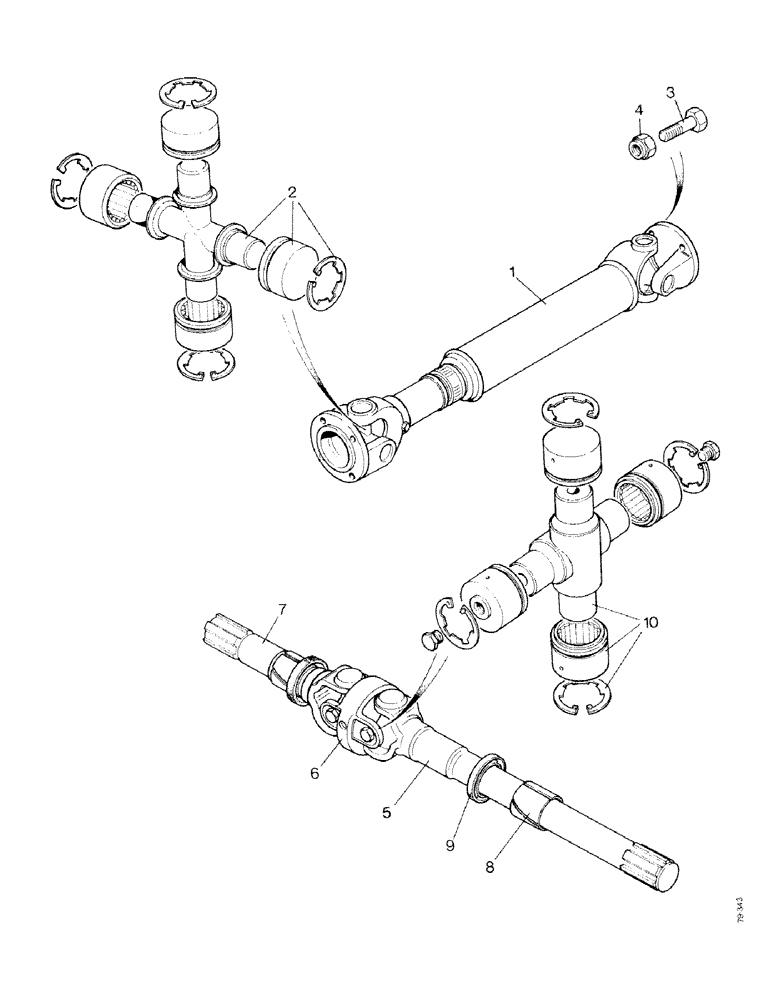

Запчасти Case IH 1490 (G08-1) - DRIVE SHAFTS - DAVID BROWN AXLE, MFD MODEL (04) - FRONT AXLE

1

K956615

SHAFT

DRIVE SHAFT ASSEMBLY, Includes Ref. 2

1шт.

2

K956438

JOURNAL

REPAIR KIT- universal joint

2шт.

3

K600529

BOLT

- special, 3/8 UNC x 1-1/8"

8шт.

4

K607327

NUT

- 3/8 UNC self-locking

8шт.

K955369

SHAFT ASSY.

HALF SHAFT ASSEMBLY, Includes Ref. 5 - 7

2шт.

5

K955372

SHAFT

DRIVE SHAFT - long

1шт.

6

K955371

JOINT

CENTER HOUSING

1шт.

The grease fitting that goes into this housing is 712992R91.

1шт.

7

K955370

DRIVE SHAFT

- short

1шт.

8

K621367

BUSHING

- half shaft

4шт.

9

K623481

SEAL

OIL SEAL - half shaft

4шт.

10

K965215

U-JOINT SPIDER

REPAIR KIT - universal joints

4шт.
