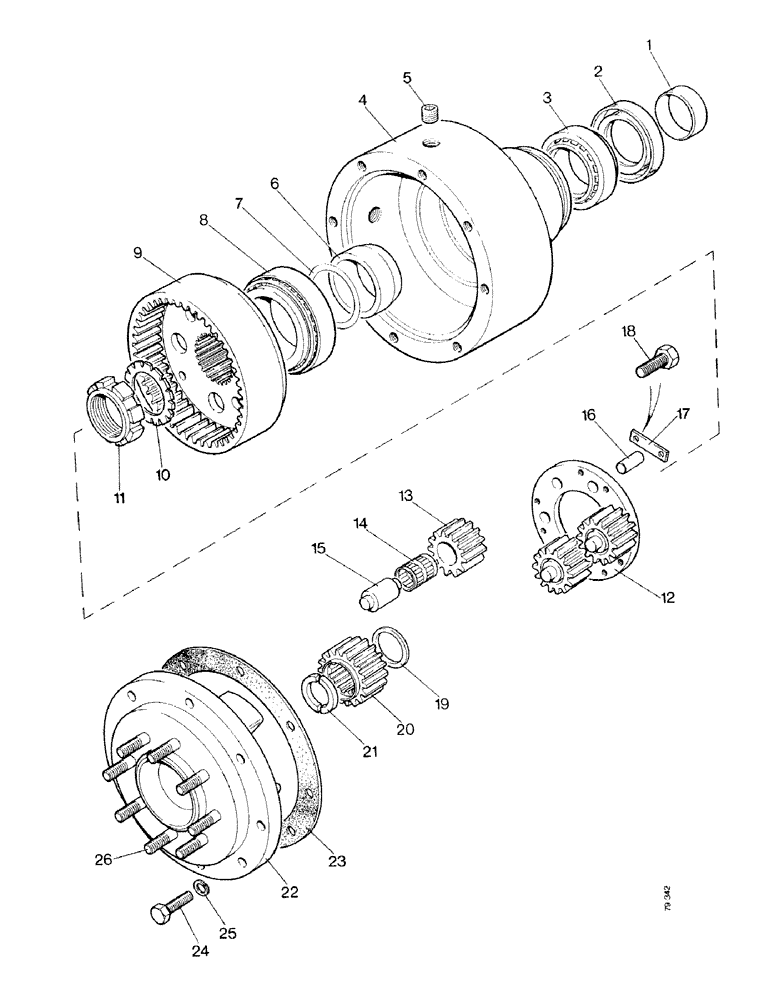

Запчасти Case IH 1490 (G07-1) - FRONT HUBS AND REDUCTION GEARS - DAVID BROWN AXLE, MFD MODEL (04) - FRONT AXLE

1

K955500

SLEEVE

2шт.

2

K623475

OIL SEAL,88.9mm ID x 114.3mm OD x 12.7mm Thk

OIL SEAL

2шт.

3

K19185

TAPERED BEARING

TAPER ROLLER BEARING

2шт.

4

K953837

HOUSING

REDUCTION CASE

2шт.

5

K14596

PLUG

4шт.

6

K951367

BUSHING

SPACER

2шт.

7

K626253

SHIM,.030" Thk

(0.762 mm) .030" Thk

1шт.

7

K626252

SHIM,.015" Thk

(0.381 mm) .015" Thk

1шт.

7

K626251

SHIM,.005" Thk

(0.127 mm) .005" Thk

1шт.

7

K626250

SHIM,.002" Thk

(0.0508 mm) .002" Thk

1шт.

8

K620121

BEARING

TAPER ROLLER BEARING

2шт.

9

K954838

GEAR

- planetary unit

2шт.

10

K85355

LOCK WASHER

TABWASHER

2шт.

11

K85359

LOCK NUT

LOCKNUT

2шт.

12

K951366

CARRIER

PLANET GEAR CARRIER

2шт.

13

K951362

GEAR

PLANET GEAR - 13 teeth

6шт.

14

K620152

NEEDLE BEARING CAGE

NEEDLE ROLLER BEARING

12шт.

15

K951361

PIN

BEARING PIN

6шт.

16

K621808

PIN

DOWEL - 5/8 x 1-1/4" (15.875 x 31.75 mm) planet gear carrier to end plate

6шт.

17

K626434

WASHER

TABWASHER - planet gear carrier to end plate

6шт.

18

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Planet gear carrier to end plate Hex, 3/8"-16 x 1", G5, Full Thd

12шт.

19

K627430

WASHER

THRUST WASHER

2шт.

20

K951363

GEAR

SUN GEAR - 16 teeth

2шт.

21

K951365

RING

SPLIT RING - half

4шт.

22

K953736

PLATE

END PLATE

2шт.

23

K200223

GASKET

- end plate to reduction case

2шт.

24

K603110

SCREW

SETSCREW - 1/2 UNC x 1-3/4", end plate to reduction case

16шт.

25

K626345

LOCK WASHER

WASHER - lock, 1/2", end plate to reduction case

16шт.

26

K608612

STUD

- 5/8 UNC x 2-3/8", front wheels

16шт.
