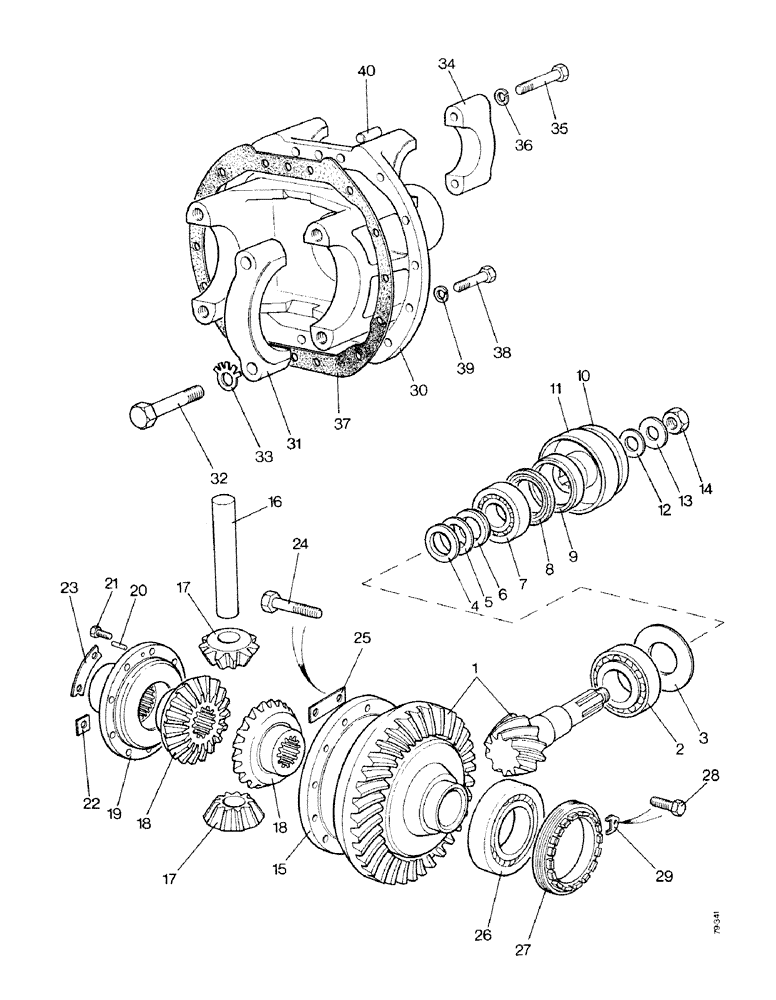

Запчасти Case IH 1490 (G06-1) - DIFFERENTIAL - DAVID BROWN AXLE, MFD MODEL (04) - FRONT AXLE

1

K964777

GEAR-SET

BEVEL GEAR AND PINION SHAFT

1шт.

2

K620131

ROLLER

TAPER ROLLER BEARING - pinion shaft

1шт.

3

K942875

SHIM

- 0.030" (0.762 mm)

1шт.

3

K942874

SHIM

- 0.010" (0.254 mm)

1шт.

3

K942873

SHIM

- 0.003" (0.0762 mm)

1шт.

3

K942872

SHIM

- 0.002" (0.0508 mm)

1шт.

4

K940969

BUSHING

SPACER - front

1шт.

5

K917848

SHIM

- 0.030" (0.762 mm)

1шт.

5

K917847

SHIM

- 0.010" (0.254 mm)

1шт.

5

K917846

SHIM

- 0.005" (0.127 mm)

1шт.

5

K917845

SHIM,35.32mm ID x 50.8mm OD x 0.05mm Thk

- 0.002" (0.0508 mm)

1шт.

6

K917844

BUSHING

SPACER - rear

1шт.

7

K620061

BEARING, ROLLER

TAPER ROLLER BEARING - pinion shaft

1шт.

8

K623484

OIL SEAL

OIL SEAL

1шт.

9

K627270

COLLAR

SPACER

1шт.

K200605

FLANGE

AND GUARD ASSEMBLY, Includes Ref. 10 and 11

1шт.

10

K951018

FLANGE

1шт.

11

K200603

GUARD

1шт.

12

K626459

SEALING WASHER

SEALING WASHER

1шт.

13

K626758

WASHER

RETAINING WASHER

1шт.

14

K617307

LOCK NUT

LOCKNUT - 3/4 UNF

1шт.

15

K954483

CAGE

DIFFERENTIAL CAGE (Replaces K942316)

1шт.

16

K951273

PIN

DIFFERENTIAL PIN

1шт.

17

K942317

DIFFERENTIAL

PINION - 10 teeth

2шт.

18

K30234

CONE PINION

DIFFERENTIAL GEAR - 16 teeth

2шт.

19

K903184

FLANGE

END PLATE

1шт.

20

K621801

PIN

DOWEL - 3/8 x 1-1/8" (9.525 x 28.575 mm) end, Serial Range: plate-cage

3шт.

21

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

End plate to cage Hex, 3/8"-16 x 1", G5, Full Thd

9шт.

22

K626372

WASHER

TABWASHER - single, end, Serial Range: plate-cage

3шт.

23

K903185

WASHER

TABWASHER - double, end, Serial Range: plate-cage

3шт.

24

K603005

SCREW

SETSCREW - 7/16 UNC x 1-1/4", cage to bevel gear

12шт.

25

K30236

WASHER

TABWASHER - double, cage to bevel gear

6шт.

26

K19010

BALL BEARING

- differential

2шт.

27

K15007

RING, LOCKING

ADJUSTER

2шт.

28

K602840

SCREW

SETSCREW - 5/16 UNC x 1/2"

2шт.

29

K626420

WASHER

TABWASHER - adjuster

2шт.

K955082

SUPPORT

DIFFERENTIAL SUPPORT BRACKET ASSEMBLY, Includes Ref. 30 - 36

1шт.

30

K955083

X

SUPPORT BRACKET

1шт.

31

NSS

NOT SOLD SEPARAT

BEARING CAP

2шт.

32

K601242

BOLT

- 5/8 UNC x 3-3/4", bearing caps to support bracket

4шт.

33

K626389

BEARING WASHER

TABWASHER - bearing caps to support bracket

4шт.

34

K955084

CAP

- steering ram cylinder

2шт.

35

K600703

BOLT

- 7/16 UNC x 2-3/4"

4шт.

36

K626344

WASHER, LOCK

WASHER - lock, 7/16"

4шт.

37

K951258

GASKET

- bracket to axle case

1шт.

38

K600602

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 5

SETSCREW - 7/16 UNC x 1-1/2"

14шт.

39

K626344

WASHER, LOCK

WASHER - lock, 7/16"

14шт.

40

K30134

PIN

DOWEL - 1/2 x 1-5/16" (12.7 x 33.338 mm)

2шт.
