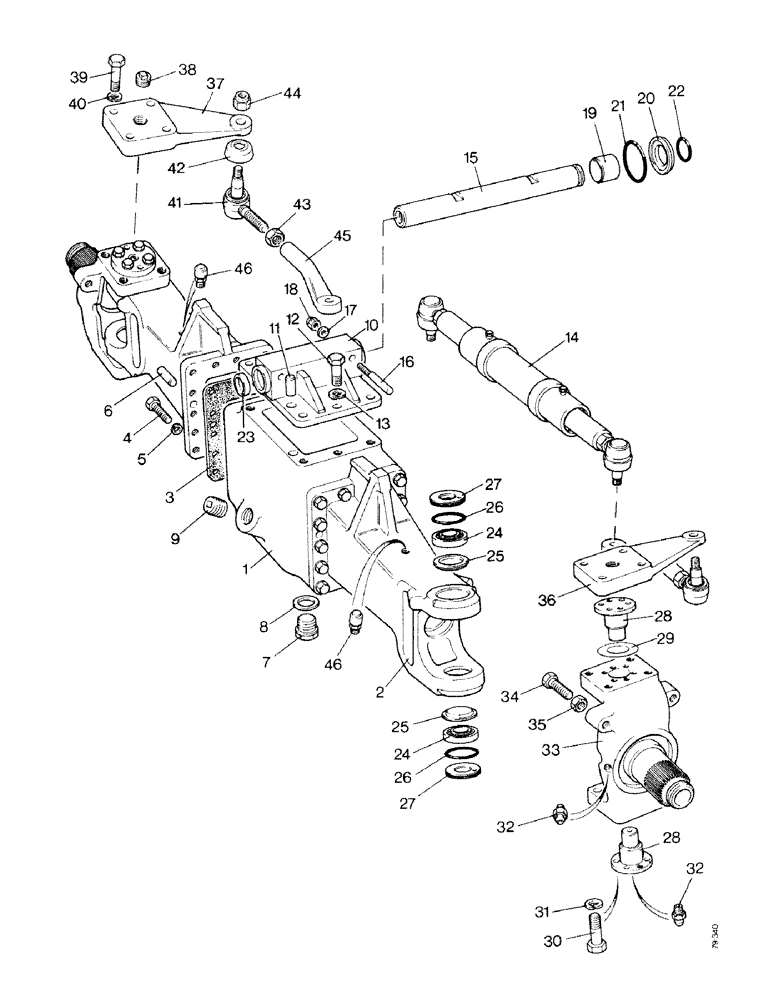

Запчасти Case IH 1490 (G05-1) - FRONT AXLE CASE, PRIOR TO S/N 11188155 - DAVID BROWN AXLE, MFD MODEL (04) - FRONT AXLE

1

K953744

HOUSING

DIFFERENTIAL HOUSING

1шт.

2

K954865

SHAFT

HALF SHAFT HOUSING

2шт.

3

K953733

GASKET

2шт.

4

K603110

SCREW

SETSCREW - 1/2 UNC x 1-3/4"

28шт.

5

K626345

LOCK WASHER

WASHER - lock, 1/2"

28шт.

6

K30134

PIN

DOWEL - 1/2 x 1-5/16" (12.7 x 33.338 mm)

4шт.

7

K623830

PLUG

- 1" BSP, Includes Ref. 8

1шт.

8

K11120

SEALING WASHER

SEALING WASHER

1шт.

9

K12362

PLUG

- 1" BSP

1шт.

10

K201704

TRUNNION

BRACKET

1шт.

11

K622902

PIN

DOWEL - 3/4 x 1-5/16" (19.05 x 33.338 mm)

2шт.

12

K603276

SCREW

BOLT - 5/8 UNC x 1-3/4"

6шт.

13

K19485

WASHER

- lock, 5/8"

6шт.

14

K955079

STEERING CYLINDER

STEERING RAM ASSEMBLY

1шт.

15

K201384

TRUNNION

PIN

1шт.

16

K609427

PIN

- 3/8 UNC

2шт.

17

K19472

WASHER

- 3/8"

2шт.

18

K607327

NUT

- 3/8 UNC, self-locking

2шт.

19

K15597

BUSHING

4шт.

20

K947188

FRICTION WASHER

THRUST WASHER

2шт.

21

K24764

O-RING

SEALING RING

2шт.

22

K15596

RING,3.63mm Thk x 31.34mm ID

O-RING

1шт.

23

K623794

CORE

PLUG

1шт.

24

K620116

TAPERED BEARING,31.75mm ID x 68.26mm OD x 22.23mm W

ROLLER BEARING

4шт.

25

K951274

PLATE

4шт.

26

K14499

O-RING,2.437" ID x 2.715" OD x 0.139"

- 2-7/16" (61.912 mm) internal diameter

4шт.

27

K951275

DISC

SEALING DISC

4шт.

28

K951276

PIN

BEARING PIN

4шт.

29

K626939

SHIM,.030" Thk

(0.762 mm) .030" Thk

1шт.

29

K626938

SHIM,.010" Thk

(0.254 mm) .010" Thk

1шт.

29

K626937

SHIM,.003" Thk

(0.0762 mm) .003" Thk

1шт.

29

K626936

SHIM,.002" Thk

(0.0508 mm) .002" Thk

1шт.

30

K603005

SCREW

SETSCREW - 7/16 UNC x 1-1/4"

16шт.

31

K626344

WASHER, LOCK

WASHER - lock, 7/16"

16шт.

32

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

6шт.

33

K954890

SHAFT

STUB AXLE

2шт.

34

K603318

BOLT

SETSCREW - 5/8 UNC x 3", steering stop

4шт.

35

425-1410

JAM NUT,Jam, 5/8"-11, G5

LOCKNUT - steering stop

4шт.

36

K953567

LEVER

STEERING LEVER - left-hand

1шт.

37

K953568

LEVER

STEERING LEVER - right-hand

1шт.

38

K19578

PLUG

TAPER PLUG - 3/4 BSP

2шт.

39

K601362

BOLT

- 5/8 UNC x 2-3/4"

8шт.

40

K19485

WASHER

- lock, 5/8"

8шт.

41

K915962

BALL JOINT

BALL SOCKET ASSEMBLY, Includes Ref. 42 - 46

2шт.

42

K962155

CAP

COVER - rubber

1шт.

43

K622500

LOCK NUT

LOCKNUT - 3/4" Whitworth

1шт.

44

131-377

LOCK NUT,5/8"-11, GC

LOCKNUT - 5/8 UNF

1шт.

45

K951408

LINK

STEERING LINK

2шт.

46

K623800

BREATHER

2шт.
