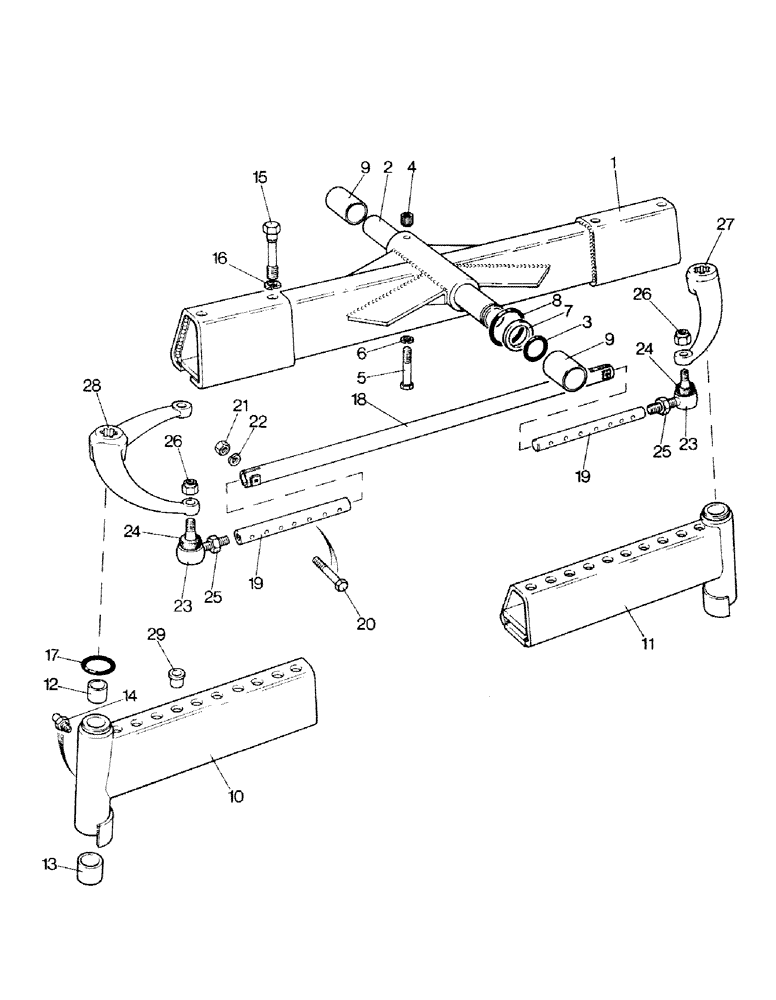

Запчасти Case IH 1490 (G04-1) - FRONT AXLE BEAM FOR SIDE-MOUNTED STEERING CYLINDER, 2 WHEEL DRIVE, NOT NORTH AMERICA (04) - FRONT AXLE

1

K957146

BEAM

CENTER BEAM

1шт.

2

K947516

TRUNNION

PIN

1шт.

3

K15596

RING,3.63mm Thk x 31.34mm ID

O-RING - 1-1/4" (31.75 mm) internal diameter

1шт.

4

K913092

NUT

SCREWED BUSHING

1шт.

5

K600505

BOLT

- 3/8 UNC x 2-3/4"

1шт.

6

K19482

SPRING WASHER

WASHER - lock, 3/8"

1шт.

7

K947188

FRICTION WASHER

THRUST WASHER

2шт.

8

K24764

O-RING

- 2-5/8" (66.675 mm) internal diameter

2шт.

9

K15597

BUSHING

- main frame

4шт.

10

K962815

BEAM

EXTENSION - left-hand

1шт.

11

K962816

BEAM

EXTENSION - right-hand, Includes Ref. 12 and 13

1шт.

12

K621331

BUSHING

- upper

1шт.

13

K621367

BUSHING

- lower

1шт.

14

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

15

K601661

BOLT

- 7/8 UNC x 3-3/4, special

4шт.

16

K626350

SPRING

WASHER - lock, 7/8"

4шт.

17

K623524

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

- 2-1/2" (63.5 mm) internal diameter

2шт.

18

K926288

TUBE

SPACER TUBE - 35-3/4" (908.05 mm)

1шт.

19

K906210

ROD

TRACK ROD

2шт.

20

K600316

BOLT

- 5/16 UNC x 2-1/4"

2шт.

21

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC

2шт.

22

K19481

SPRING WASHER

WASHER - lock, 5/16"

2шт.

23

K908071

BALL JOINT

BALL AND SOCKET ASSEMBLY, Includes Ref. 24 - 26

2шт.

24

K962155

CAP

DIRT SEAL

1шт.

25

K622500

LOCK NUT

LOCKNUT - 3/4", special

1шт.

26

231-2448

LOCK NUT,1/2"-20, GB

NUT - 1/2 UNF, self-locking

1шт.

27

K918933

LEVER

STEERING LEVER - right-hand

1шт.

28

K918932

LEVER

STEERING LEVER - left-hand

1шт.

29

K628089

PLUG

PLASTIC PLUG - beam extension holes

12шт.
