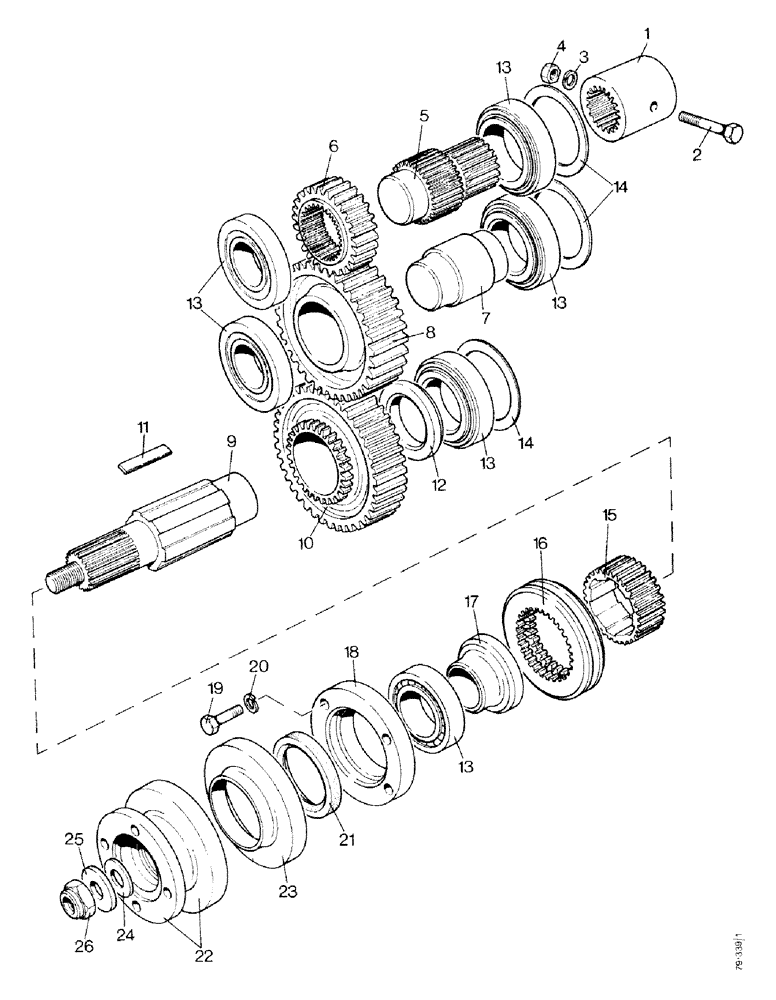

Запчасти Case IH 1490 (D22-1) - GEARS AND SHAFTS FOR TRANSFER GEARBOX, DAVID BROWN AXLE, MFD MODEL (03) - POWER TRAIN

1

K956126

COUPLING, BREAK AWAY

COUPLING - transfer gearbox to main gearbox

1шт.

2

K600322

BOLT

- 5/16 UNC x 2-1/2"

1шт.

3

K19481

SPRING WASHER

WASHER - lock, 5/16"

1шт.

4

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC

1шт.

5

K951004

SHAFT

INPUT SHAFT

1шт.

6

K951005

GEAR

INPUT GEAR

1шт.

7

K951007

SHAFT

IDLER SHAFT

1шт.

8

K951006

GEAR

IDLER GEAR

1шт.

9

K956085

SHAFT

OUTPUT SHAFT

1шт.

10

K956084

GEAR

OUTPUT GEAR

1шт.

11

K940989

PLATE

BEARING PAD - output gear

6шт.

12

K951010

BUSHING

SPACER

1шт.

13

K620194

BEARING

TAPER ROLLER BEARING

6шт.

14

K950878

SHIM

- 0.030" (0.762 mm)

1шт.

14

K950879

SHIM

- 0.010" (0.254 mm)

1шт.

14

K950880

SHIM

- 0.003" (0.0762 mm)

1шт.

14

K950881

SHIM

- 0.002" (0.0508 mm)

1шт.

15

K955836

GEAR

FIXED GEAR - dog clutch

1шт.

16

K943644

SYNCHRO RING

SLIDING GEAR - dog clutch

1шт.

17

K951011

BUSHING

- special

1шт.

18

K951012

HOUSING

- oil seal

1шт.

19

K602807

SCREW

SETSCREW - 5/16 UNC x 1-1/4"

4шт.

20

K19481

SPRING WASHER

WASHER - lock, 5/16"

4шт.

21

K623483

OIL SEAL

OIL SEAL - 70 x 50 x 10 mm

1шт.

22

K200605

FLANGE

AND GUARD ASSEMBLY

1шт.

23

K200603

GUARD

1шт.

24

K626459

SEALING WASHER

SEALING WASHER

1шт.

25

K626758

WASHER

RETAINING WASHER

1шт.

26

K617307

LOCK NUT

LOCKNUT

1шт.
