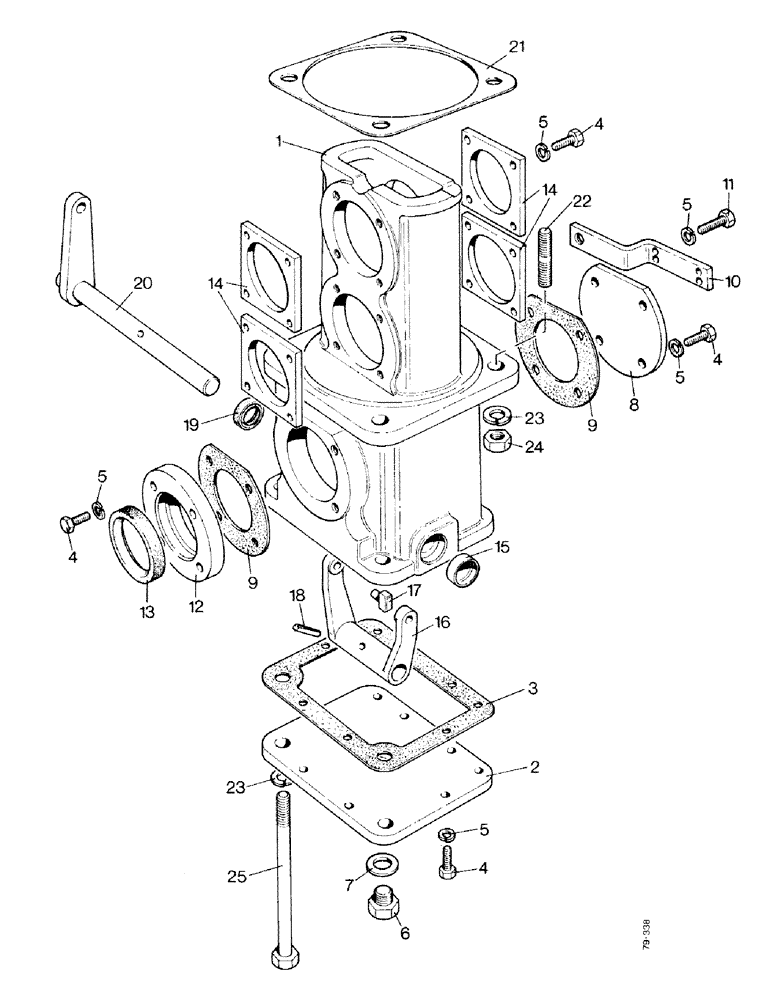

Запчасти Case IH 1490 (D21-1) - CASE FOR TRANSFER GEARBOX, DAVID BROWN AXLE, MFD MODEL (03) - POWER TRAIN

1

K956081

TRANSFER BOX

CASE

1шт.

2

K956082

COVER

BOTTOM COVER

1шт.

3

K956083

GASKET

- cover

1шт.

4

K602849

SCREW

SETSCREW - 5/16 UNC x 7/8"

26шт.

5

K19481

SPRING WASHER

WASHER - lock, 5/16"

28шт.

6

K623849

PLUG

DRAIN PLUG - 1/2 BSP

1шт.

7

K626317

WASHER

- aluminum

1шт.

8

K951013

CAP

END COVER - rear

1шт.

9

K951014

GASKET

- end cover

2шт.

10

K300879

BRACKET

- operating cable

1шт.

11

K602807

SCREW

SETSCREW - 5/16 UNC x 1-1/4"

2шт.

12

K951012

HOUSING

OIL SEAL HOUSING

1шт.

13

K623483

OIL SEAL

OIL SEAL - 70 x 50 x 10 mm

1шт.

14

K955599

COVER

END PLATE

4шт.

15

K623790

CORE

PLUG - 1-1/8" (28.575 mm) diameter

1шт.

16

K956086

FORK

- selector

1шт.

17

K956087

TRUNNION

PIN - fork

1шт.

18

K623776

GROOVED PIN,1/4" x 1 1/8", Type A

Pin, Grooved, , fork to shaft 1/4" x 1 1/8", Type A

1шт.

19

K623407

OIL SEAL

OIL SEAL - shaft

1шт.

20

K202465

SELECTOR

SHAFT

1шт.

21

K946451

GASKET

- laminated, transfer, Serial Range: gearbox-frame

1шт.

22

K608611

STUD

- 5/8 UNC, transfer, Serial Range: gearbox-frame

2шт.

23

K19485

WASHER

- lock, 5/8", transfer, Serial Range: gearbox-frame

4шт.

24

280374

NUT,Hex, 5/8" - 11, Gr 5

Transfer gearbox to frame 5/8"-11, G5

2шт.

25

K601228

BOLT

- 5/8 UNC x 7-1/2", transfer, Serial Range: gearbox-frame

2шт.
