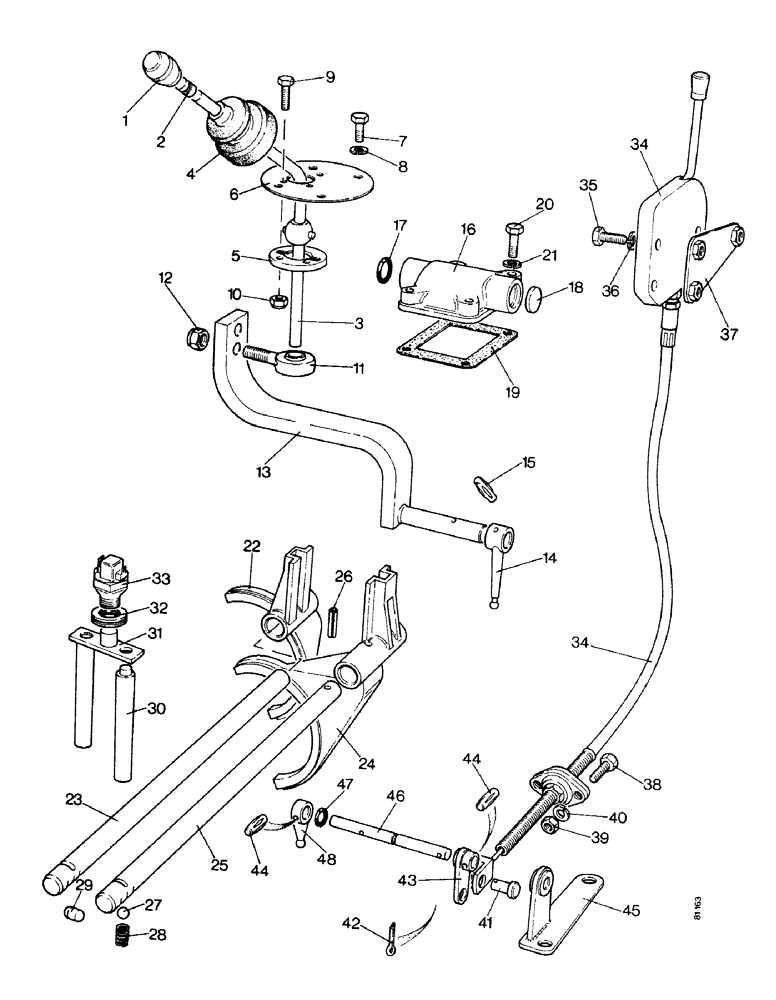

Запчасти Case IH 1490 (D18-1) - GEAR SHIFT LEVERS - POWER SHIFT, HIGH PLATFORM, CAB MODEL, P.I.N. 11182783 AND AFTER (03) - POWER TRAIN

1

K203121

BALL KNOB

KNOB - lever

1шт.

The heading on this page should read "for units with or without cab".

1шт.

2

K628474

RING

- retaining

1шт.

3

K204768

SELECTOR

LEVER - range

1шт.

4

K204741

BELLOWS

BOOT - rubber

1шт.

5

K204810

HOUSING

- ball

1шт.

6

K204803

PLATE

- lever

1шт.

7

K650643

BOLT

SETSCREW - M8 x 25

4шт.

8

K651848

WASHER

- lock, 8 mm

4шт.

9

K602743

SCREW,1/4" - 20 x 1 1/2", Gr 5

SETSCREW - 1/4 UNC x 1-1/2"

4шт.

10

K607300

NUT

- 1/4 UNC, self-locking

4шт.

11

K204680

ROD

BALL JOINT - shaft

1шт.

12

131-377

LOCK NUT,5/8"-11, GC

NUT - 5/8 UNC, self-locking

1шт.

13

K204767

SHAFT

AND LEVER - shifter

1шт.

14

K202079

SELECTOR

LEVER - selector

1шт.

15

K623778

PIN, GROOVED

PIN - roll, 5/16 x 1-1/2" (7.938 x 38.1 mm)

1шт.

16

K950243

HOUSING

- shaft

1шт.

17

K628875

O-RING

- 7/8" (22.225 mm) internal diameter

1шт.

18

K623810

PLUG

CORE PLUG - 1" (25.4 mm) diameter

1шт.

19

K950543

GASKET,0.2mm Thk

- housing to gearbox cover

1шт.

20

K600365

BOLT

- 5/16 UNC x 1-1/2", housing to gearbox cover

4шт.

21

K19481

SPRING WASHER

WASHER - lock, 5/16", housing to gearbox cover

4шт.

22

K917217

SELECTOR

FORK - first and third range

1шт.

23

K917216

SELECTOR

ROD - first and third range

1шт.

24

K917219

SELECTOR

FORK - second and reverse range

1шт.

25

K917218

SELECTOR

ROD - second and reverse range

1шт.

26

K623887

PIN,5.21mm OD x 25.4mm L

- 3/16 x 1" (4.762 x 25.4 mm)

2шт.

27

K13506

BALL

STEEL BALL - 3/8" (9.525 mm)

4шт.

28

K13507

SPRING

- return

2шт.

29

K30430

LOCKING DEVICE

LOCK - gear

1шт.

30

K954208

GUIDE

PLUNGER - safety switch

1шт.

31

K954204

PLUNGER

- switch

1шт.

32

K651848

WASHER

- lock, 8 mm

3шт.

32

K626895

SHIM,.002" Thk

(0.0508 mm) .002" Thk

1шт.

32

K626858

SHIM,.005" Thk

(0.127 mm) .005" Thk

1шт.

32

K626894

SHIM,.010" Thk

(0.254 mm) .010" Thk

1шт.

33

K200652

NEUTRAL START SWITCH

SAFETY SWITCH - starter

1шт.

34

K203845

CABLE

LEVER AND CABLE ASSEMBLY - control

1шт.

35

K652307

SETSCREW - M8 x 55

3шт.

36

K651848

WASHER

- lock, 8 mm

3шт.

37

K302209

PLATE

BACKPLATE - lever

1шт.

38

K652475

SCREW

SETSCREW - M6 x 16

2шт.

39

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.

40

K651847

WASHER, LOCK

WASHER - lock, 6 mm

2шт.

41

K14227

PIN

- clevis

1шт.

42

K623607

PIN

- cotter

1шт.

43

K203049

LEVER

- operating

1шт.

44

K623729

PIN

- 3/16 x 3/4" (4.762 x 19.05 mm)

2шт.

45

K203050

BRACKET

- cable shaft

1шт.

46

K203048

SELECTOR

SPINDLE - selector

1шт.

47

K24554

O-RING

- 3/8" (9.525 mm)

1шт.

48

K201835

SELECTOR

LEVER - finger

1шт.
