Запчасти Case IH 1490 (D14-1) - GEAR SHIFT LEVERS, SYNCHROMESH TRACTOR, HIGH PLATFORM, CAB MODEL PRIOR TO P.I.N. 11182575 (03) - POWER TRAIN

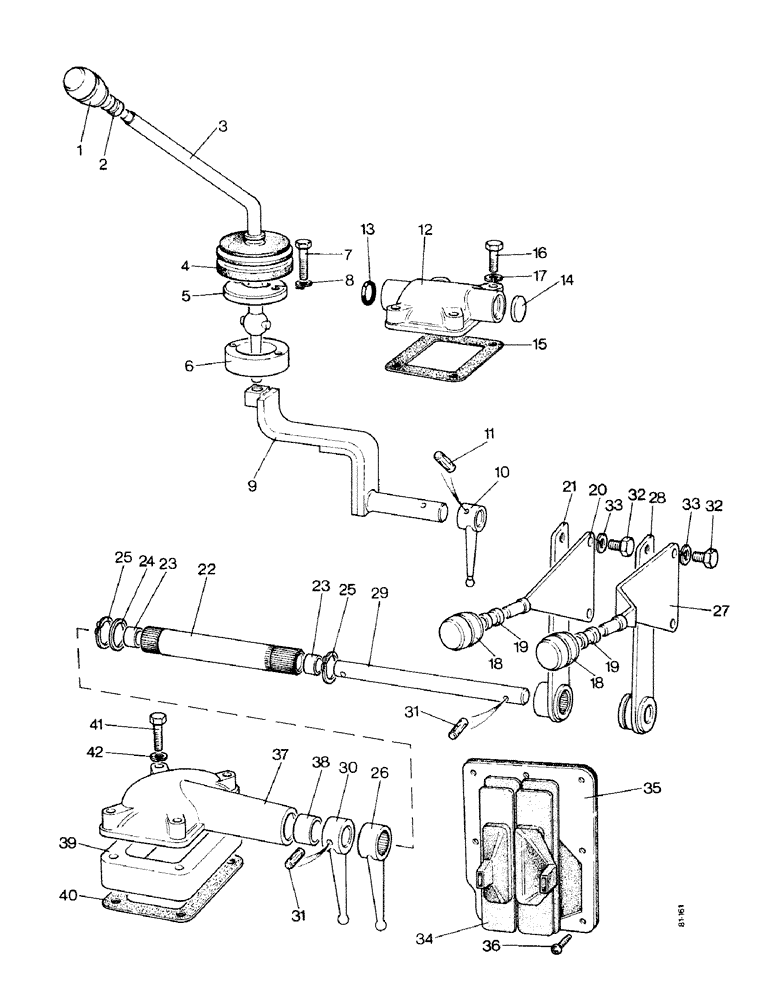

Схема запчастей Case IH 1490 - (D14-1) - GEAR SHIFT LEVERS, SYNCHROMESH TRACTOR, HIGH PLATFORM, CAB MODEL PRIOR TO P.I.N. 11182575 (03) - POWER TRAIN
32
9
38
18
13
36
42
24
22
16
31
7
18
26
29
19
5
21
31
23
19
34
39
40
12
6
30
25
41
28
27
11
25
1
35
17
23
3
33
8
2
15
10
14
20
32
4
33
37

Артикул

Название

Примечание

Количество

1

K203120

BUTTON

KNOB - gear lever

1шт.

2

K628474

RING

- retaining

1шт.

3

K204768

SELECTOR

GEAR LEVER - 1-2-3 and reverse (Replaces K260540)

1шт.

K204768 is the gear lever. K260540 is a kit used to modify the gear shift.

1шт.

Replaced P/N K202613, which had a length of 5.75 from roll pin in lever to the bottom tip.

1шт.

4

K301317

COVER

BOOT - rubber

1шт.

5

K202615

BALL

HOUSING - upper

2шт.

6

K202617

BUSHING

SPACER - housing

1шт.

7

61-448

HEX SOC SCREW,1/4"-20 x 3"

BOLT - 1/4 UNC x 3" (Replaces K606520)

2шт.

8

K626341

SPRING WASHER

WASHER - lock, 1/4"

2шт.

9

K203440

SELECTOR

SHAFT AND ARM - shift lever

1шт.

10

K202078

SELECTOR

LEVER - selector

1шт.

11

K623778

PIN, GROOVED

PIN - roll, 5/16 x 1-1/2" (7.938 x 38.1 mm)

1шт.

12

K950243

HOUSING

- shaft

1шт.

13

K628875

O-RING

- 7/8" (22.225 mm) internal diameter

1шт.

14

K623810

PLUG

CORE PLUG - 1" (25.4 mm) diameter

1шт.

15

K950543

GASKET,0.2mm Thk

- housing to gearbox cover

1шт.

16

K600365

BOLT

- 5/16 UNC x 1-1/2", housing to gearbox cover

4шт.

17

K19481

SPRING WASHER

WASHER - lock, 5/16", housing to gearbox cover

4шт.

18

K200239

BUTTON

KNOB - range levers

2шт.

19

K628474

RING

- retaining

2шт.

20

K202454

BRACKET

HAND LEVER - high-low

1шт.

21

K950429

LEVER

- high-low

1шт.

22

K950001

SELECTOR

TUBE - high-low

1шт.

23

K621303

BUSHING

- high-low

2шт.

K19481

SPRING WASHER

WASHER - lock, 5/16", high-low

4шт.

24

K950002

BUSHING

WASHER - 1" (25.4 mm) external, high-low

2шт.

25

K11128

CIRCLIP

RING - snap, 1" (25.4 mm) external, high-low

2шт.

26

K950371

SELECTOR

LEVER - high-low

1шт.

27

K203117

LEVER

HAND LEVER - slow-normal

1шт.

28

K202624

LEVER

- slow normal

1шт.

29

K950003

SELECTOR

SHAFT - slow-normal

1шт.

30

K950370

SELECTOR

LEVER - slow-normal

2шт.

31

K623726

PIN

- 1/4 x 1-1/2" (6.35 x 38.1 mm) slow-normal

1шт.

32

K602840

SCREW

SETSCREW - 5/16 UNC x 1/2"

4шт.

33

K19481

SPRING WASHER

WASHER - lock, 5/16

4шт.

34

K301331

CAP

BOOT - lever

1шт.

35

K301349

PLATE

- retaining

1шт.

36

K652829

SCREW

SELF TAPPING SCREW - no. 10 x 16

8шт.

37

K950000

HOUSING

- shaft

1шт.

38

K628750

BUSHING

- shaft housing

1шт.

39

K950754

BUSHING

SPACER - housing to gearbox cover

1шт.

40

K950543

GASKET,0.2mm Thk

- housing to gearbox cover

2шт.

41

K600217

BOLT

- 5/16 UNC x 3", housing to gearbox cover

4шт.

42

K19481

SPRING WASHER

WASHER - lock, 5/16", housing to gearbox cover

4шт.

Выбрано товаров: 45
