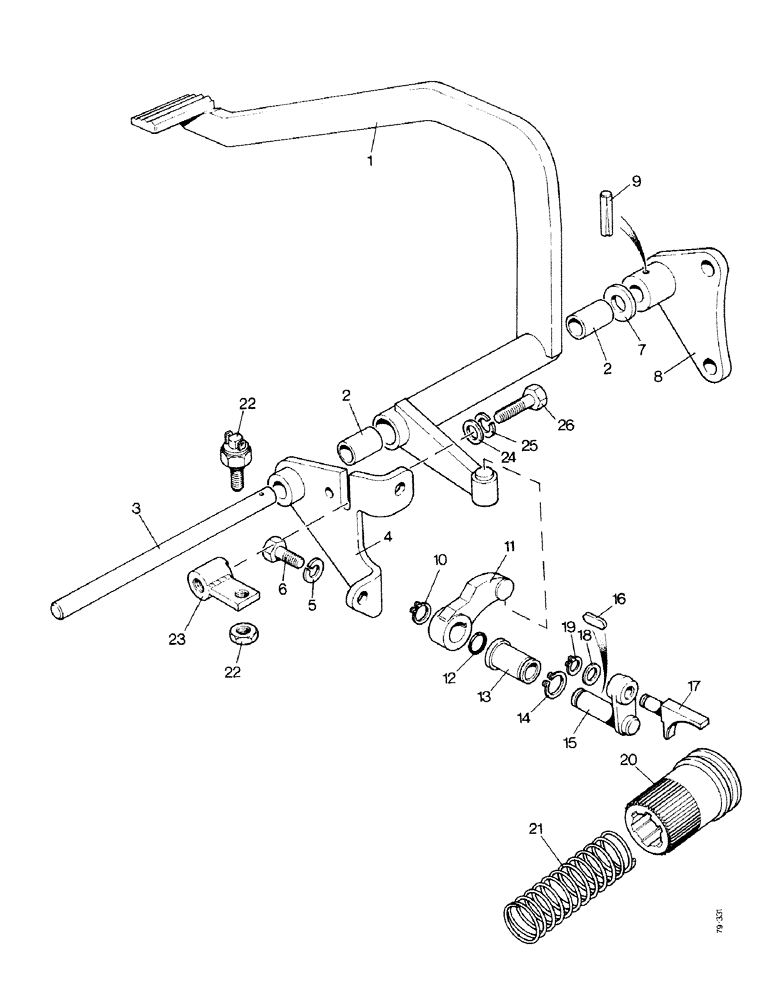

Запчасти Case IH 1490 (D11-1) - DIFFERENTIAL LOCK, LOW PROFILE (03) - POWER TRAIN

1

K203106

LOCK

PEDAL - differential lock

1шт.

2

K621377

BUSHING

- pedal

2шт.

3

K203520

SHAFT

SPINDLE

1шт.

4

K203087

LOCK

BRACKET

1шт.

5

K19482

SPRING WASHER

WASHER - lock, 3/8"

2шт.

6

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

7

K202570

BUSHING

SPACER

1шт.

8

K203122

LOCK

BRACKET

1шт.

9

K19562

GROOVED PIN,3/16" x 1 1/4", Type A

Pin, Grooved, (4.762 x 31.75 mm) 3/16" x 1 1/4", Type A

1шт.

10

K11797

RING, SNAP

RING - snap

1шт.

11

K903228

LEVER

1шт.

12

K24676

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

- 5/8" (15.875 mm) internal diameter

1шт.

13

K903494

BUSHING

- rear axle case

1шт.

14

K34454

RING, SNAP

RING - snap, bushing, 7/8" (22.225 mm) external

1шт.

15

K903197

SHAFT

AND ARM

1шт.

16

K622309

KEY

- 3/16 x 5/32 x 3/4" (4.762 x 3.969 x 19.05 mm)

1шт.

17

K903226

SELECTOR

FORK

1шт.

18

K626674

WASHER

SPECIAL - 1/2" (12.7 mm)

1шт.

19

K11302

RING, SNAP

RING - snap, 1/2" (12.7 mm) external

1шт.

20

K903191

SLEEVE

LOCKING SLEEVE

1шт.

21

K625119

SPRING

RETURN SPRING

1шт.

22

K300733

SWITCH

- warning lamp, early tractors

1шт.

23

K201986

BRACKET

- switch, early tractors

1шт.

24

K19472

WASHER

- 3/8" (9.525 mm) early tractors

1шт.

25

K19482

SPRING WASHER

WASHER - lock, 3/8", early tractors

1шт.

26

K600475

BOLT

- 3/8 UNC x 1-1/2", early tractors

1шт.
