Запчасти Case IH 1490 (D10-1) - DIFFERENTIAL, SYNCHROMESH, POWER SHIFT, MFD (03) - POWER TRAIN

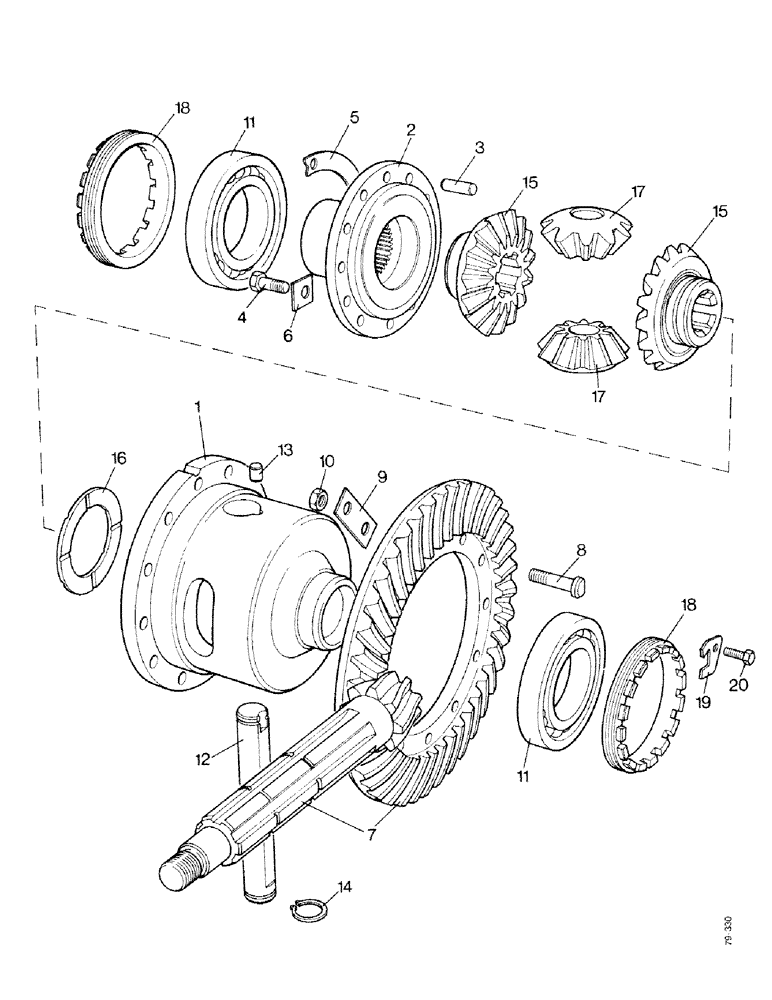

Схема запчастей Case IH 1490 - (D10-1) - DIFFERENTIAL, SYNCHROMESH, POWER SHIFT, MFD (03) - POWER TRAIN
10
8
14
17
12
18
15
9
11
20
15
4
17
13
1
11
3
6
5
19
16
7
18
2

Артикул

Название

Примечание

Количество

1

K954483

CAGE

- differential

1шт.

2

K903184

FLANGE

PLATE - end

1шт.

3

K621801

PIN

DOWEL - 3/8 x 1-1/8" (9.525 x 28.575 mm)

3шт.

4

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

9шт.

5

K903185

WASHER

TABWASHER - end plate bolt

3шт.

6

K626372

WASHER

TABWASHER - end plate bolt

3шт.

7

K964873

GEAR-SET

BEVEL PINION SHAFT AND SPIRAL GEAR - differential (Synchromesh)

1шт.

7

K965895

BEVEL GEAR

BEVEL PINION SHAFT AND SPIRAL GEAR (See Figure D03-1) (MFD)

1шт.

7

K962894

GEAR-SET

BEVEL PINION SHAFT AND SPIRAL GEAR - differential (Power Shift)

1шт.

8

K905664

WHEEL BOLT

- 7/16 UNC, special

12шт.

9

K30236

WASHER

TABWASHER - pinion bolt

6шт.

10

129-104

NUT,7/16"-14, G5

6шт.

11

K19010

BALL BEARING

BEARING - ball

2шт.

12

K951955

PIN

- 1-1/8" (28.575 mm) diameter

1шт.

13

K621858

PIN

DOWEL - pin

1шт.

14

K621535

RING, SNAP

RING - snap, 1-1/8" (28.575 mm) external

2шт.

15

K30234

CONE PINION

BEVEL GEAR - 16 teeth

2шт.

16

K940805

WASHER, THRUST

WASHER - thrust

1шт.

17

K942317

DIFFERENTIAL

BEVEL GEAR - 10 teeth

2шт.

18

K15007

RING, LOCKING

ADJUSTER - pinion

2шт.

19

K626420

WASHER

PLATE - locking

2шт.

20

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

SETSCREW - 5/16 UNC

2шт.

Выбрано товаров: 22
