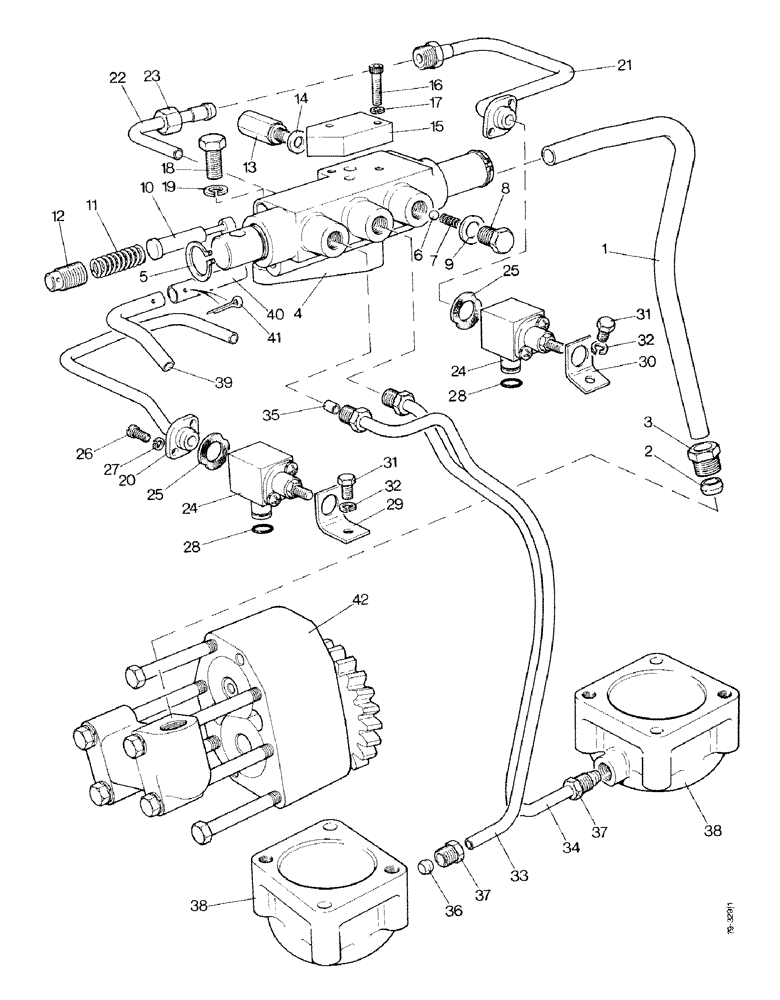

Запчасти Case IH 1490 (D08-1) - CONTROL VALVES AND PIPES, POWER SHIFT (03) - POWER TRAIN

1

K201836

PIPE,9.875, 5.437" L

- connector to valve inlet

1шт.

2

K11904

FERRULE

SLEEVE - 1/2" (12.7 mm)

2шт.

3

K617953

TUBE NUT

TUBING NUT - 3/4 UNF (19.05 mm)

2шт.

4

K959400

VALVE

CONTROL VALVE ASSEMBLY, Includes Ref. 5 - 14

1шт.

5

K34454

RING, SNAP

RING - snap, 7/8 " (22.225 mm) external

1шт.

6

K17063

BALL

STEEL BALL - 1/4" (6.35 mm)

1шт.

7

K625208

SPRING

- detent

1шт.

8

K619538

PLUG

- 7/16 UNF (11.112 mm) special

1шт.

9

K626788

WASHER

ALUMINUM WASHER - 7/16" (11.112 mm)

1шт.

10

K203026

PISTON

PLUNGER - relief valve

1шт.

11

K625206

SPRING

1шт.

12

K202400

VALVE

ADJUSTER - 3/8 BSP

1шт.

13

K623847

PLUG

- 1/8 BSP, special

1шт.

14

K16732

WASHER

COPPER WASHER - 5/8" (15.875 mm)

1шт.

15

K202125

PLATE

RESTRICTOR PLATE

1шт.

16

K606500

SCREW

SETSCREW - 1/4 UNC x 1/2"

2шт.

17

K626341

SPRING WASHER

WASHER - lock, 1/4"

2шт.

18

K602983

SCREW

SETSCREW - 3/8 UNC x 7/8"

2шт.

19

K19482

SPRING WASHER

WASHER - lock, 3/8"

2шт.

20

K203204

PIPE,0.312" OD x 3.687, 5.437" L

- front sequence valve

1шт.

21

K203203

PIPE,0.312" OD x 4.833, 3.812" L

- union to rear sequence valve

1шт.

22

K202168

CONNECTOR, ELEC,0.312" OD x 1.75, 2.625" L

PIPE - control valve to union

1шт.

23

K19644

FITTING

UNION NUT - 1/4 BSP

1шт.

24

K963539

VALVE

SEQUENCE VALVE ASSEMBLY

2шт.

25

K626460

SEALING WASHER

SEALING WASHER

2шт.

26

K615403

SCREW

- no. 10 UNF x 3/8"

8шт.

27

K626340

RING

WASHER - lock, 3/16"

8шт.

28

K24554

O-RING

- 3/8" (9.525 mm) internal diameter

2шт.

29

K940535

PLATE

RETAINING PLATE - front valve

1шт.

30

K940534

PLATE

RETAINING PLATE - rear valve

1шт.

31

K602700

SCREW,1/4" - 20 x 3/8"

SETSCREW - 1/4 UNC x 3/8"

2шт.

32

K626341

SPRING WASHER

WASHER - lock, 1/4"

2шт.

33

K202166

PIPE

- front brake band cylinder

1шт.

34

K202167

PIPE

- rear brake band cylinder

1шт.

35

K943460

PLUG

RESTRICTOR PLUG - brake pipes

2шт.

36

K622401

RING

SLEEVE - 5/16" (7.938 mm)

6шт.

37

K617951

TUBE NUT

TUBING NUT - 1/2 UNF (12.7 mm)

6шт.

38

K965766

BRAKE

CYLINDER AND PISTON - brake bands

2шт.

39

K202165

PIPE

- front unit lubrication

1шт.

40

K942700

PIPE,0.375" OD x 2.25" L

CONNECTOR - valve to pipe

1шт.

41

K19523

PIN

- cotter, 1/16 x 3/4" (1.588 x 19.05 mm)

1шт.

42

K963524

PUMP

ASSEMBLY - see Figure D7

1шт.
