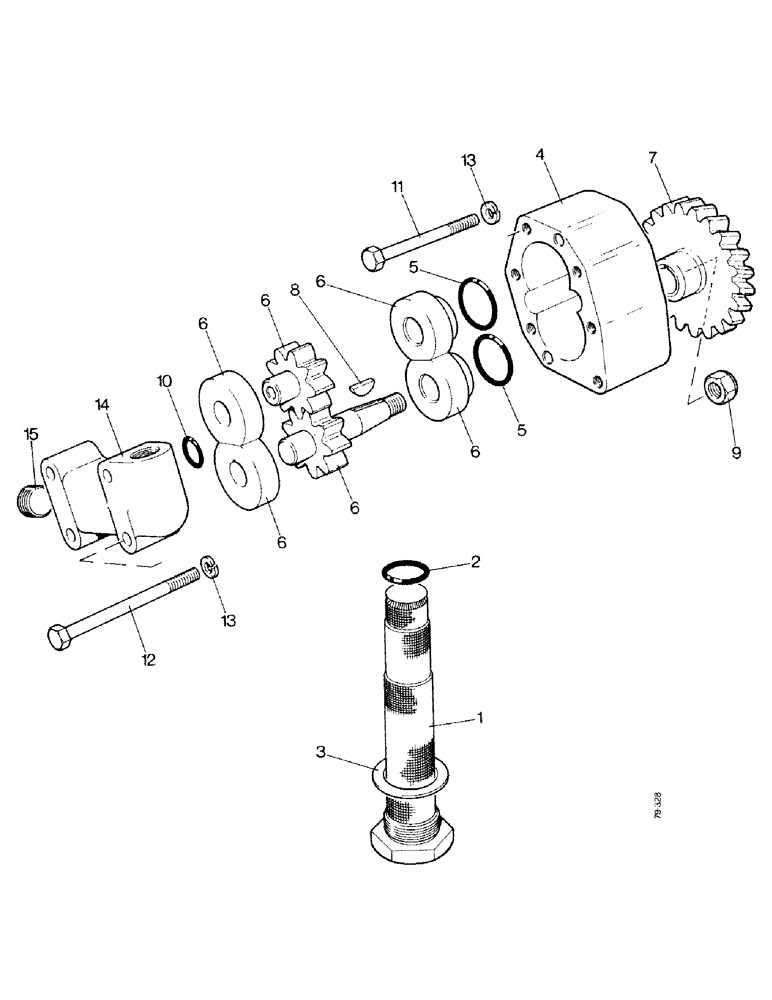

Запчасти Case IH 1490 (D07-1) - PUMP FOR GEARBOX, POWER SHIFT (03) - POWER TRAIN

1

K942039

FILTER

- pump inlet

1шт.

2

K24555

O-RING,0.737" ID x 0.943" OD x 0.103"

- 3/4" (19.05 mm) internal diameter

1шт.

3

K11120

SEALING WASHER

SEALING WASHER - 1-1/4" (31.75 mm) internal diameter

1шт.

4

K963524

PUMP

ASSEMBLY, Includes Ref. 5 and 6

1шт.

5

K962993

SEALING RING

- o-rings

1шт.

6

K962992

ROTOR

KIT - rotors and bearings

1шт.

7

K928670

GEAR

1шт.

8

K19604

KEY

- Woodruff no. 405

1шт.

9

K617303

LOCK NUT

- 7/16 UNF, self-locking

1шт.

10

K623714

O-RING,0.612" ID x 0.818" OD x 0.103"

- 5/8" (15.875 mm) internal diameter

3шт.

11

K600218

BOLT

- 5/16 UNC x 3-1/4"

2шт.

12

K600223

BOLT

- 5/16 UNC x 4-1/2"

4шт.

13

K19481

SPRING WASHER

WASHER - lock, 5/16"

6шт.

14

K923653

CONNECTOR, ELEC

CONNECTOR - pump outlet

1шт.

15

K619539

PLUG

- 3/4 UNF (19.05 mm)

1шт.
