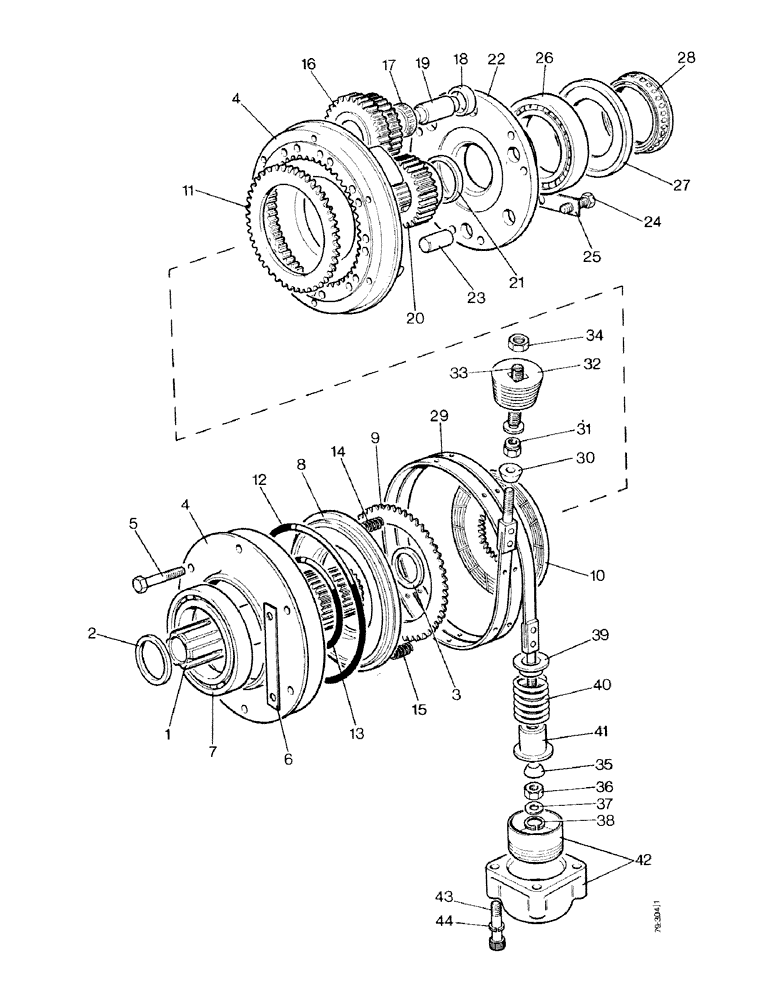

Запчасти Case IH 1490 (D06-1) - REAR PLANETARY UNIT, POWER SHIFT (03) - POWER TRAIN

1

K948486

DRIVE SHAFT

DRIVESHAFT

1шт.

2

K908509

WASHER

THRUST WASHER - front

1шт.

3

K917185

WASHER

THRUST WASHER - inner

1шт.

4

K917836

CARRIER

AND CLUTCH CYLINDER, Includes Ref. 5 and 6

1шт.

5

K600324

BOLT

- 5/16 UNC x 1-3/4"

6шт.

6

K626386

WASHER

TABWASHER

3шт.

7

K620082

BEARING, BALL

BALL BEARING

1шт.

8

K943958

PISTON

- clutch cylinder

1шт.

K262538

CLUTCH PACK

CLUTCH PLATE PACK - selective assembly (Replaces K963594), Includes Ref. 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

CLUTCH PLATE - steel

4шт.

10

K940877

BRAKE

CLUTCH PLATE - grooved faces (Replaces NSS)

3шт.

10

K904795

CLUTCH

PLATE - plain bronze faces (Replaces NSS)

1шт.

11

NSS

NOT SOLD SEPARAT

BACKING PLATE

1шт.

12

K623576

O-RING,6.975" ID x 7.525" OD x 0.275"

- 7" (177.8 mm) internal diameter

1шт.

13

K623575

O-RING,0.21" Thk x 3.975" ID, -345, Cl 5, 75 Duro

- 4" (101.6 mm) internal diameter

1шт.

14

K929779

SPRING

- inner

9шт.

15

K13507

SPRING

- outer

18шт.

16

K965799

GEAR

PLANET GEARS - set of three

1шт.

17

K620275

BEARING, NEEDLE

NEEDLE ROLLER BEARING - 1-1/4 x 1-5/8 x 3/4" (31.75 x 41.275 x 19.05 mm)

3шт.

17

K620277

ROLLER CAGE BEARING

NEEDLE ROLLER BEARING - 1-1/4 x 1-5/8 x 1" (31.75 x 41.275 x 25.4 mm)

3шт.

18

K952662

WASHER, THRUST

SPACER

3шт.

19

K940290

PIN

BEARING PIN

3шт.

20

K948488

GEAR

SUN GEAR

1шт.

21

K917186

WASHER

THRUST WASHER - rear

1шт.

22

K917838

CARRIER

END COVER

1шт.

23

K621808

PIN

DOWEL - 5/8 x 1-1/4" (15.875 x 31.75 mm)

3шт.

24

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

25

K626388

WASHER

TABWASHER

3шт.

26

K19177

BALL BEARING,76.2mm ID x 114.3mm OD x 19.05mm W

1шт.

27

K917834

PLATE

ABUTMENT PLATE

1шт.

28

K917835

BEARING

1шт.

29

K943410

BRAKE BAND

1шт.

30

K940064

WASHER

CONICAL WASHER - 3/8"

1шт.

31

K607377

LOCK NUT

- 3/8 UNC, self-locking

1шт.

32

K623827

PLUG

- 1" BSP, special

1шт.

33

K946253

SCREW,1/2" - 13 x 1 3/4"

SETSCREW - 1/2 UNC x 1-3/4", special

1шт.

34

86632558

JAM NUT,Jam, 1/2"-13, G5

LOCKNUT -1/2 UNC

1шт.

35

K917590

WASHER

SPHERICAL WASHER

1шт.

36

232-1416

LOCK NUT,3/8"-16, GC

NUT - 3/8 UNC, self-locking

1шт.

37

K626314

WASHER

- 7/16" (11.112 mm)

1шт.

38

K621761

RING, SNAP

RING - snap, 7/8" (22.225 mm) internal

1шт.

39

K940346

STOP

1шт.

40

K625289

SPRING

1шт.

41

K952312

SLEEVE

1шт.

42

K965766

BRAKE

CYLINDER AND PISTON

1шт.

43

K606843

SCREW

BOLT - 5/16 UNC x 2"

4шт.

44

K19481

SPRING WASHER

WASHER - lock 5/16"

4шт.
