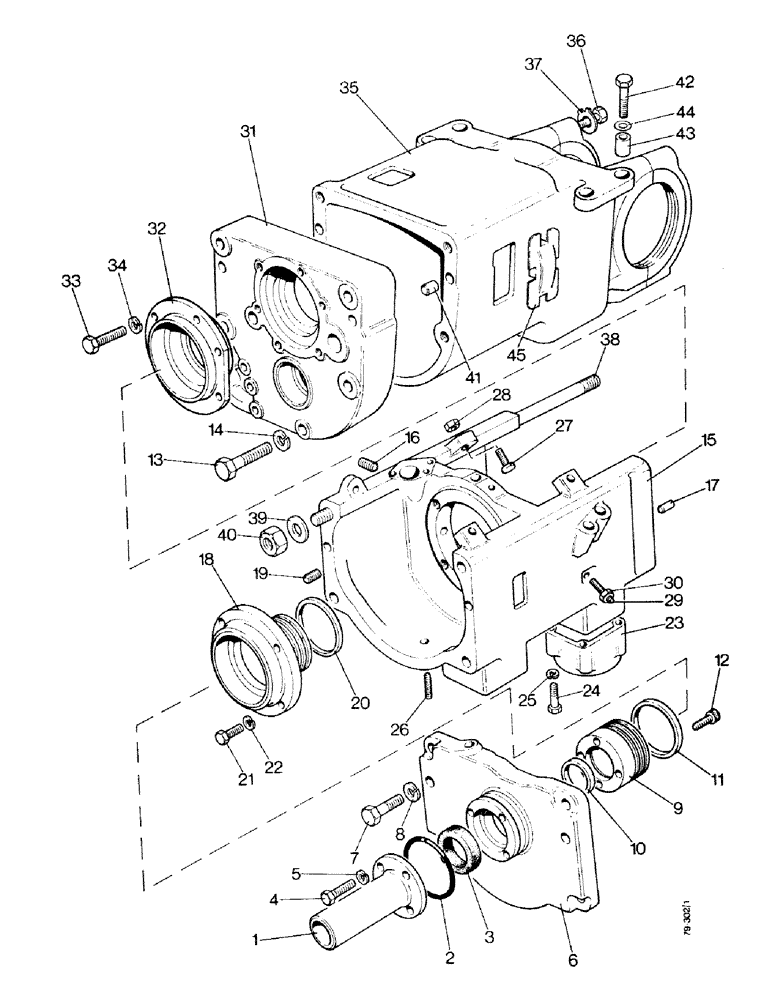

Запчасти Case IH 1490 (D04-1) - GEARBOX CASE, POWER SHIFT (03) - POWER TRAIN

1

K940294

SUPPORT

1шт.

2

K623545

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- 2-3/4" (69.85 mm) internal diameter

2шт.

Is 3", not 2-3/4" as stated. K623542 O-ring is 2-3/4"

1шт.

3

K623415

SEAL

OIL SEAL - 46 x 65 x 10 mm

1шт.

4

K602737

SCREW

SETSCREW - 1/4 UNC x 1"

4шт.

5

K626341

SPRING WASHER

WASHER - lock, 1/4"

4шт.

6

K954258

PLATE

END PLATE - front

1шт.

7

K943635

STEP BOLT

- 5/16 UNC x 2", special

2шт.

8

K19482

SPRING WASHER

WASHER - lock

2шт.

9

K929301

SUPPORT

SLEEVE

1шт.

10

K908508

BUSHING

1шт.

11

K917796

RING, PISTON

SEAL RING

2шт.

12

K606812

SCREW

- 1/4 UNC, self-locking

4шт.

13

K600417

BOLT

- 3/8 x 7/8" (9.525 x 22.225 mm)

2шт.

14

K19482

SPRING WASHER

WASHER - lock, 3/8"

1шт.

15

K952310

BUSHING

SPACER

1шт.

16

K606021

SCREW

- 5/16 UNC x 5/16"

1шт.

17

K621805

PIN

DOWEL - 3/8 x 7/8" (9.525 x 22.225 mm)

2шт.

18

K929300

HOUSING

1шт.

19

K606200

SCREW

- 1/4 UNC x 1/4"

1шт.

20

K917796

RING, PISTON

SEAL RING

2шт.

21

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

SETSCREW - 3/8 UNC x 1-1/8"

4шт.

22

K19482

SPRING WASHER

WASHER - lock, 3/8"

1шт.

23

K965766

BRAKE

CYLINDER AND PISTON - front and rear brake bands

2шт.

24

K606843

SCREW

BOLT - 5/16 UNC x 2", front and rear brake bands

8шт.

25

K19481

SPRING WASHER

WASHER - lock, 5/16", front and rear brake bands

8шт.

26

K929459

SCREW

LOCATING SCREW - 5/16 UNF x 1-3/8", front and rear brake bands

2шт.

27

K929460

SCREW,5/16" - 24 x 1 3/8"

LOCATING SCREW - 5/16 UNF x 1-3/8", front and rear brake bands

4шт.

28

K617051

NUT

LOCKNUT - 5/16 UNF, front and rear brake bands

4шт.

29

K929458

SCREW

LOCATING SCREW - 3/8 UNF x 1-3/4", front and rear brake bands

1шт.

30

K617052

NUT

LOCKNUT - 3/8 UNF, front and rear brake bands

1шт.

31

K940299

PLATE

END PLATE - center

1шт.

32

K928480

HOUSING

- center plate

1шт.

33

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

SETSCREW - 3/8 UNC x 1-1/8"

6шт.

K626239

SHIM,.010" Thk

(0.254 mm) .010" Thk

1шт.

34

K19482

SPRING WASHER

WASHER - lock, 3/8"

6шт.

35

K200444

PLATE

CASE - range gearbox, with bearing caps, Includes Ref. 36 and 37

1шт.

36

K601242

BOLT

- 5/8 UNC x 3-3/4"

4шт.

37

K626389

BEARING WASHER

TABWASHER

4шт.

38

K608410

STUD

- 1/2 UNC x 17-5/8"

4шт.

39

K626345

LOCK WASHER

FLAT WASHER - 1/2" (12.7 mm)

4шт.

40

280431

NUT,1/2"-13, G5

4шт.

41

K621805

PIN

DOWEL - 3/8 x 7/8" (9.525 x 22.225 mm)

2шт.

42

K601306

BOLT

- 5/8 UNC x 2-1/2"

2шт.

43

K920656

BUSHING

BUSHING

2шт.

44

K626239

SHIM,.010" Thk

(0.254 mm) .010" Thk

1шт.

45

K947189

COVER

PLATE

1шт.
