Запчасти Case IH 1490 (D03-1) - BEVEL PINION SHAFT, SYNCHROMESH, 2WD, MFD (03) - POWER TRAIN

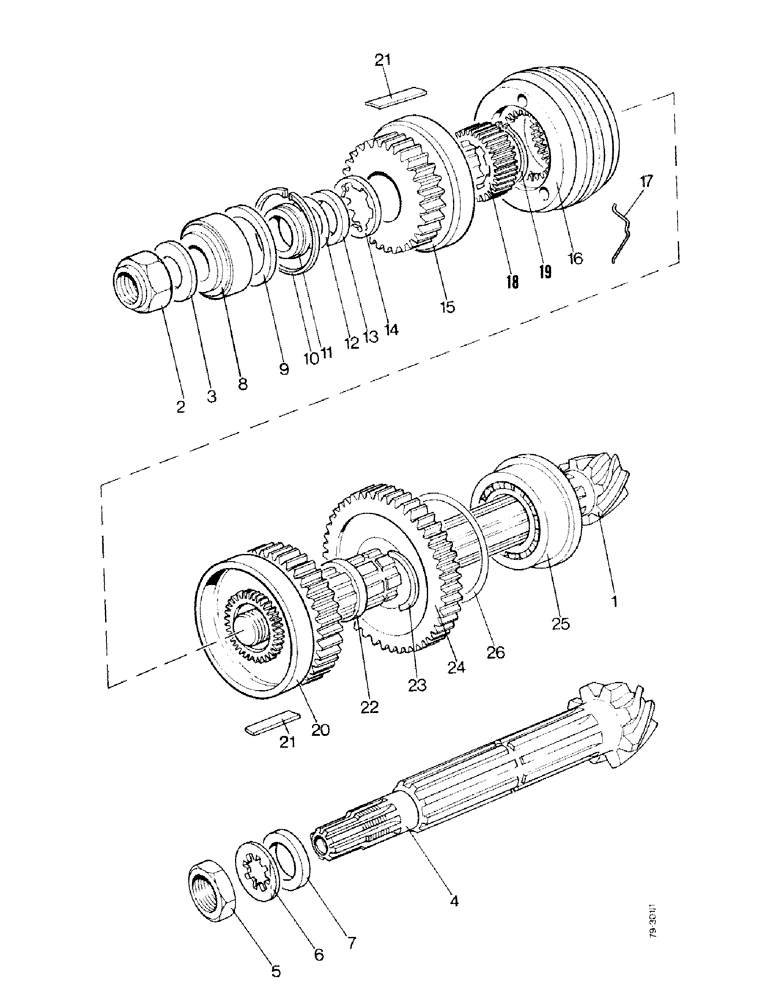

Схема запчастей Case IH 1490 - (D03-1) - BEVEL PINION SHAFT, SYNCHROMESH, 2WD, MFD (03) - POWER TRAIN
13
25
22
7
26
4
8
1
2
6
16
17
18
9
21
19
5
20
14
23
10
12
3
24
21
15
11

Артикул

Название

Примечание

Количество

1

K964873

GEAR-SET

BEVEL PINION AND SPIRAL GEAR - 7-43 teeth (See Figure D10) (2WD)

1шт.

2

K622803

NUT

- 1-1/8 BSF, left-hand (2WD)

1шт.

3

K14687

WASHER

- 1-1/8" (28.575 mm) special

1шт.

4

K965895

BEVEL GEAR

BEVEL PINION AND SPIRAL GEAR - 7-43 teeth (MFD)

1шт.

5

K921817

NUT

- 1-3/8 Whitworth, special (MFD)

1шт.

6

K626438

WASHER

TABWASHER - pinion (Replaces K921818) (MFD)

1шт.

7

K921819

WASHER

- 1-3/8" (34.925 mm) special (MFD)

1шт.

8

K620061

BEARING, ROLLER

BEARING - roller, taper (Order 1-A16794 and 1-A16795)

1шт.

9

K627253

BUSHING

SPACER - bearing

1шт.

10

K17023

CIRCLIP

RING - snap, 3" (76.2 mm) internal

1шт.

11

K917844

BUSHING

SPACER - bearing

1шт.

12

K917845

SHIM,35.32mm ID x 50.8mm OD x 0.05mm Thk

- 0.002" (0.0508 mm)

1шт.

12

K917846

SHIM

- 0.005" (0.127 mm)

1шт.

12

K917847

SHIM

- 0.010" (0.254 mm)

1шт.

12

K917848

SHIM

- 0.030" (0.762 mm)

1шт.

13

K940969

BUSHING

SPACER - bearing

1шт.

14

K940975

DISC

WASHER - special

1шт.

15

K942816

GEAR

- high, 28 teeth

1шт.

16

K928223

GEAR

SLIDING GEAR AND CONES, Includes Ref. 17

1шт.

17

K926266

SPRING

- gear

6шт.

18

K943435

GEAR

- dog clutch (Order K206501)

2шт.

18

K206501

GEAR

- dog clutch, Start Serial: 11185285

2шт.

19

K621865

RING, SNAP

RING - snap, 1-3/4" (44.45 mm) external

1шт.

20

K942817

GEAR

- medium, 35 teeth

1шт.

21

K940989

PLATE

PAD - bearing

12шт.

22

K948670

WASHER

- special

2шт.

23

K945962

PACKING RING

SPLIT RING - halves, 1.810" I.D.

2шт.

24

K942461

GEAR

- low, 41 teeth

1шт.

25

K620158

TAPERED BEARING

BEARING - roller, taper

1шт.

26

K626983

SHIM,.002" Thk

(0.0508 mm) .002" Thk

1шт.

26

K626984

SHIM,.005" Thk

(0.127 mm) .005" Thk

1шт.

26

K626985

SHIM

- 0.010" (0.254 mm)

1шт.

26

K626986

SHIM,.030" Thk

(0.762 mm) .030" Thk

1шт.

Выбрано товаров: 33
