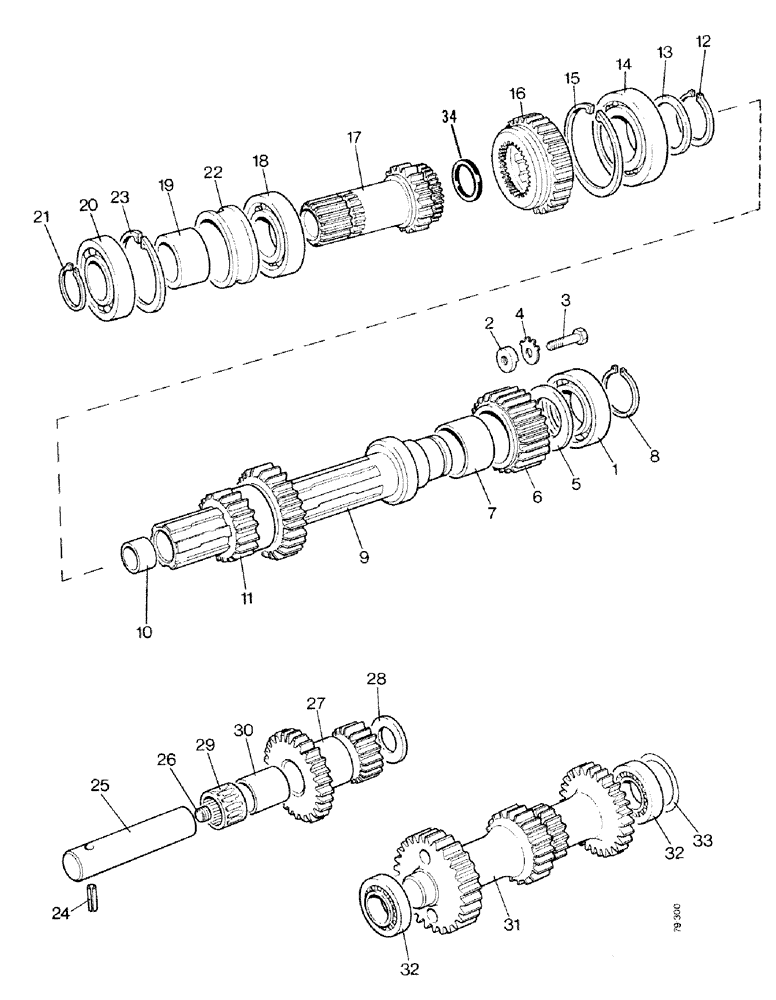

Запчасти Case IH 1490 (D02-1) - GEARBOX DRIVESHAFT AND LAYSHAFTS, SYNCHROMESH (03) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
K19047
BALL BEARING
1шт.
2
K910447
WASHER
RETAINING WASHER
1шт.
3
K600144
BOLT
- 1/4 UNC x 1-3/8"
1шт.
4
K33127
WASHER
TABWASHER
1шт.
5
K908940
WASHER
THRUST WASHER
1шт.
6
K963566
GEAR
REVERSE GEAR, Includes: Ref. 7
1шт.
7
K621376
BUSHING
1шт.
8
K12922
RING, SNAP
RING - snap, 1-3/4" (44.45 mm) external
1шт.
9
K940993
COLLAR
DRIVESHAFT
1шт.
10
K24774
BUSHING
1шт.
11
K942452
GEAR
RANGE PINION - 18-26 teeth
1шт.
12
K621865
RING, SNAP
RING - snap, 50 mm, external
1шт.
13
K942829
BUSHING
SPACER
1шт.
14
K12311
BEARING, ROLLER, CYL
ROLLER BEARING
1шт.
15
K12236
RING, SNAP
RING - snap 4" (101.6 mm) internal
1шт.
16
K942464
GEAR
DRIVEN GEAR - 28 teeth
1шт.
17
K942462
GEAR
DRIVING GEAR - 18 teeth, no seal used
1шт.
18
K12275
BEARING, ROLLER, CYL
ROLLER BEARING
1шт.
19
K627238
BUSHING
SPACER
1шт.
20
K19047
BALL BEARING
1шт.
21
K12922
RING, SNAP
RING - snap, 85 mm, internal
2шт.
22
K627302
BUSHING
SPACER
1шт.
23
K11481
RING, SNAP
RING - snap, 85 mm, internal
2шт.
24
K623895
PIN
- 5/16 x 2" (7.938 x 50.8 mm)
1шт.
25
K917918
SHAFT
SPINDLE
1шт.
26
K606261
SCREW
PLUG - 7/16 UNC
1шт.
27
K942463
SHAFT
LAYSHAFT - auxiliary reduction
1шт.
28
K626714
WASHER
THRUST WASHER
2шт.
29
K620273
BEARING, NEEDLE,28.57mm ID x 38.1mm OD x 25.02mm W
NEEDLE ROLLER BEARING
2шт.
30
K924495
BUSHING
SPACER
1шт.
31
K942460
SHAFT
LAYSHAFT - with integral gears
1шт.
32
K620076
BEARING, ROLLER
TAPER ROLLER BEARING
2шт.
Use 651817R1 bearing cup and 651818R91 taper bearing.
1шт.
33
K914702
SHIM,50.8mm ID x 67.06mm OD x 0.05mm Thk
(0.0508 mm) .002" Thk
1шт.
33
K914703
SHIM,.003" Thk
(0.0762 mm) .003" Thk
1шт.
33
K914704
SHIM,50.8mm ID x 67.06mm OD x 0.18mm Thk
(0.1778 mm) .007" Thk
1шт.
33
K914705
SHIM,50.8mm ID x 67.06mm OD x 0.25mm Thk
(0.254 mm) .010" Thk
1шт.
34
K623634
SEAL
ING RING - 1-1/8" (28.575 mm) internal diameter
1шт.
Выбрано товаров: 38
