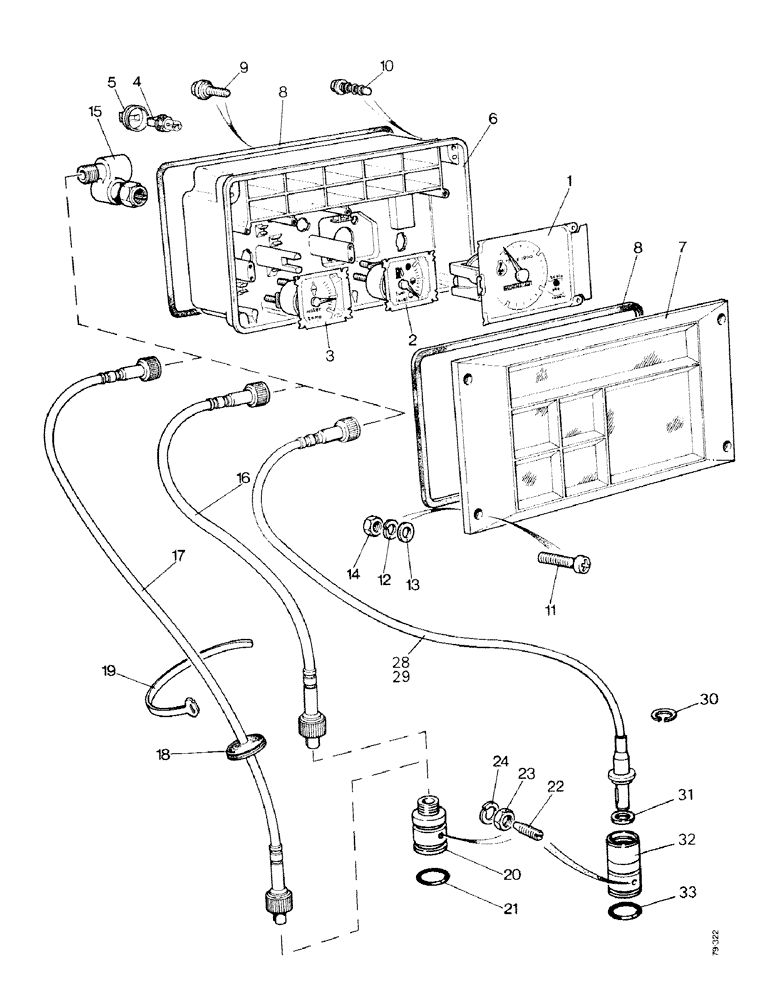

Запчасти Case IH 1490 (B10-1) - INSTRUMENT PANEL AND ENGINE SPEED INDICATOR, LOW PROFILE, HIGH PLATFORM, CAB (02) - COOLING & FUEL SYSTEMS

K300268

CLUSTER

PANEL ASSEMBLY - instrument, Includes: Ref. 1 - 10

1шт.

1

K965947

TACHOMETER

INDICATOR - engine speed

1шт.

2

K965950

FUEL GAUGE

GAUGE - fuel

1шт.

3

K965949

ELECTRICAL GAUGE

GAUGE - temperature

1шт.

4

K965961

LAMP

AND SOCKET - panel

9шт.

5

K965958

BOOT

PLASTIC COVER - illumination lamps

3шт.

6

K965951

PRINTED CIRCUIT BOAR

CASE AND PRINTED CIRCUIT - panel

1шт.

7

K965945

BEZEL

COVER - panel

1шт.

8

K965954

GASKET,4.45mm Thk x 249.68mm ID

- panel

2шт.

9

K965957

BOLT

SCREW AND BUSHING - panel

2шт.

10

K965959

SCREW

- panel

12шт.

11

K652502

SCREW,Pan, M5 x 0.8 x 16mm

- M5 x 10 (Low Profile)

4шт.

11

K652506

SCREW

- M5 x 25 (High Platform, Cab)

4шт.

12

K651846

WASHER, LOCK

WASHER - lock, 5 mm

4шт.

13

K651776

WASHER

- 5 mm (High Platform, Cab)

4шт.

14

K651525

NUT

- M5 (High Platform, Cab)

4шт.

15

K201998

ADAPTER

ADAPTOR - speed indicator drive

1шт.

16

K957154

CABLE

ASSEMBLY - inner and outer (Low Profile), Serial Range: -11186068

1шт.

17

K954957

CABLE

ASSEMBLY - inner and outer (High Platform, Cab), Serial Range: -11186068

1шт.

18

K627769

GROMMET

- 32 mm (Low Profile)

1шт.

19

K10518

BUCKLE

STRAP - tie

1шт.

20

K928253

CONNECTOR, ELEC

HOUSING - tachometer cable, Serial Range: -11186068

1шт.

21

K16351

O-RING,3.53mm Thk x 24.99mm ID

- 1" (25.4 mm) internal diameter

2шт.

22

K928254

SCREW,7/16" - 14 x 1 5/16"

LOCATING SCREW - 7/16 UNC

1шт.

23

425-147

JAM NUT,Jam, 7/16"-14, G5

LOCKNUT - 7/16 UNC

1шт.

24

K626344

WASHER, LOCK

WASHER - lock, 7/16"

1шт.

REF

INSTRUCTION

SENDER - temperature gauge, see Figure A05-1

1шт.

28

K957379

CABLE

ASSEMBLY - tachometer (High Platform, Cab), Start Serial: 11186068

1шт.

29

K957380

CABLE

ASSEMBLY - tachometer (Low Profile), Start Serial: 11186068

1шт.

30

A37550

SNAP RING,1.00", Int, #100

RING - snap, 1-1/8" OD

1шт.

31

K206134

WASHER

- rubber, 1-1/64" OD x 9/16" ID x 5/32"

1шт.

32

K206037

CONNECTOR, ELEC

HOUSING - tachometer cable, Start Serial: 11186068

1шт.

33

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

- cable housing

1шт.
