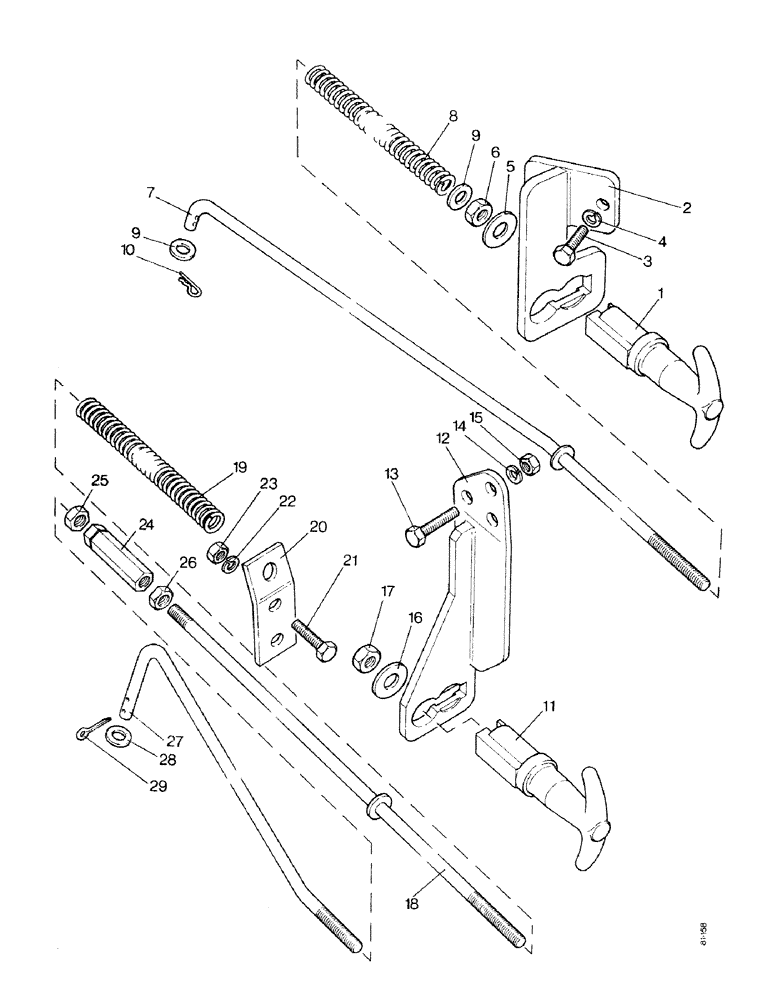

Запчасти Case IH 1490 (B09-1) - ENGINE STOP CONTROL, LOW PROFILE, HIGH PLATFORM, CAB (02) - COOLING & FUEL SYSTEMS

1

K202405

KNOB

- stop control (Low Profile)

1шт.

2

K202626

BRACKET

- stop control (Low Profile)

1шт.

3

K650316

SCREW

SETSCREW - M6 x 20 (Low Profile)

2шт.

4

K651847

WASHER, LOCK

WASHER - lock 6 mm (Low Profile)

2шт.

5

K626661

WASHER

- 1/4" (6.35 mm) special (Low Profile)

1шт.

6

425-154

JAM NUT,Jam, 1/4"-28, G5

LOCKNUT - 1/4 UNF (Low Profile)

1шт.

7

K204440

STOP

ROD (Low Profile)

1шт.

8

K625260

SPRING

RETURN SPRING (Low Profile)

1шт.

9

K19470

WASHER

- 1/4" (6.35 mm) (Low Profile)

2шт.

10

K950865

CLIP

PIN - cotter (Low Profile)

2шт.

11

K202405

KNOB

- stop control (High Platform, Cab)

1шт.

12

K202538

BRACKET

- stop control (High Platform, Cab)

1шт.

13

K612703

SCREW

SETSCREW - 1/4 UNF x 3/4" (High Platform, Cab)

3шт.

14

K626341

SPRING WASHER

WASHER - lock 1/4" (High Platform, Cab)

3шт.

15

K616980

NUT

- 1/4 UNF (High Platform, Cab)

3шт.

16

K626661

WASHER

- 1/4" (6.35 mm) special (High Platform, Cab)

1шт.

17

425-154

JAM NUT,Jam, 1/4"-28, G5

LOCKNUT - 1/4 UNF (High Platform, Cab)

1шт.

18

K204022

STOP

ROD (High Platform, Cab)

1шт.

19

K625260

SPRING

RETURN SPRING (High Platform, Cab)

1шт.

20

K202406

GUIDE

(High Platform, Cab)

1шт.

21

K612703

SCREW

SETSCREW - 1/4 UNF x 3/4" (High Platform, Cab)

2шт.

22

K626341

SPRING WASHER

WASHER - lock, 1/4" (High Platform, Cab)

2шт.

23

K616980

NUT

- 1/4 UNF (High Platform, Cab)

2шт.

24

K949065

SLEEVE

ADJUSTING SLEEVE - 1/4 UNF (High Platform, Cab)

1шт.

25

K616980

NUT

- 1/4 UNF (High Platform, Cab)

1шт.

26

K617593

NUT

- 1/4 UNF, left-hand (High Platform, Cab)

1шт.

27

K204023

STOP

ROD (High Platform, Cab)

1шт.

28

K19470

WASHER

- 1/4" (6.35 mm) (High Platform, Cab)

1шт.

29

K11934

PIN

- cotter, 1/16 x 1/2" (1.588 x 12.7 mm) (High Platform, Cab)

1шт.
