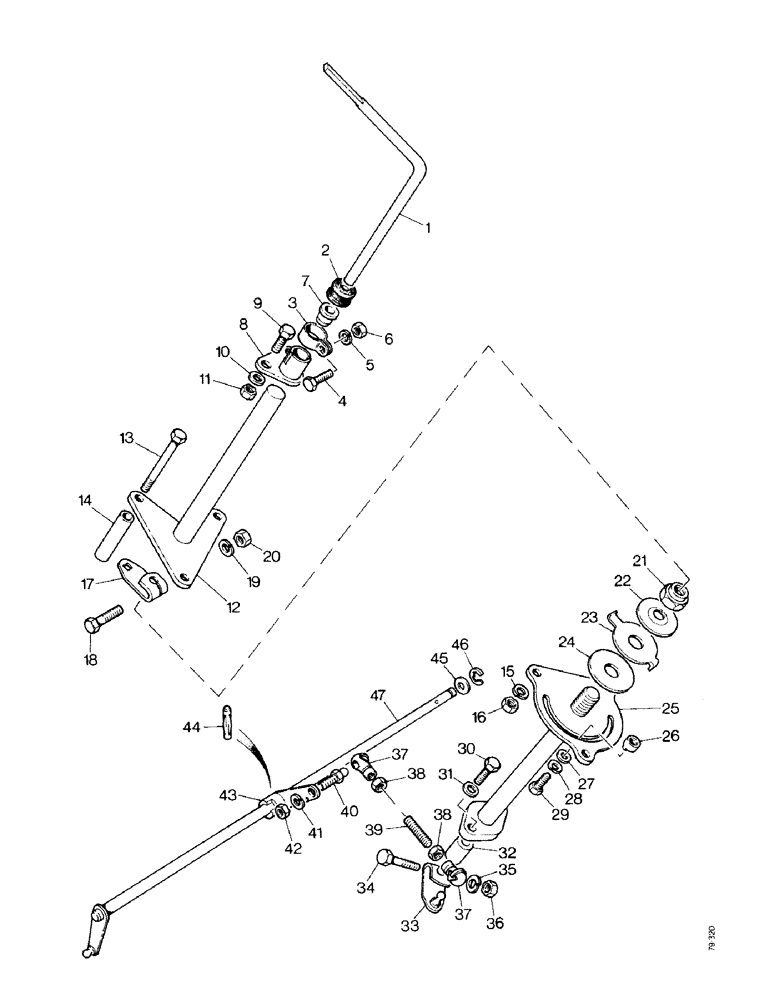

Запчасти Case IH 1490 (B07-1) - ENGINE SPEED HAND CONTROL, HIGH PLATFORM, CAB MODEL, PRIOR TO P.I.N. 11182354 (02) - COOLING & FUEL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
K202473
LEVER
HAND LEVER
1шт.
2
K627767
GROMMET
1шт.
3
K621743
CLAMP
1шт.
4
K612705
SCREW
SETSCREW - 1/4 UNF x 1"
1шт.
5
K626341
SPRING WASHER
WASHER - lock, 1/4"
1шт.
6
K616980
NUT
- 1/4 UNF
1шт.
7
K202235
BUSHING
1шт.
8
K202482
SLEEVE
CLAMPING SLEEVE
1шт.
9
K612804
SCREW
SETSCREW - 5/16 UNF x 7/8", clamping, Serial Range: sleeve-frame
2шт.
10
K19481
SPRING WASHER
WASHER - 5/16" (7.938 mm) clamping, Serial Range: sleeve-frame
2шт.
11
K617001
NUT
- 5/16 UNF, clamping, Serial Range: sleeve-frame
2шт.
12
K202223
SUPPORT
BRACKET
1шт.
13
K610019
BOLT
- 1/4 UNF x 3-1/4", support bracket to quadrant support
3шт.
14
K627326
BUSHING
SPACER - support bracket to quadrant support
3шт.
15
K626341
SPRING WASHER
WASHER - lock 1/4", support bracket to quadrant support
3шт.
16
K616980
NUT
- 1/4 UNF, support bracket to quadrant support
3шт.
17
K202231
LEVER
1шт.
18
K600144
BOLT
- 1/4 UNC x 1-3/8"
1шт.
19
K626341
SPRING WASHER
WASHER - lock 1/4"
1шт.
20
K607043
NUT
- 1/4 UNC
1шт.
21
131-377
LOCK NUT,5/8"-11, GC
NUT - 5/8 UNF, self-locking
1шт.
22
K626740
WASHER
BELLEVILLE WASHER
1шт.
23
K202227
DRIVE
PLATE
1шт.
24
K202226
DISC
FRICTION DISC
1шт.
25
K202218
QUADRANT
SUPPORT
1шт.
26
K943634
NUT
- special, 1/4 UNC
2шт.
27
K19470
WASHER
- 1/4" (6.35 mm)
2шт.
28
K626341
SPRING WASHER
WASHER - lock 1/4"
2шт.
29
88542
BOLT,Hex, 1/4"-20 x 1/2", Gr 5
SETSCREW - 1/4 UNC x 1/2"
2шт.
30
K650643
BOLT
SETSCREW - M8 x 25
2шт.
31
K651848
WASHER
- 8 mm
2шт.
32
K627036
BUSHING
SPACER
1шт.
33
K202822
LEVER
1шт.
34
K600144
BOLT
- 1/4 UNC x 1-3/8"
1шт.
35
K626341
SPRING WASHER
WASHER - lock 1/4"
1шт.
36
K607043
NUT
- 1/4 UNC
1шт.
37
K621903
BALL JOINT
SOCKET END
2шт.
38
425-154
JAM NUT,Jam, 1/4"-28, G5
LOCKNUT - 1/4 UNF
2шт.
39
K202484
ROD
- hand lever to cross shaft
1шт.
40
K621904
BALL JOINT
BALL END
1шт.
41
K626341
SPRING WASHER
WASHER - lock 1/4"
1шт.
42
K616980
NUT
- 1/4 UNF
1шт.
43
K928178
LEVER
- cross shaft
1шт.
44
K623747
SPLIT PIN/SAFETY PIN
PIN - lever
1шт.
45
K19472
WASHER
- 3/8" (9.525 mm)
1шт.
46
K621587
RING, SNAP
RING - snap, 3/8" (9.525 mm) external
1шт.
47
K202478
SHAFT
CROSS SHAFT
1шт.
Выбрано товаров: 47
