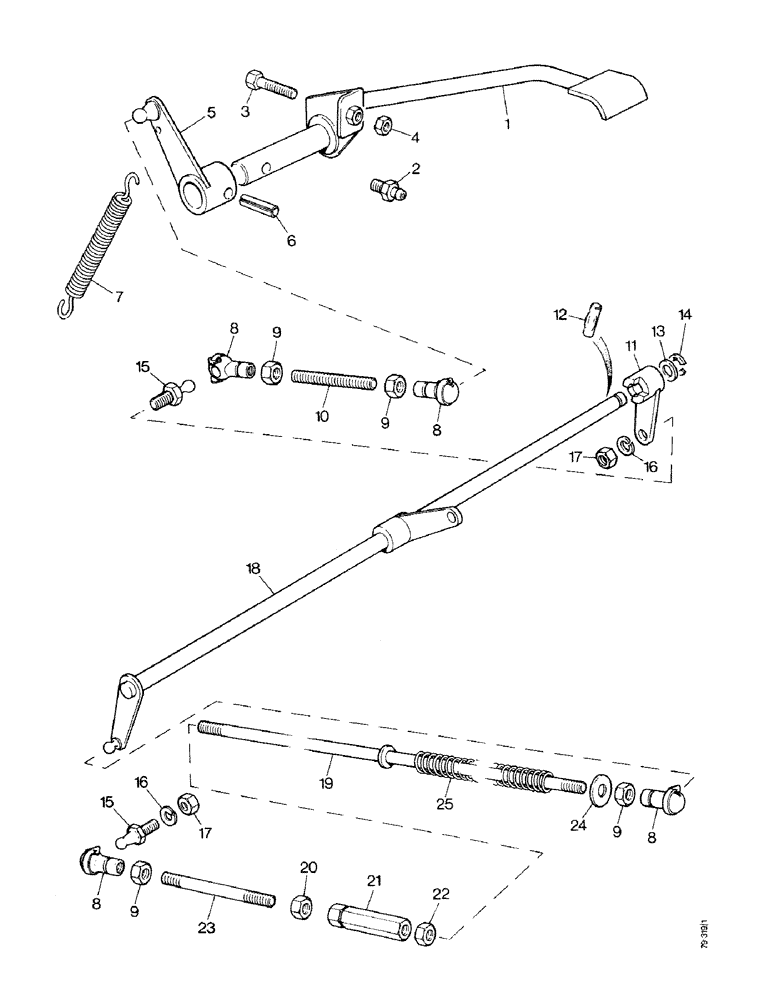

Запчасти Case IH 1490 (B06-1) - ENGINE SPEED FOOT CONTROL, HIGH PLATFORM, CAB MODEL (02) - COOLING & FUEL SYSTEMS

1

K202239

PEDAL

1шт.

2

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

1шт.

3

K610252

BOLT

- special, 1/4 UNF

1шт.

4

425-154

JAM NUT,Jam, 1/4"-28, G5

LOCKNUT - 1/4 UNF

1шт.

5

K202236

LEVER

1шт.

6

K623742

SPRING

PIN - 1/4 x 1" (6.35 x 25.4 mm)

1шт.

7

K624914

SPRING

RETURN SPRING

1шт.

8

K621903

BALL JOINT

SOCKET END

4шт.

9

425-154

JAM NUT,Jam, 1/4"-28, G5

LOCKNUT - 1/4 UNF

4шт.

10

K202824

ROD

- pedal to cross shaft

1шт.

11

K928178

LEVER

1шт.

12

K623747

SPLIT PIN/SAFETY PIN

PIN -, Serial Range: lever-shaft

1шт.

13

K19472

WASHER

- 3/8" (9.525 mm)

1шт.

14

K621587

RING, SNAP

RING - snap 3/8" (9.525 mm) external

1шт.

15

K621904

BALL JOINT

BALL END

2шт.

16

K626341

SPRING WASHER

WASHER - lock, 1/4"

2шт.

17

K616980

NUT

- 1/4 UNF

2шт.

18

K202478

SHAFT

CROSS SHAFT

1шт.

19

K202475

ROD

- cross shaft to adjusting sleeve

1шт.

20

K617593

NUT

- 1/4" UNF, left-hand thread

1шт.

21

K949065

SLEEVE

ADJUSTING SLEEVE - 1/4 UNF

1шт.

22

K616980

NUT

- 1/4 UNF

1шт.

23

K204861

ROD

- adjusting, Serial Range: sleeve-pump

1шт.

24

K626661

WASHER

- special, return spring

1шт.

25

K625260

SPRING

RETURN SPRING

1шт.
