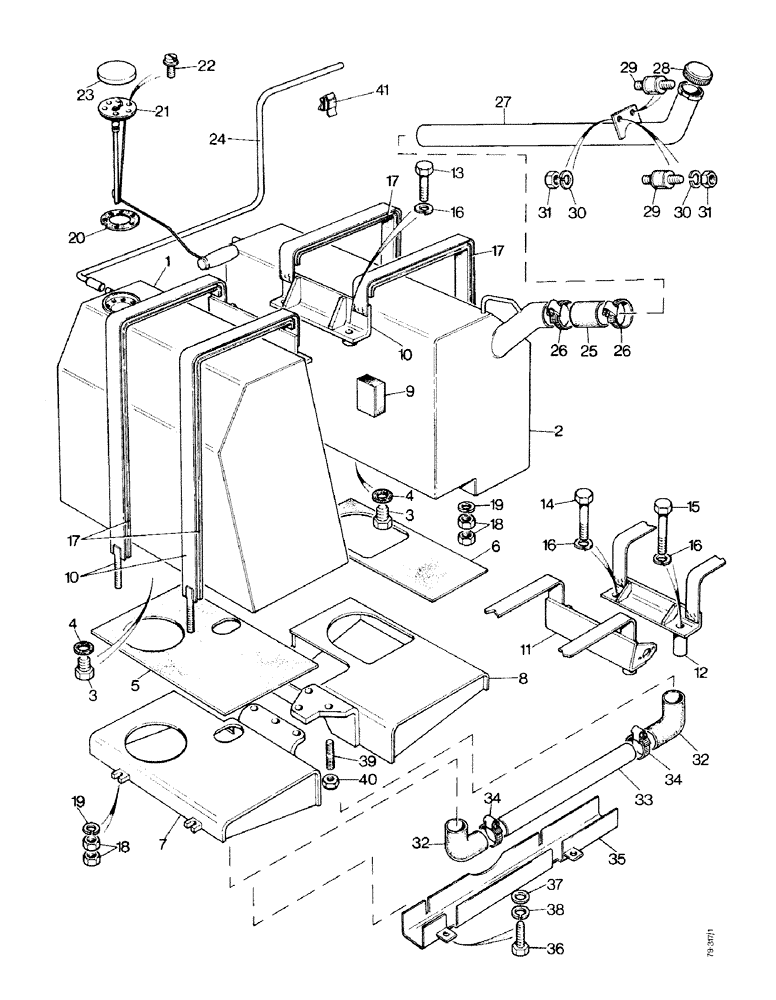

Запчасти Case IH 1490 (B04-1) - FUEL TANKS, HIGH PLATFORM, CAB MODEL, SYNCHROMESH, POWER SHIFT (02) - COOLING & FUEL SYSTEMS

1

K202008

TANK

FUEL TANK - left-hand

1шт.

2

K201854

TANK

FUEL TANK - right-hand

1шт.

3

K19591

PLUG

- 1/8 BSP

2шт.

4

K626521

SEALING WASHER

FIBER WASHER

2шт.

5

K202093

MAT

SEATING MAT - left-hand tank

1шт.

6

K202094

MAT

SEATING MAT - right-hand tank

1шт.

7

K201980

BRACKET

SUPPORT BRACKET - left-hand tank

1шт.

8

K201982

BRACKET

SUPPORT BRACKET - right-hand tank

1шт.

9

K201952

SUPPORT

RUBBER BLOCK - 1" (25.4 mm)

1шт.

9

K202899

TANK

RUBBER BLOCK - 9/16" (14.288 mm)

3шт.

10

K201939

STRAP

(Synchromesh)

2шт.

11

K202870

STRAP

- left-hand tank (Power-Shift)

1шт.

12

K202832

STRAP

- right-hand tank (Power-Shift)

1шт.

13

K600821

BOLT

- 1/2 UNC x 4-3/4" (Synchromesh)

4шт.

14

K600831

BOLT

S - 1/2 UNC x 7-1/2" (Power-Shift)

2шт.

15

K600826

BOLT

- 1/2 UNC x 6" (Power-Shift)

2шт.

16

K626345

LOCK WASHER

WASHER - lock, 1/2"

4шт.

17

F42419

FOAM

SEATING STRIP - 40 x 5 mm (Replaces K953479)

1шт.

18

K607081

LOCK NUT

LOCKNUT - 5/16 UNC

8шт.

19

K19481

SPRING WASHER

WASHER - lock, 5/16

4шт.

20

K946159

GASKET

1шт.

21

K300827

TANK

UNIT - fuel gauge

1шт.

22

K614965

SCREW

- no. 10 UNF x 5/8"

5шт.

23

K946257

PLUG

PLASTIC PLUG

1шт.

24

K204021

PIPE

- tank breather

2шт.

25

K203060

HOSE

- 2 x 4-3/4" (50.8 x 120.65 mm)

1шт.

26

K622031

CLAMP

HOSE CLAMP - 2-1/4" (57.15 mm) diameter

2шт.

27

K203059

TUBE,25.75" L

FILLER TUBE

1шт.

28

K901983

CAP

FILLER CAP

1шт.

28a

K304590

CAP

filler, with lugs

1шт.

29

K203412

RUBBER BLOCK

RUBBER MOUNTING

2шт.

30

K651848

WASHER

- lock, 8 mm

4шт.

31

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

4шт.

32

K201945

HOSE

ELBOW

2шт.

33

K201944

PIPE

1шт.

34

K622028

CLAMP

HOSE CLAMP - 1-1/2" (38.1 mm)

4шт.

35

K203552

GUARD

1шт.

36

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

SETSCREW - 5/16 UNC x 3/4"

4шт.

37

K626682

WASHER

- 5/16" (7.938 mm)

4шт.

38

K19481

SPRING WASHER

WASHER - lock, 5/16"

4шт.

39

K608610

STUD

- 5/8 UNC x 2-1/2"

6шт.

40

K607306

NUT

- 5/8 UNC, self-locking

6шт.

41

K621744

CLIP

RETAINING CLIP - breather pipe

4шт.
