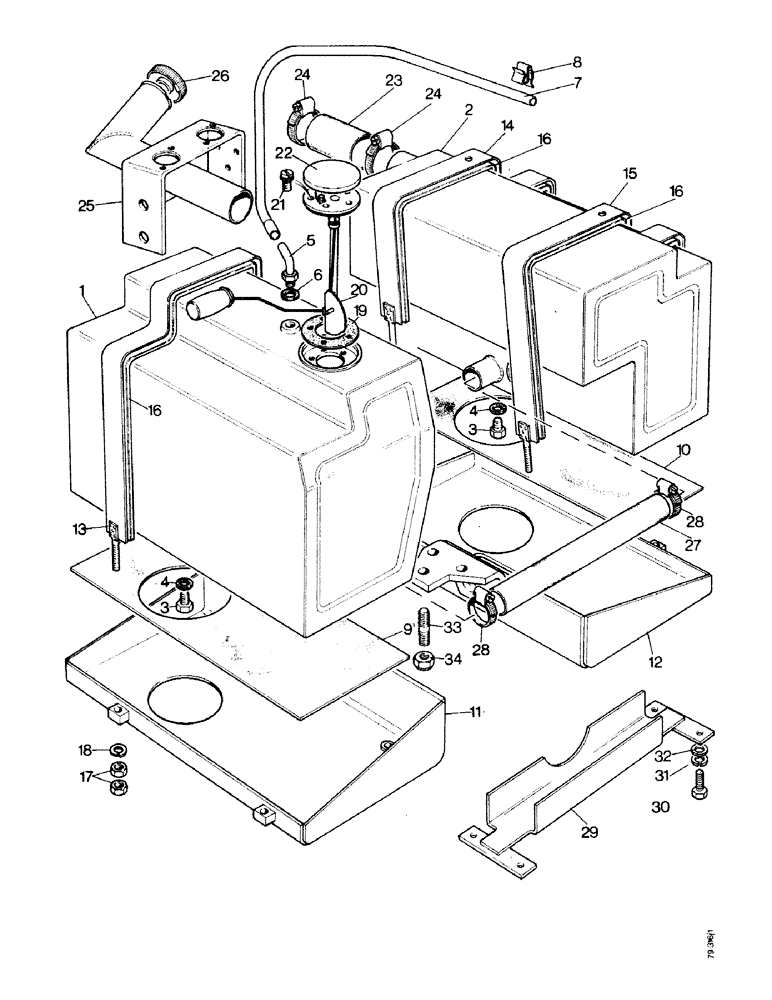

Запчасти Case IH 1490 (B03-1) - FUEL TANKS, LOW PROFILE MODEL (02) - COOLING & FUEL SYSTEMS

1

K202494

TANK

FUEL TANK - left-hand

1шт.

2

K202495

TANK

FUEL TANK - right-hand

1шт.

3

K19591

PLUG

- 1/8 BSP

2шт.

4

K626521

SEALING WASHER

FIBER WASHER

2шт.

5

K204027

BREATHER

PLUG - left-hand tank

1шт.

6

K19501

WASHER

FIBER WASHER - left-hand tank

1шт.

7

K204030

PIPE

- tank breather

1шт.

8

K621744

CLIP

RETAINING CLIP - breather pipe

2шт.

9

K202713

MAT

SEATING MAT - left-hand tank

1шт.

10

K202714

MAT

SEATING MAT - right-hand tank

1шт.

11

K202659

BRACKET

SUPPORT BRACKET - left-hand tank

1шт.

12

K202665

BRACKET

SUPPORT BRACKET - right-hand tank

1шт.

13

K203457

STRAP

- left-hand tank

2шт.

14

K202330

STRAP

- right-hand tank, front

1шт.

15

K202309

STRAP

- right-hand tank, rear

1шт.

16

K628233

ADHESIVE

PACKING STRIP, use 22-1/2" of F42419

4шт.

17

K607081

LOCK NUT

NUT - 5/16 UNC

16шт.

18

K19481

SPRING WASHER

WASHER - lock, 5/16"

8шт.

19

K946159

GASKET

1шт.

20

K301062

TANK

UNIT - fuel gauge

1шт.

21

K614965

SCREW

- no. 10 UNF x 5/8"

5шт.

22

K946257

PLUG

PLASTIC PLUG

1шт.

23

K202572

HOSE

- 2-1/4 x 5-1/2" (57.15 x 139.7 mm)

1шт.

24

K622032

CLAMP

HOSE CLAMP - 2-3/8" (60.325 mm)

2шт.

25

K301075

BRACKET

SUPPORT BRACKET - right-hand footplate

1шт.

26

K901983

CAP

FILLER CAP

1шт.

26a

K304590

CAP

filler, with lugs

1шт.

27

K203515

FUEL HOSE

HOSE - 1-3/8 x 20-1/4" (34.925 x 514.35 mm)

1шт.

28

K622029

CLAMP

HOSE CLAMP - 1-1/2" (38.1 mm)

2шт.

29

K203525

GUARD

- connecting hose

1шт.

30

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8

4шт.

31

K651848

WASHER

- lock, 8 mm

4шт.

32

K651778

WASHER

- 8 mm

4шт.

33

K608610

STUD

- 5/8 UNC x 2-1/2"

6шт.

34

K607306

NUT

- 5/8 UNC

6шт.
