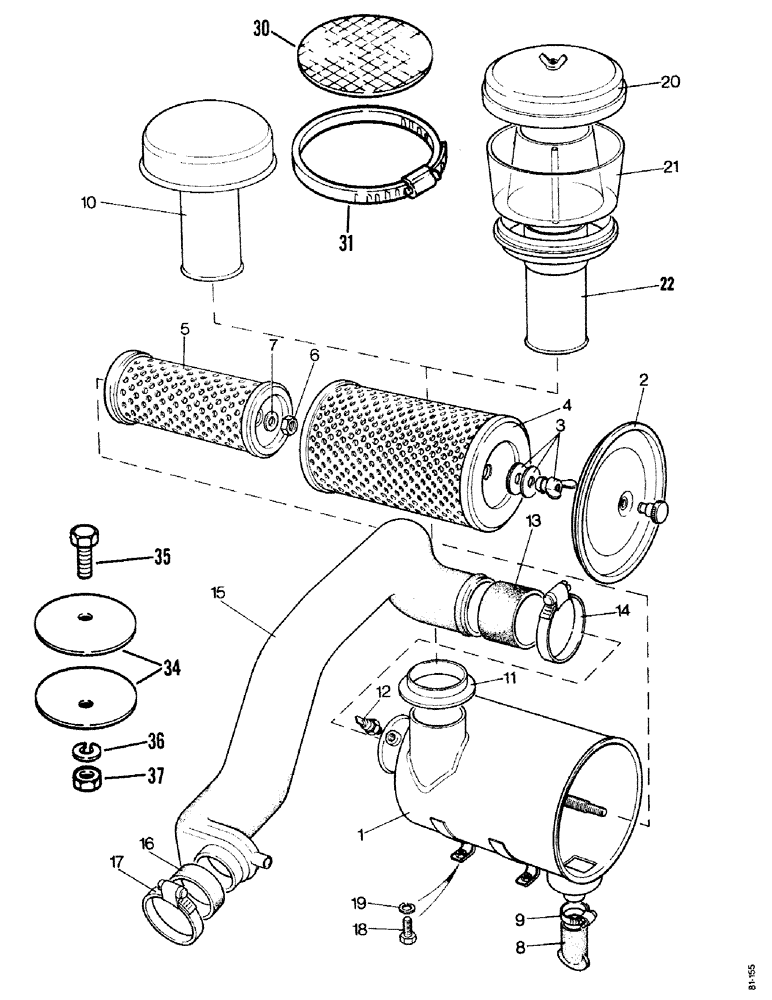

Запчасти Case IH 1490 (B02-1) - AIR CLEANER (02) - COOLING & FUEL SYSTEMS

1

K200688

CLEANER

AIR CLEANER - engine, Includes: Ref. 2 - 9

1шт.

2

K964888

PLATE

- end

1шт.

3

K964887

NUT

WING NUT AND WASHERS - element

1шт.

4

K945043

AIR FILTER

ELEMENT - main

1шт.

5

K952344

AIR FILTER

ELEMENT - safety

1шт.

6

K964096

NUT

- M10

1шт.

7

K964631

WASHER

NYLON WASHER - inner element

1шт.

8

K945042

VALVE

- dust

1шт.

9

K622099

CLIP

HOSE CLAMP - 1-1/8" (28.575 mm)

1шт.

10

K945046

PRECLEANER

STACK CAP - air

1шт.

11

K947899

SEAL

- engine cover

1шт.

12

K201313

SWITCH

VACUUM SWITCH - (Bosch 0344 800004)

1шт.

13

K626815

HOSE

- 2-3/8 x 1-1/2" (60.325 x 38.1 mm)

1шт.

14

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

- 2-1/4" (57.15 mm)

2шт.

15

K201689

TUBE

PIPE - cleaner to turbocharger, Serial Range: -11183587

1шт.

15

K205570

LARGE HOSE

PIPE - cleaner to turbocharger, Start Serial: 11183587

1шт.

16

K64540

HOSE

- 3 x 2" (76.2 x 50.8 mm)

1шт.

17

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

- 2-1/4" (57.15 mm)

2шт.

18

K650643

BOLT

SETSCREW - M8 x 25 mm

4шт.

19

K651848

WASHER

- lock, 8 mm

4шт.

K302218

CLEANER

PRE-CLEANER - air cleaner, Includes: Ref. 20 - 22

1шт.

20

K260902

COVER

ASSEMBLY - Coopers

1шт.

20

K260910

COVER

ASSEMBLY - Burgess

1шт.

21

K260382

BOWL

DUST BOWL - Coopers

1шт.

21

K260909

BOWL

DUST BOWL - Burgess

1шт.

22

NSS

NOT SOLD SEPARAT

SLEEVE - Order K302218

1шт.

30

A166360

SCREEN

- air intake, low profile special

1шт.

31

214-263

HOSE CLAMP,#48, 2.56" - 3.5", Type F Worm

CLAMP - screw, 3-1/2 to 2-9/16" ID, low profile special

1шт.

34

A164018

COVER ASSY

COVER - hood opening, low profile special

2шт.

35

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Low profile special Hex, 3/8"-16 x 1 3/4", G5

1шт.

36

194-6

WASHER - lock, 3/8", low profile special

1шт.

37

129-113

NUT - 3/8" NC hex, low profile special

1шт.
