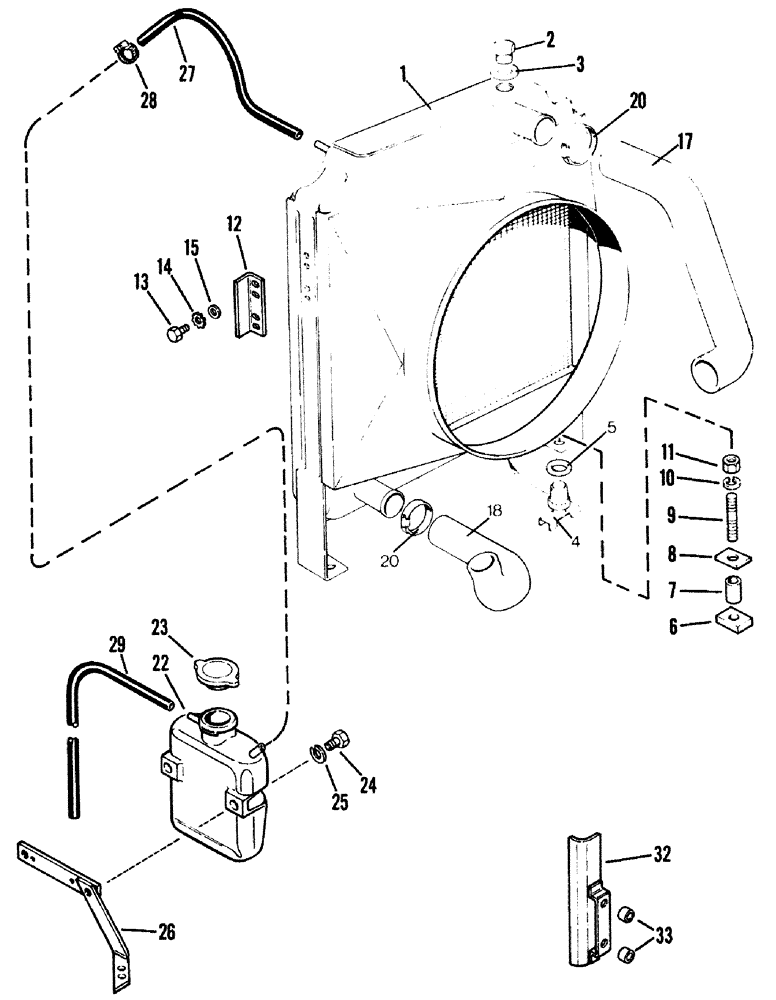

Запчасти Case IH 1490 (B01-3) - RADIATOR, P.I.N. 11184061 AND AFTER (02) - COOLING & FUEL SYSTEMS

1

K304373

RADIATOR

- standard, Includes: Ref. 2 and 3

1шт.

1

K304374

RADIATOR

- low profile, Includes: Ref. 2 and 3

1шт.

1

K304375

RADIATOR

- tractor with air conditioning and high platform, Includes: Ref. 2 and 3

1шт.

2

K965725

PLUG

- radiator filler

1шт.

3

K965726

WASHER

- plug

1шт.

4

K622060

PLUG, DRAIN

DRAIN TAP - 1/4 BSP

1шт.

5

K19501

WASHER

FIBER WASHER - 5/8" (15.875 mm)

1шт.

6

K921836

WEDGE

PACKING - mounting

4шт.

7

K203115

TUBE

SPACER - stud

2шт.

8

K921837

SHIM

PLATE - clamping

2шт.

9

K602809

SCREW

STUD - 3/8 UNC x 2"

2шт.

10

K19482

SPRING WASHER

WASHER - lock, 3/8"

2шт.

11

280136

NUT,3/8"-16, G8

2шт.

12

K302962

BRACKET

- radiator upper

2шт.

13

K651225

BOLT

- M6 x 10

4шт.

14

K626552

WASHER

- lock, M6 external Shakeproof

4шт.

15

K651777

WASHER

- flat, M6

4шт.

17

K201747

RADIATOR HOSE

Inlet

1шт.

18

K203350

RADIATOR HOSE,1.50" ID x 6.88", SAE J20 R4 Class D1

Outlet 1.50" ID x 6.88", SAE J20 R4 Class D1

1шт.

20

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

- 1-3/4" (44.45 mm)

4шт.

22

K300647

TANK

- overflow

1шт.

23

K945362

CAP

- tank

1шт.

24

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

SETSCREW - 5/16 UNC x 5/8"

2шт.

25

K626682

WASHER

- 5/16" (7.938 mm)

2шт.

26

K304337

BRACKET

- support, overflow tank

1шт.

27

REF

INSTRUCTION

HOSE - radiator overflow (Order A21562 and, Serial Range: cut-length)

1шт.

A21562

HOSE,0.38" ID x 25.00"

- radiator, 40"

1шт.

28

K622023

CLAMP

- hose, 3/4"

1шт.

29

REF

INSTRUCTION

HOSE - vent (Order D94979 and, Serial Range: cut-length)

1шт.

D94979

FUEL HOSE,7.90 mm ID x 1016.00 mm, SAE 30R6 or SAE 30R7

HOSE , Vent 7.90 mm ID x 1016.00 mm, SAE 30R6 or SAE 30R7

1шт.

32

K304293

GUARD

- hose, air conditioning

1шт.

33

K627631

BUSHING

SPACER - hose guard, use with K302622

2шт.
