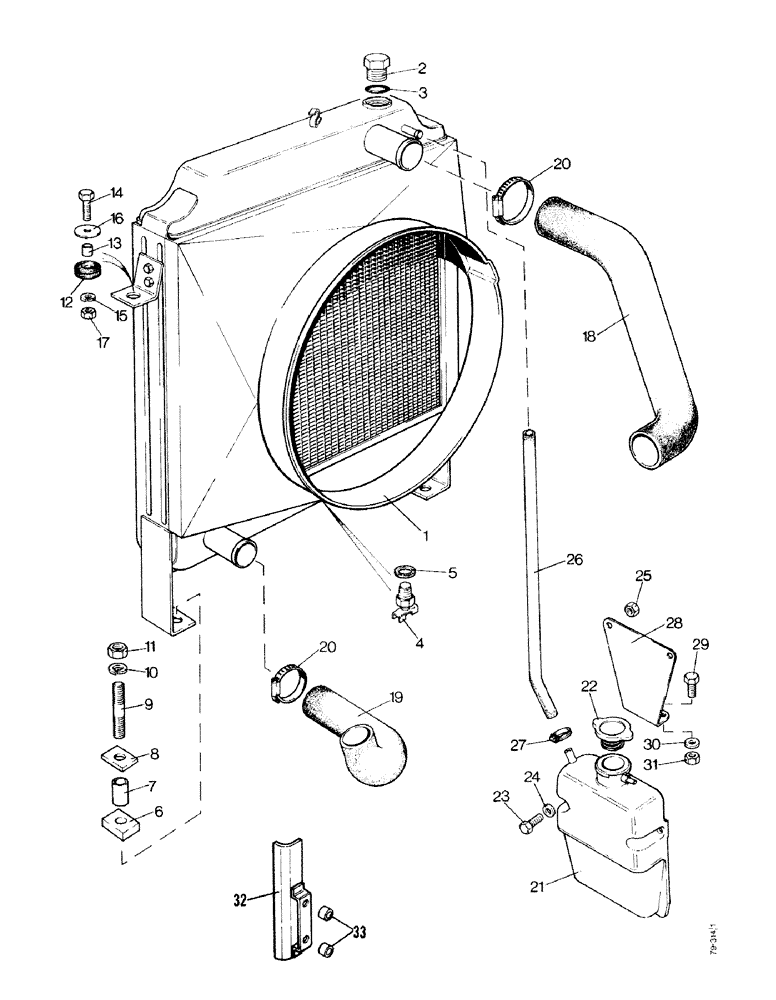

Запчасти Case IH 1490 (B01-1) - RADIATOR, PRIOR TO P.I.N. 11184061 (02) - COOLING & FUEL SYSTEMS

1

K304373

RADIATOR

- standard (Replaces K300648) Includes: Ref. 2 and 3

1шт.

1

K300635

RADIATOR

- tropical, Includes: Ref. 2 and 3

1шт.

1

K302591

RADIATOR

- tractor with air conditioning and high platform, Includes: Ref. 2 and 3

1шт.

2

K965725

PLUG

- radiator filler

1шт.

3

K965726

WASHER

- plug

1шт.

4

K622060

PLUG, DRAIN

DRAIN TAP - 1/4 BSP

1шт.

5

K19501

WASHER

FIBER WASHER - 5/8" (15.875 mm)

1шт.

6

K921836

WEDGE

PACKING - mounting bolt

4шт.

7

K203115

TUBE

SPACER - clamp

2шт.

8

K921837

SHIM

CLAMPING PLATE - radiator

2шт.

9

K608209

STUD

- 3/8 UNC x 2" (Replaces K602809)

2шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

11

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

12

K627729

GROMMET

- mounting bolt

2шт.

13

K627630

BUSHING

SPACER - mounting bolt

2шт.

14

K950630

BOLT - M6 x 25 mm

2шт.

15

K651847

WASHER, LOCK

WASHER - lock, 6 mm

2шт.

16

K627463

WASHER

- special

2шт.

17

825-1106

NUT,Hex, M6, Cl 8

- M6

2шт.

18

K201747

RADIATOR HOSE

Inlet

1шт.

19

K203350

RADIATOR HOSE,1.50" ID x 6.88", SAE J20 R4 Class D1

Outlet 1.50" ID x 6.88", SAE J20 R4 Class D1

1шт.

20

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

- 1-3/4" (44.45 mm)

4шт.

21

K300647

TANK

- overflow

1шт.

22

K945362

CAP

- tank

1шт.

23

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

SETSCREW - 5/16 UNC x 5/8"

2шт.

24

K626682

WASHER

- 5/16" (7.938 mm)

2шт.

25

9635082

NUT,5/16" - 18, Gr 5

2шт.

26

K203214

HOSE

- radiator

1шт.

27

K622023

CLAMP

HOSE CLAMP - 3/4" (19.05 mm)

2шт.

28

K301373

BRACKET

- support

1шт.

29

K602846

SCREW,5/16" - 18 x 5/8", Gr S

SETSCREW - 5/16 UNC x 5/8"

2шт.

30

K626682

WASHER

- 5/16" (7.938 mm)

2шт.

31

9635082

NUT,5/16" - 18, Gr 5

2шт.

32

K304293

GUARD

- hose, air conditioning

1шт.

33

K627631

BUSHING

SPACER - hose guard, use with K302622

2шт.
