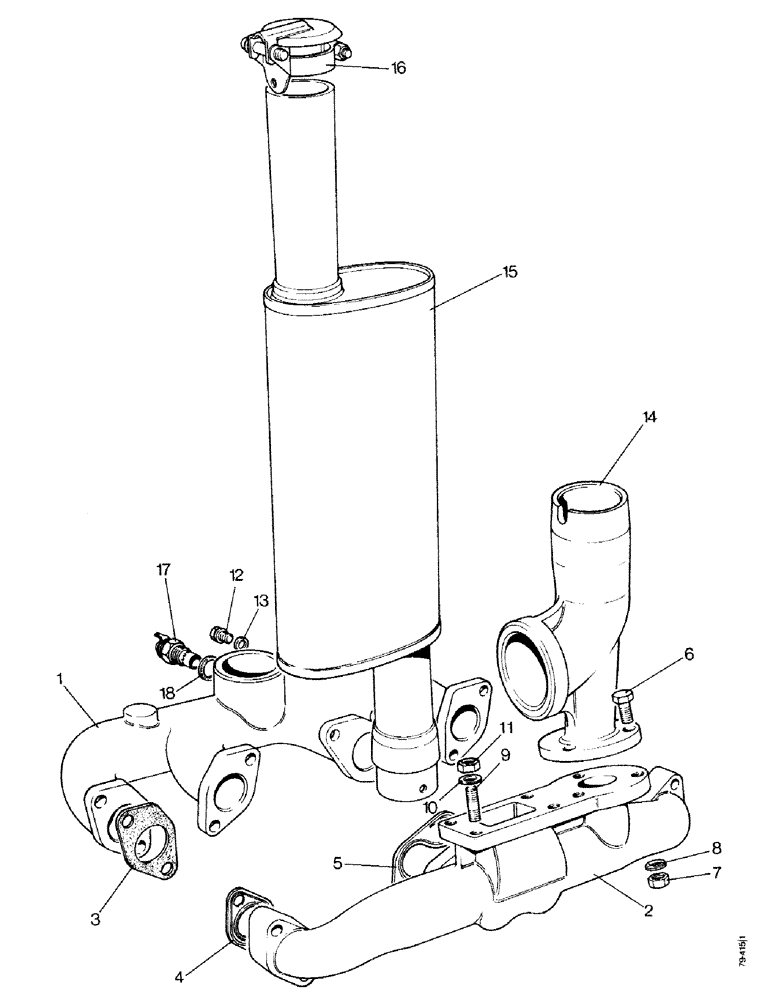

Запчасти Case IH 1490 (A11-1) - MANIFOLDS AND MUFFLER, LOW PROFILE, HIGH PLATFORM, CAB (01) - ENGINE

1

K923244

MANIFOLD

- air inlet

1шт.

2

K929728

MANIFOLD

- exhaust

1шт.

3

K921730

MANIFOLD GASKET

- inlet manifold

4шт.

4

K907344

MANIFOLD GASKET

- exhaust manifold

2шт.

5

K907343

GASKET

- exhaust manifold

1шт.

6

K602936

SCREW,3/8" - 16 x 1 1/2", Gr S

SETSCREW - 3/8 UNC x 1-1/4"

3шт.

7

280136

NUT,3/8"-16, G8

15шт.

8

K19472

WASHER

- 3/8" (9.525 mm)

3шт.

9

K608201

STUD

- 3/8 UNC x 1-5/8"

4шт.

10

K19472

WASHER

- 3/8" (9.525 mm)

4шт.

11

280136

NUT,3/8"-16, G8

4шт.

12

K19591

PLUG

- 1/8 BSP

1шт.

13

K626521

SEALING WASHER

ING WASHER - 3/8" (9.525 mm)

1шт.

14

K202516

MANIFOLD

FLANGE - exhaust

1шт.

This pipe should be blocked about 6" up in order to divert exhaust gases into the turbo.

1шт.

15

K306484

MUFFLER

(Low Profile) (Replaces K301290)

1шт.

15

K306484

MUFFLER

(High Platform, Cab) (Replaces K301289)

1шт.

Ref. 15 and 15A, use 306484 muffler.

1шт.

16

K954211

CAP

RAIN CAP

1шт.

17

K928523

GLOW PLUG

THERMOSTART - (CAV 1854102)

1шт.

18

K626957

WASHER

FIBER WASHER - 7/8" (22.225 mm)

1шт.
